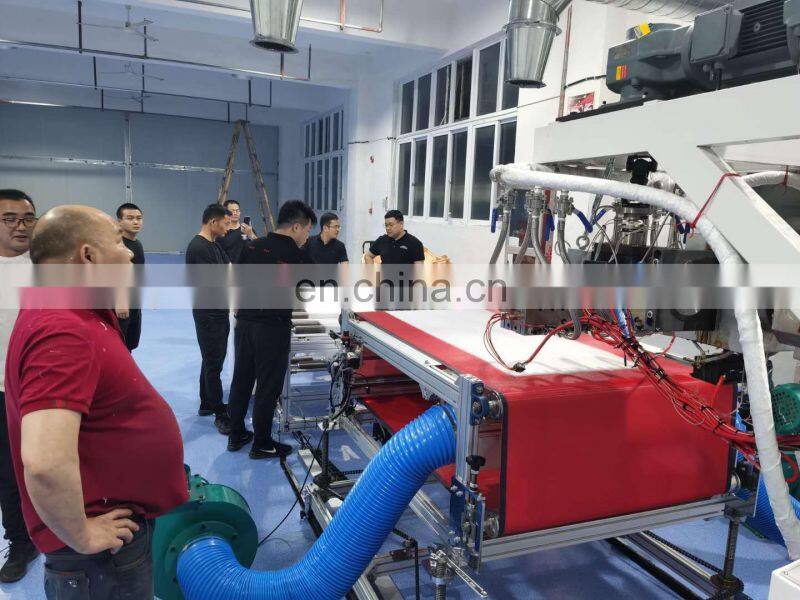

Help Center600 Type Face Mask Melt Blown Non Woven Fabric Extrusion Machine
Related Products
-
Non Woven and Plastic Shoe Cover Making Machine Low PriceUS$ 28,000 - 31,000MOQ: 1 Set -
Non Woven Cover Making Machine China SupplierUS$ 28,000 - 31,000MOQ: 1 Set
-
Non Woven Shoe Cover Making MachineUS$ 22,000 - 30,000MOQ: 1 Set
-
Plastic Shoe Cover Making MachineUS$ 14,000 - 20,000MOQ: 1 Set
-
GYT Series High Speed Flexographic Printing MachineUS$ 30,000 - 35,000MOQ: 1 Set
a:Equipped with 100KG color mixing machine for mixing raw materials and auxiliary additives.
b:Equipped with vacuum suction machine, automatically draw the agitated materials into the hopper.
c:It is equipped with a 50KG drying hopper, with a heating device to stabilize the temperature inside the hopper, and a discharge switch .
a:The reduction gearbox has the characteristics of high bearing capacity, smooth transmission, low noise, high efficiency and high life.
b:The diameter of the extruding screw is 65 screws, and the material is 38CrmoAI high-quality nitrided steel. The surface hardness is 65-70 through nitriding treatment.
c:The drive motor is a 22KW frequency conversion motor.
d:Temperature control system: The screw temperature is precisely
controlled by the Japanese RKC temperature control table, and the
cooling uses a low noise and efficient cooling centrifugal fan.
e:Screen changer: fast hydraulic screen changer, equipped with
hydraulic station, with pressure detection.
f:Metering pump: The pump body is made of high-quality alloy steel,
heat-treated, chrome-plated and polished; equipped with a pressure
control system, which can automatically adjust the running speed of
the motor and stabilize the discharge.
g:Mould:width 600mm.
h:Air heater: 40KW air heater.
a:Net curtain type collection, with an exhaust cooling system on the back, which can adjust the degree of exhaust wind.
b:Static electret: Equipped with an electrostatic protection cover, the rack can facilitate the free increase and decrease of static devices.
c:Slitting cutter: set 4 disc cutters, driven by motor.

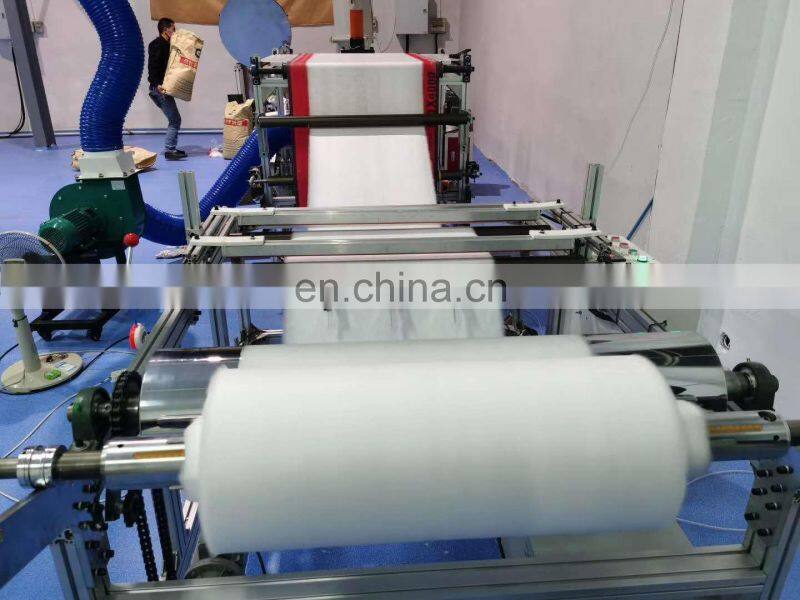

d:Rewinding roller: equipped with 2 air-expansion shafts to replace the melt-blown cloth, equipped with metering device, can start counting function, and display the current rewinding length in real time.
e:The electrical control of the winding part is controlled by PLC touch screen, and the operation is simple.
Suggested workshop space:12000*4000*4000mm,constant temperature
