offset printing plate

1,  offset printing machine adopts exact servo control system which can ensure the stabilization when the printing material in the printing process. It can Free from the printing roller change. The operation of this machine is fast, convenient and simple.

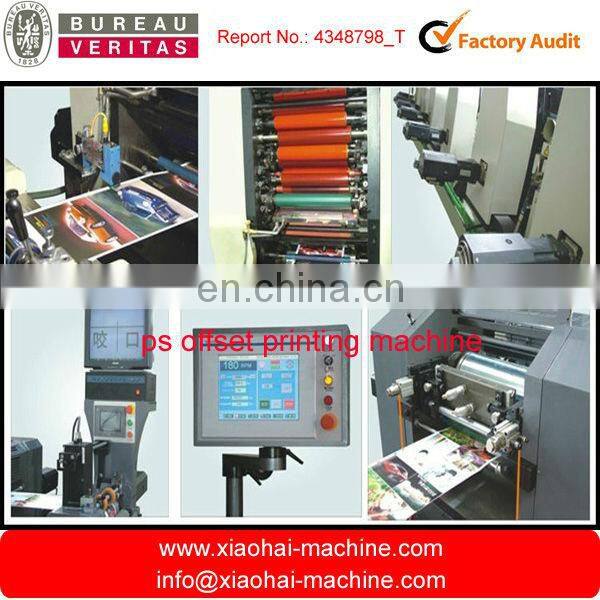

2, Pinting unit: adopting high quality and heavy offset printing unit. Assembled with 19 pieces of ink rollers4pcs of  Form Rollers and 4pieces of Water rollers(alchohol dampening system), has nice ink working system to avoid Streak trouble and Ghost image efficiently, largely increase the printing quality. The definition and precision made would never be reached by Flexo press.

3, shaftless transmission system: every printing unit transmitted by an independent servo motor, 14 sets of servo motors in total for whole machine (6color) to ensure the exact color registering precision during high speed operation.

4, Positioning system: The only work is to input the printing length on the main control panel, every printing unit will be motioned to the presetting position automatically. Largely saves time and materials when adjust the color register

5, Color registering system: the vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste). By video still system, the machine can regulate vertical & horizontal Registering without stopping.

It improves the printing quality and increases the producing capacity .

6, Super Large printing area: 300×350, the maximum perimeter could be reached at 350mm. And the running maximum speed is 63m/min. by High-precision photocells ,the machine ensures multi-register print on both side , make the possibility of label pattern variety .

7. Every printing unit equips with clutch device to be stopped independently by lifting away when needed. This system extends the machine using life

8, Multi-options: UV varnishing unit, rotary die-cutting unit are available for option, even Spot UV unit.Magnetic die-cutting cylinders adopted, on which different patterns only need to replace different flexible die plate, in-line printing and die cutting, easy operation, low cost, high performance.

9. Touch LCD screen, faster CPU, 12 inch supper large display area, powerful human-computer dialogue system, multi-guide inspection display interface, instant alarm signal, makes operation much easier, more efficient .

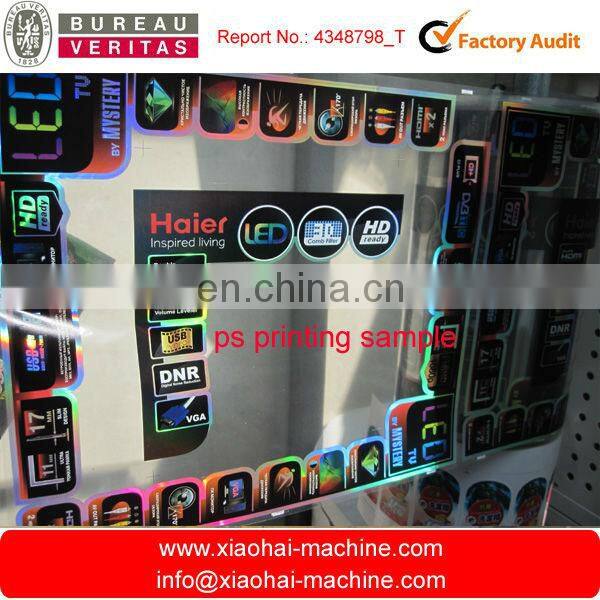

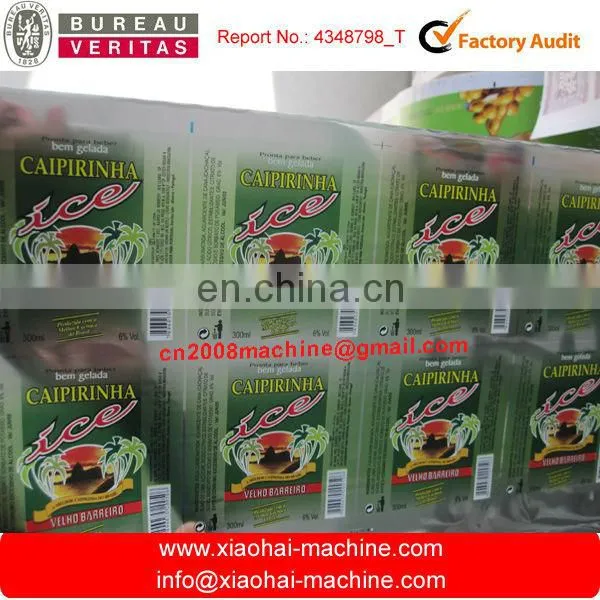

10, PS plate Intermittent printing adopted, hits the high-level demands whatever high, mid or low capacity printing task, and it is an ideal choice for print firms to produce the high-grade adhesive labels.

Printing speed

50-180 T/Min

Printing color

1-10 colors

Max.printing length

350mm

Max.web width

320mm

Max.printing width

300mm

Max. unwinding diameter

600mm

Max. rewinding diameter

600mm

Power supply

3 phase 380v

Total power

33.6kw (without uv power )

Main machine size

8850mm x 1600mm x 1850mm (L x W x H)

Main Machine weight

About 9.5t
