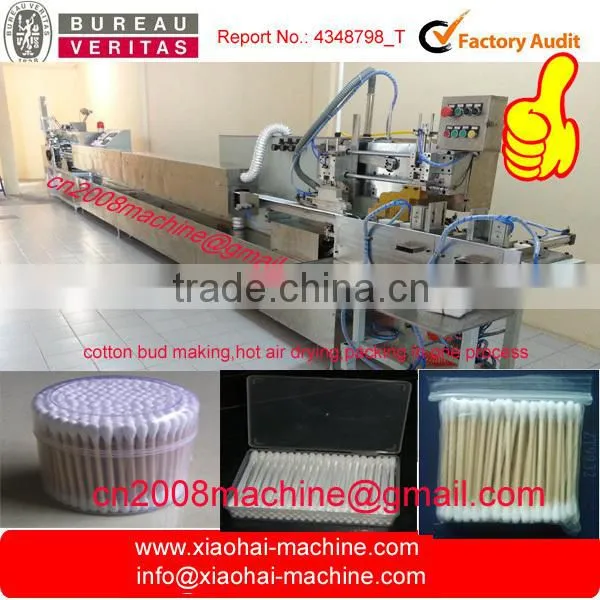

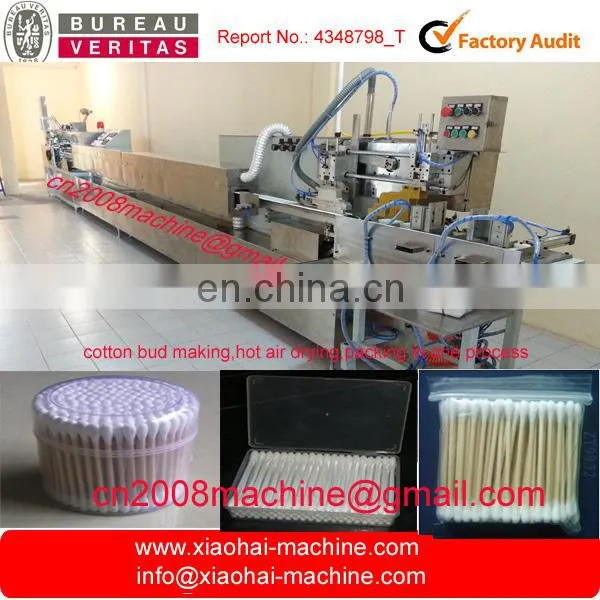

♣ Full automatic cotton buds machine
( bud swab,hot air drying,packing in one step)
Usage:
1.Widely used in cotton swab production.
2.The cotton swab size is adjustable.
3.This equipment is making and packing all-in-one machine.It is with dryer part and packing part.
Features :
1.Use of PLC control,the best drying way,hot air technology.
2.The cotton swab drying in the process of production, uses vacuum suction manipulator for automatically packing.The machine can achieve a series of production process: From put into cotton strip,broken cotton strip,cotton swab molding, drying, packing
3.The enquipment save production time,save human resources(only needs one worker), thus it improves production efficiency of the manufacturer.It is avoid unsanitary and inaccurate
4.It is fit for automatically packing different square box,plastic bag,round tin ect.Based on different packaging,packing jig and type is also different.
5. It can produces medical cotton swab, make up cotton swab and baby cotton swab.
6. Robotic arm to catch and order the cotton buds ,put cotton buds into box or bag by hand

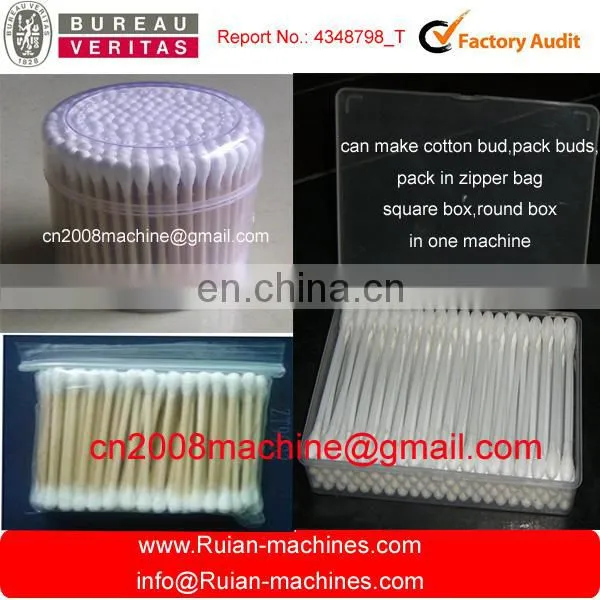

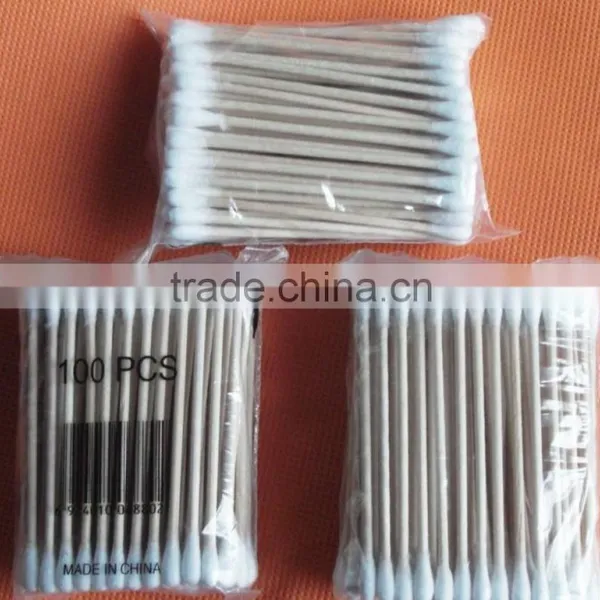

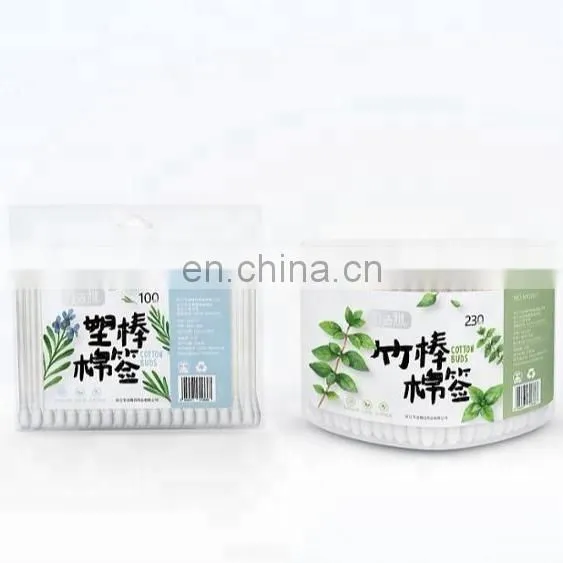

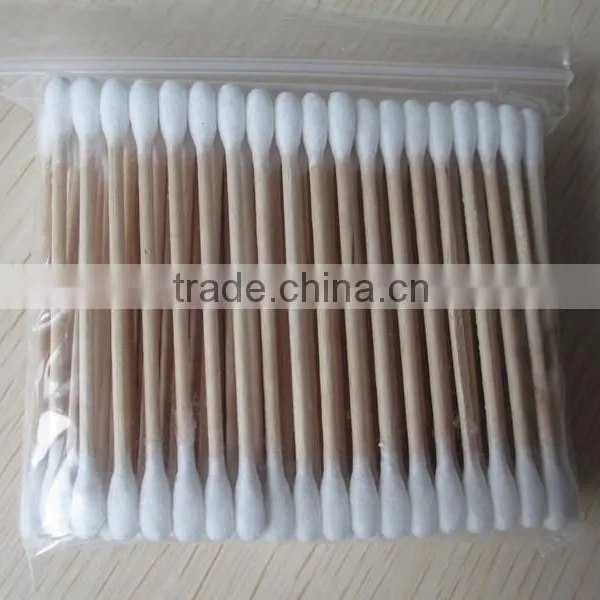

7. make different kind of presentation: plastic bag,box. Round plastic container square plastic container.
Model: CQZ-1
Plastic stick:800 – 1100pcs/min
Paper stick: 800 – 900pcs/min
Wooden stick:700-800pcs/min
Bamboo stick:800 – 900pcs/min
Model: CQZ-2
Speed: 1200-1600pcs/min for plastic stick, paper stick (waste 0.3%)
1200-1400pcs/min for bamboo stick (waste 1%)
1000-1100pcs/min for wood stick (waste 1%)
Main Technology parameter:
Drying Power |
8kw (by hot air) |
Total power |
14kw,380v 3phase (220v need customize) |
weight of machine |
2.5T |
Size of machine |
9.5x1.0x1.4m |
Shape of cotton buds |
single head ,double head. |
Stick type: |
plastic stick, paper stick, wooden stick, bamboo stick |
Cotton strip |
1.5g |
Packing type |
zip-lock bag Round box square box cardboard box |
