Automatic Roll Paper Feeding Die Cutting Machine for Paper Cup With Wooden Mould
US$ 22,000 - 27,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
xiao hai
Place of Origin:
Zhejiang, China
Model Number:
MQ-850
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Tinplate Cover Making Machine Tinplate Ends for 502# 401# 307# 300#US$ 9,900 - 10,700MOQ: 1 Set -
Disposable Embossed Aluminum Foil Lids Punching Machine for Yogurt CupUS$ 1 - 2MOQ: 1 Set
-
Beer Label Embossing MachineUS$ 1 - 2MOQ: 1 Set
-
Die Cutting Machine for Paper CupUS$ 25,000 - 25,000MOQ: 1 Set
-
Paper Cup Punching Machine With Wooden Cutting DieUS$ 25,000 - 25,000MOQ: 1 Set
Brand Name
xiao hai
Place of Origin
Zhejiang, China
Model Number
MQ-850
Certification
ISO9001
Type
Paper Cutting Machine
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year for die cutting machine
Weight
2100KGS
Dimension(L*W*H)
3000*1786*1920mm
Condition
New
Voltage
220V/380V
Computerized
Yes

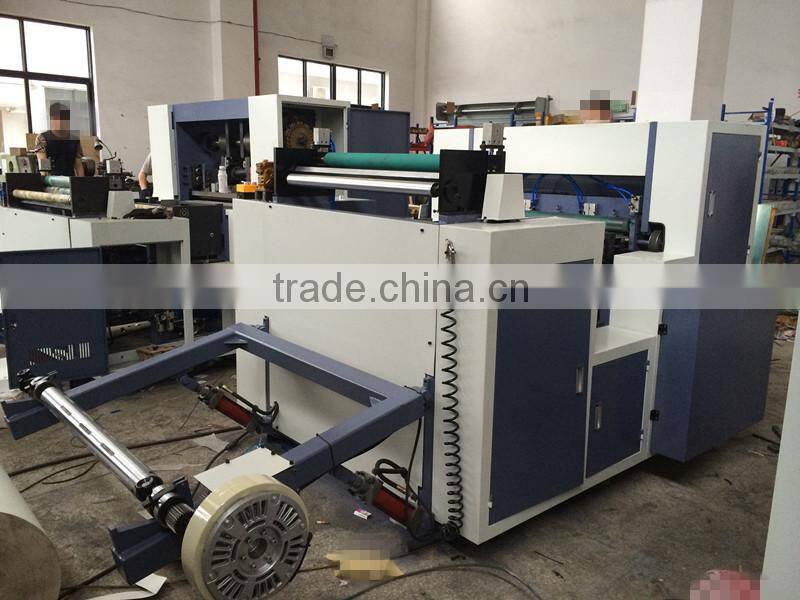

Automatic roll paper feeding die cutting machine for paper cup with wooden mould
Product Description
- 1. Machine operation controlled by PLC, easy operation touch screen
- 2. Paper feeding is roll type,servo motor and cluth control,with photocell
- 3. Can used for all kinds of paper and pe coated paper,aluminum,paper box etc
- 4. Material can be with printing or without printing
- 5. Die cutting max size 850x283mm ,if you have more big size,contact us
- 6. Cutting mould is flat type die cutting mould,wooden mould is cheap.
Model | MQ-850 |
Cutting style | Flat to flat die cutting (for roll paper) |
Speed | 160-200 cuts/min (12000 times per hour) |
Max Paper width | 860mm |
Min paper width | 100mm |
Max Die cut size | 850mm*283mm |
Suitable paper | 120-600gsm |
Control system | AC servo motor |
Max cutting pressure | 2000N/cm³ |
Degree of automation | Full automatic |
Stamping form | Flaten press |
Machine size | 3000*1786*1920mm |
G.W. | 2500kg |
automatic die cutting machine for die cutting roll paper ,it is a good partner for printing machine.
