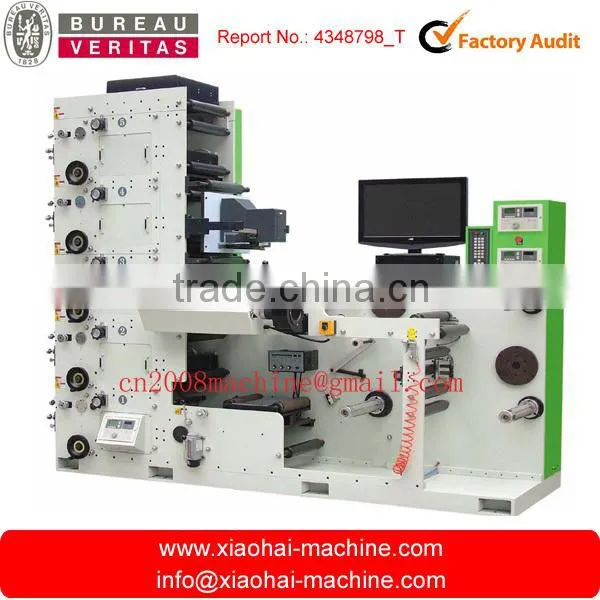

ZBS-320 Automatic 5 Colors Label Flexo Printing Machine
- ningbo
- T/T Credit Card
You May Like
-
IR UV 2 4 6 Colors Three 3 Layer Logistics Express Adhesive Label Sticker Printing Machine
-
2016 HAS VIDEO IML Sticker Label Die Cut Flat Bed Machine With Punching, Hot-stamping ,laminating
-
2016 HAS VIDEO UV IR Die Cutting,Cold Stamping Flexo Adhesive Label Sticker Printing Machines
-
HAS VIDEO In Mold IML Label Die Cutting Machine
-
New Type 4 Color Flexo Thermal Paper Roll Printing Machine
-
HAS Video Sticker Label Die Cutting Machine From Roll to Sheet or to Roll With Hot Stamping,hole Puncher
Product Details
| Brand Name | XIAOHAI | Place of Origin | Zhejiang, China | |
| Condition | New |
wooden case.
Product Description

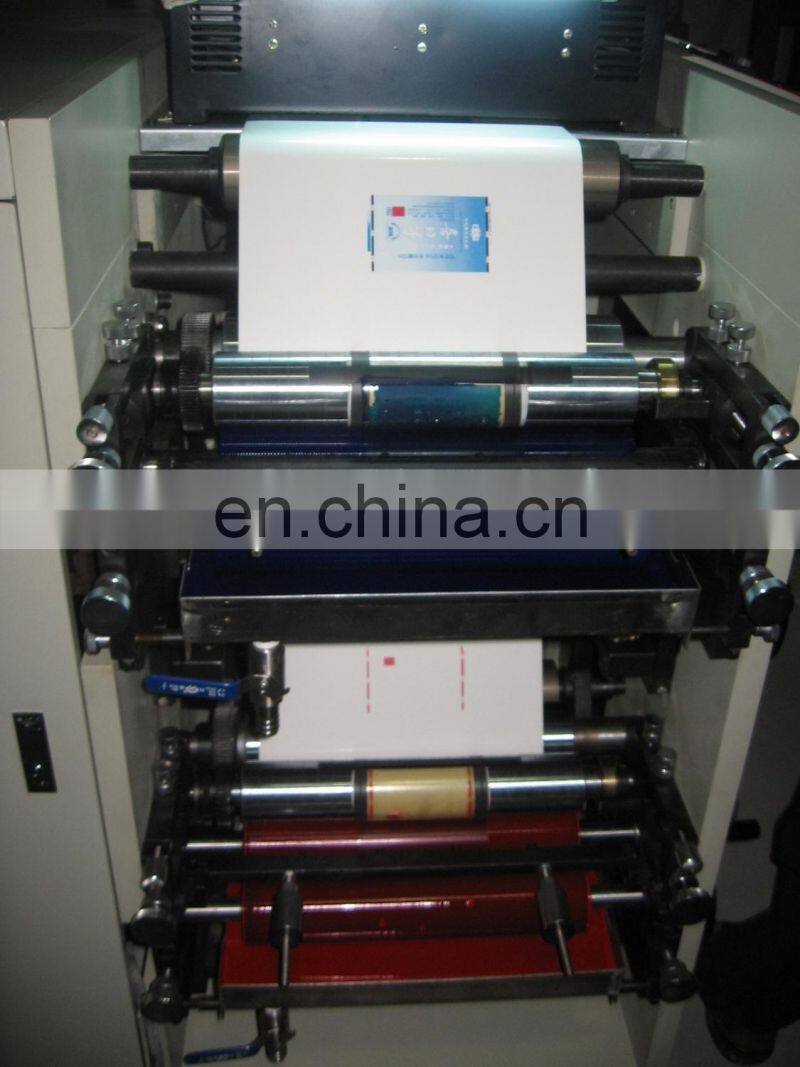

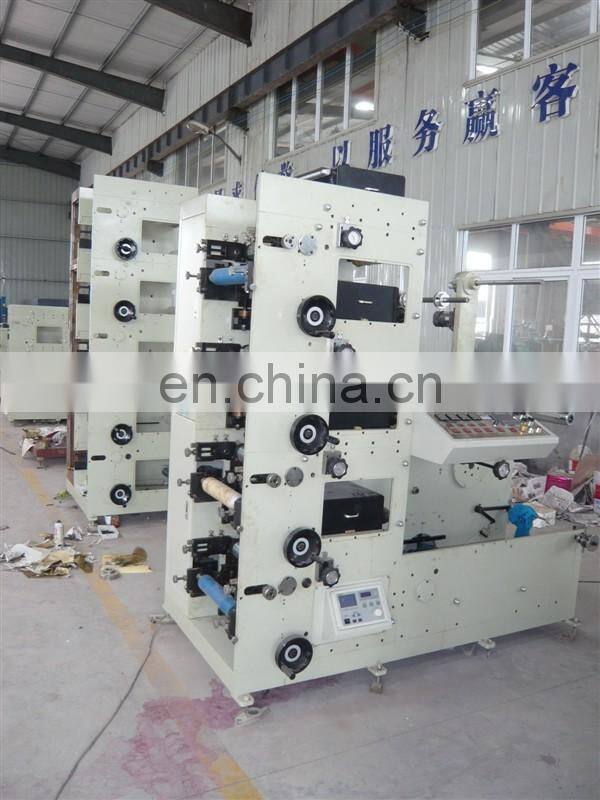

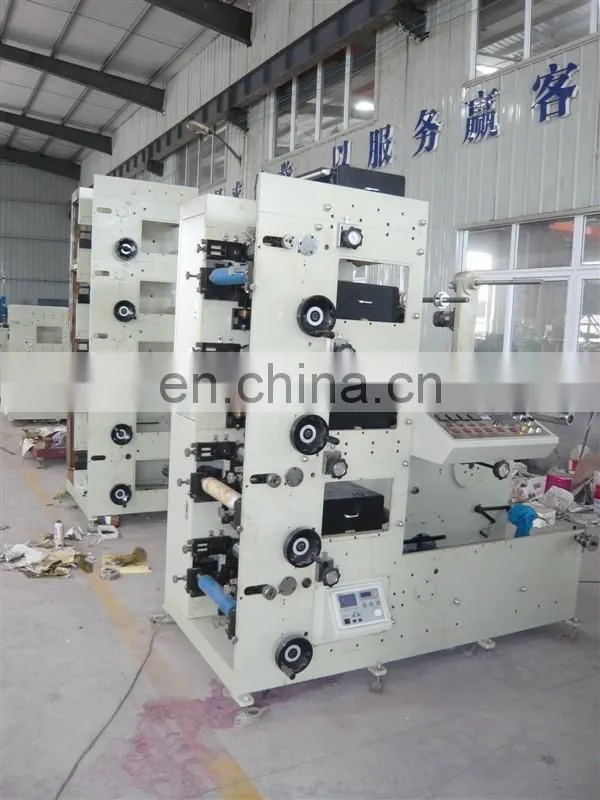

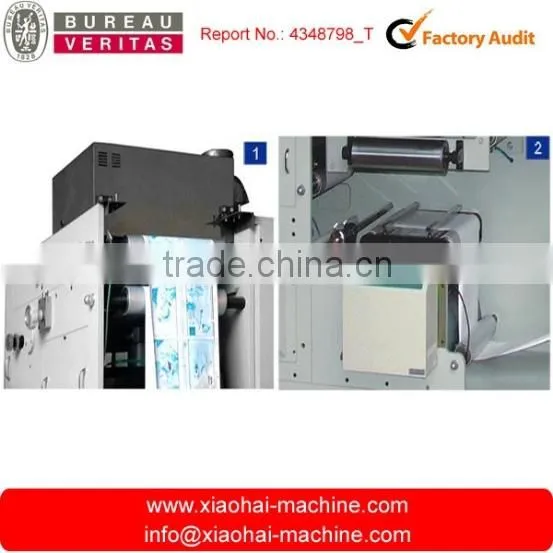

ZBS-320 5 colors label flexo printing machine
Flexo printing machine is used for printing roll paper,roll coated paper and plastic film etc material.
It is idea equipment for printing the label.
Features:

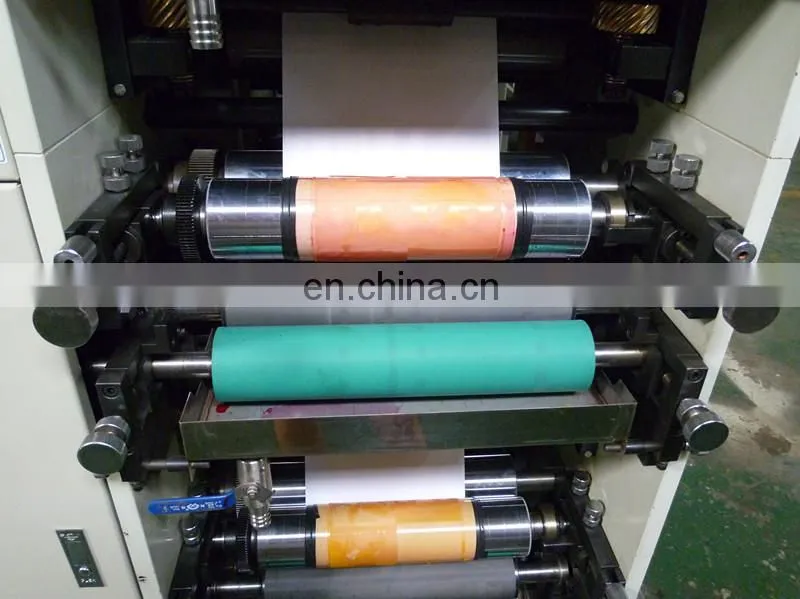

1, Adopt the ceramic anilox cylinder to transfer the ink.
2, Unwinding and rewinding tension are auto-controlled by tension controller.
3, Each printing unit adopts 3600 plate-adjustment.
4, IR dryer (hot air type) for each printing unit. (UV dryer is for option)

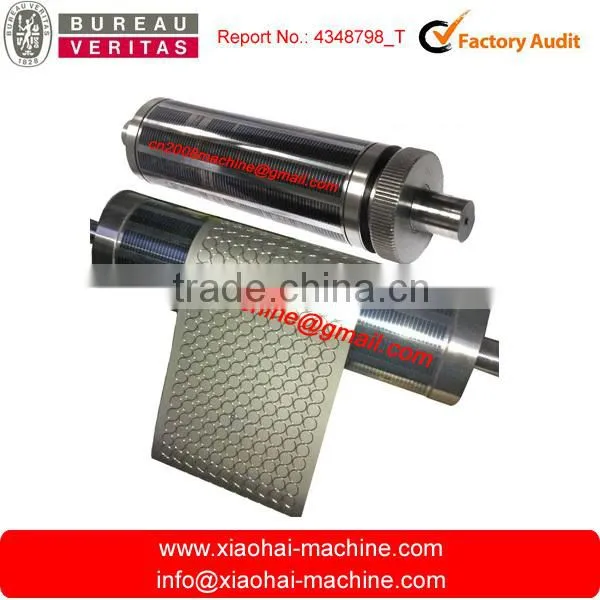

5, This machine has one die-cutting station, and it can make printing and die cutting finished in one process.
6, The ink rollers will be separated from the printing roller, keep running when machine stopped.
7,The machine can finish material-feeding, printing, varnishing, drying, laminating, die-cutting and rewinding in a lump. It is an ideal machine for printing note and top-grade adhesive label.
Main parameters
Printing speed | 50m/min |
Printing color | 5colours |
Max. width of paper | 320mm |
Max .printing width | 310mm |
Max. unwinding diameter | 600mm |
Max. rewinding diameter | 600mm |
Printing length | 177.8-355.6mm |
Precision of chromatography | ±0.1mm |
Dimensions | 2.25mX1.35m X2.8m (without UV dryer) |
Machine weight | About 3800kg |
Power supply | 380V, 3P, 50/60Hz |
Sticker Label Production Line:
- 1. Sticker Label Flexo printing machine
- 2. Label Die cutting machine to be sheet or to be roll Flat bed
- 3. Rotary Label Die Cutting Machine
- 4. Label roll to roll slitting and rewinding machine
- 5. Label Slitting and rewinding machine with die cut funcation
- 6. Label Inspection Machine
- 5. Flexo Plate Making Machine For Printing Machine
- 6. Flexo Cylinder Plate Mounter Machine
- 7. Anilox Roller Ultrasonic Cleaning Machine
- 10. Label adhesive Coating Machine
- 11. IML Label Die Cutting Machine
- 12. PS Label Printing Machine
