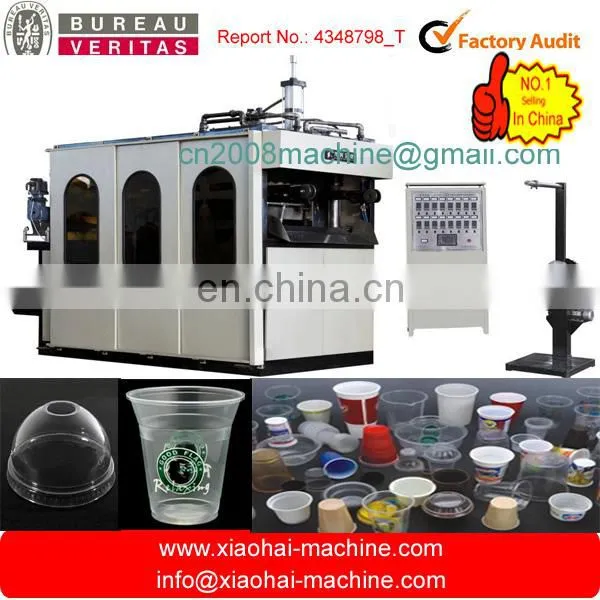

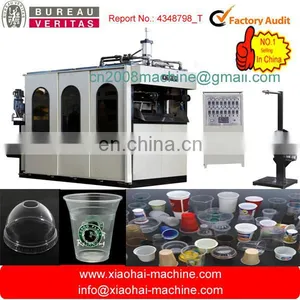

Our thermoforming machine can produce any size of plastic bowl,drinking cup,plate,ice cream cup,yogurt cup,tray and so on,just by change mould.
Main technical parameters:
|
Sheet Materials |
Hard Sheet PP.PS.PVC.ABC |
|
Sheet Width |
400-630mm |
|
Sheet Thickness |
0.25-2.5mm2 |
|
Max.forming Area |
620×300 |
|
Max.forming depth |
160mm |
|
Max.height of cup |
120mm |
|
Forming Pressure |
0.4-0.8mMpa |
|
Productivity |
420 pcs/min 25-35(stroke/min)(14 pieces per stroke) |
|
Rated Heating Power |
55kw |
|
Starting Power |
7.5kw |
|
Total Weight |
4.5(ton) |
|
Water Temperature |
30 |
|
Overall Dimeensions |
3000 × 1800 × 2500mm3 |
|
Travel Length Adjustable |
100-400mm |
The machine parts of our thermoforming machine adopt import famous brand,such as: German FESTO,German Schneider,Japan CKD,Japan FuJI,France DENISON,Korea LG and so on. Our machine has longer using life, high precision and stable performance.
we also have production line:
1.MX-700L plastic sheet extruder:use to produce PP,PS sheet from raw material.
2.CK660-B thermoforming machine:feeding PP,PS sheet in this machine to produce cups,plates and other plastic container.
3.curling machine:curling the edge of cup. It’s according to your sample.
4.cup stacking machine:use to stack the cup automatically. also you can choose worker to stack the cups.
5. F650 grinder/crusher: it is used for recycle the waste sheet.
6.Mixer: mixing the new material and the recycle material
oling tower: the sheet extruder MX-700L and MX660-B thermoforming machine running need the cool water for working.
8. Plastic cup lid making machine: use to produce cup lid.
9.cup printing machine:use to print picture/design on the cup.
10. counting and packing machine:use to counting and packing the cup in plastic bag. also you can choose worker to count and pack the cups.
11. Air compressor:extruder and thermoforming machine and stacking machine running need the air for working.
