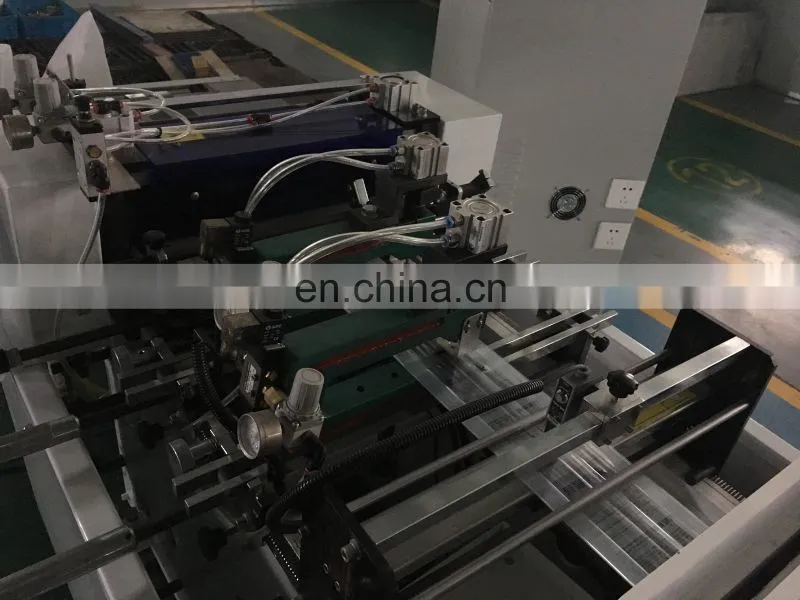

Help Center3 Sides Sealing Bag Making Machine ( With Central Sealing Function )
Related Products
-
HDPE LDPE Flat Open , T-shirt Shape Rolls Garbage Bag Making MachineUS$ 6,500 - 6,500MOQ: 1 Set -
Cheap Price Full Automatic Back Central Sealing Bag Making Machine For Coffee Bag, SnacksUS$ 9,000 - 15,000MOQ: 1 Set
-
Water Bag Making MachineUS$ 32,000 - 32,000MOQ: 1 Set
-
Plastic Bag Production Line Include Film Extruder,flexo Printing Machine,bag Making MachineUS$ 1 - 2MOQ: 1 Set
-
DZB Series Double Lines Rolling Refuse Bag Making MachineUS$ 1 - 2MOQ: 1 Set
Three Side Sealing bag making Machine
1. Machine Type: sealing. Trilateral closure, double servo, dual-frequency models (with 10 true color Panasonic PLC) touch screen plc
2. Equipment and Materials: BOPP, CPP, BET, nylon and plastic complex, laminated film, multi-layer co-extruded film, aluminum complex, laminated film.
3. Bag making beats: 170 beats / min
Normal bag-making time: 130 beats / min
4. Highest discharge line speed: ≤ 36m / min
5. Bag size:
Width of 60mm-400mm
Length :10-400mm (multiple conveyances)
6. Seal width :5-60mm
Bag types: three bags in sealed.
7. The maximum size of the reel: diameter 600 * 800
8. Positioning accuracy: ≤ ± 1 mm
9 Closure hot knife: longitudinal heat sealing of the three groups, the longitudinal cooling mechanism of the three groups, three groups of transverse heat seal, a set of transverse cooling mechanism, two integer hot knife.
10. Thermostat setting range: room temperature 3603
11 Total power: 30kW
Color: main body black, apple green cover
13 Noise ≤ 75dB
Second, the machine configuration and related parameters

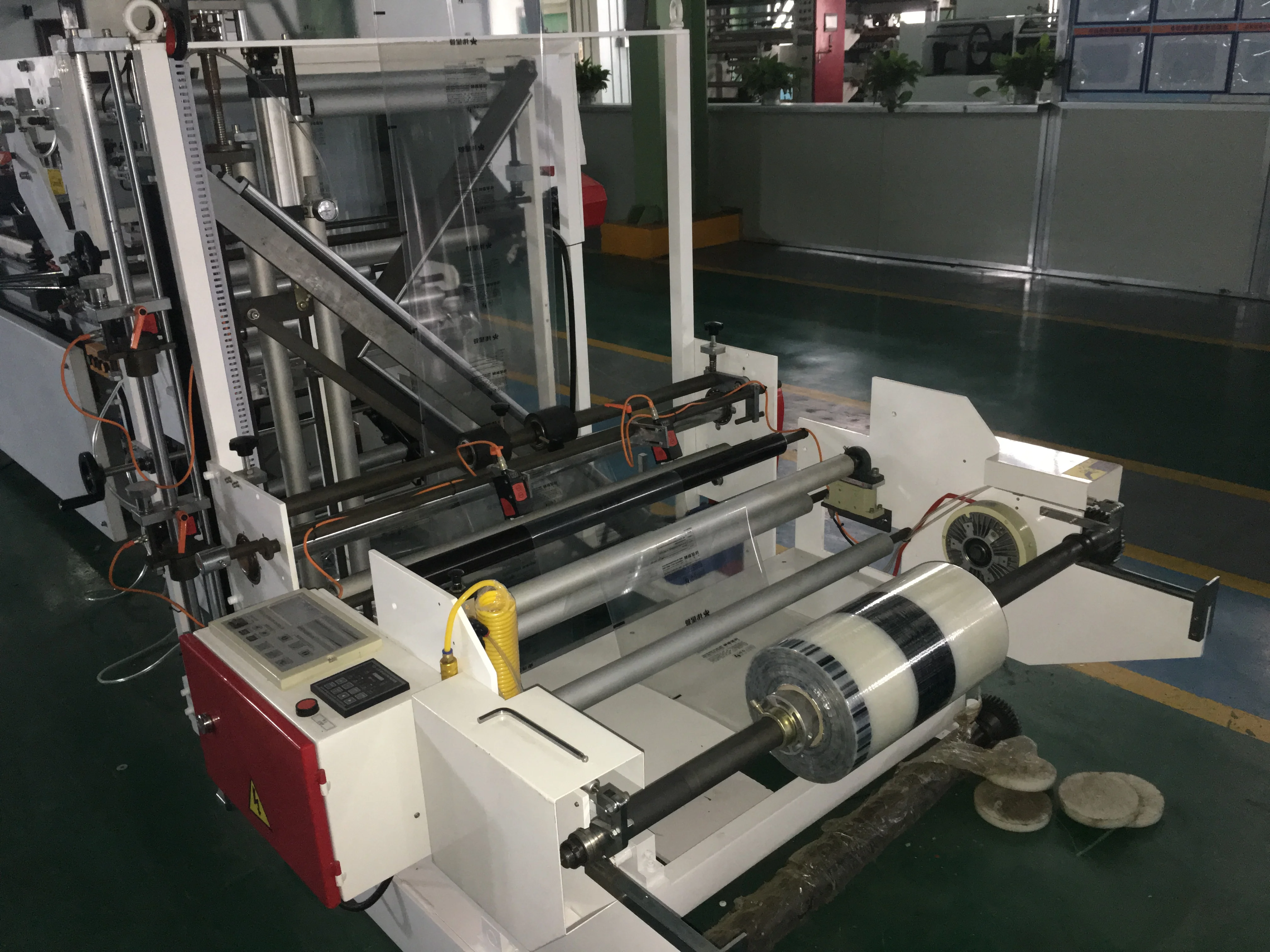

1. Unwinding rack devices: structure: vertical automatic correct side discharge institutions
a. Unwinding tension control: (1) magnetic brakes brakes, active traction mechanism (2) discharge, (3) Control mode: floating the pendulum displacement sensor to locate the unwinding speed, (4) steam up the shaft axis, automatic feeding systems.
b. Correct side of institutional control: (1) Structure: screw adjustment K-frame vertical lift (2) drive: solid state relay drive with low-c. Step motor (3) Transmission: steel coupling connection (4) forms of control: reflector shaped electric sensor detection, d. Independent control (5) tracking accuracy: 0.5mm (6) adjustment range: 150mm
(1) Driver: vertical movement of the main motor-driven eccentric mechanism link
(2) Quantity: 3 groups of vertical heat-sealing, cooling 3 groups
(3) hot knife length: 8000mm

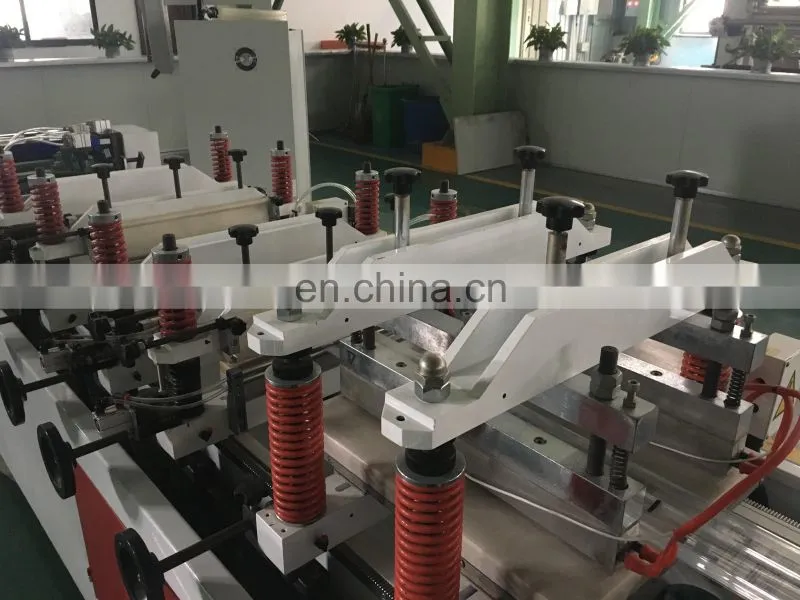

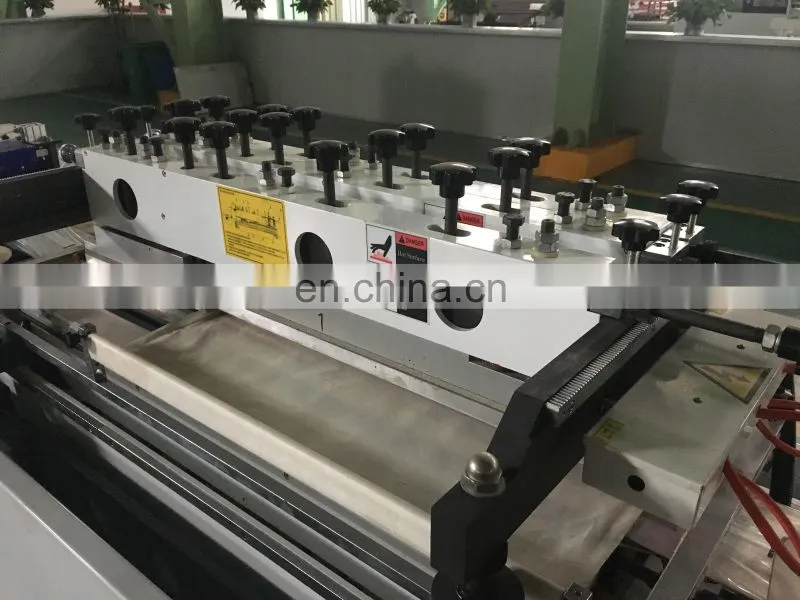

3. Horizontal sealing device
(1) Structure: horizontal arrangement of the hot pressure assembly spring pressure structure, the cooling assembly
(2) Drivers: vertical movement of the main motor-driven eccentric mechanism link
(3) Quantity: heat-sealing groups, cooling a set of the integer two groups of 320 long.
(4) Length: 420mm
4 films traction device
(1) Structure: rubber roller lamination friction
(2) Drivers: double servo system 2 sets
(3) Transmission: Timing and Synchronization round
(4) forms of control: centralized computer control,, synchronous length and intermediate tension control
5. Intermediate tension
(1) Structure: the floating tension roller structure
(2) forms of control: computer centralized control
(3) control mechanism: the floating tension roller sports complementary trend the intermediate servo control step size to achieve the same stop with the ultra-
(4) Detection mode: the electromagnetic proximity switch (NPN)
(5) the tension adjustment range :0.1-0 .2 mm (computer settings, automatic complementary)
6. Main drive
(1) Structure: crank rocker push-pull rod structure
(2) Drive: inverter drive 2.2KW three-phase asynchronous motor ()
(3) Transmission: main drive motor with 1:13 gear reducer (joint venture)
(4) forms of control: computer centralized control
(5) Exercise: Main motor operation, driven framework for vertical movement up and down
7. Automatic positioning device
(1) Detection mode: reflective photoelectric sensor tracking and detection
(2) the detection accuracy :0.01-0 .25 mm
(3) positioning accuracy: ≤ 0.5-1mm
(4) Optical search range: ± 3 mm
(5) to correct compensation range: ± 3 mm
(6) positioning correction method: servo track of the current compensation with the photoelectric automatic shift correction system
8. Temperature control means
(1) figure out a way: Thermocouple Detection
(2) Control mode: intelligent temperature control, PID control, solid state relay driver
(3) Temperature range: room temperature 0-300 °C
(4) measurement points: Electric Heating the middle of the block
9. Cutter
(1) Structure: Cutter + adjustment device + fixed under the knife
(2) forms: spring shears
(3) Main Drive motor, eccentric mechanism moves up and down
(4) Adjustment: horizontal movement (both ends)
10. A curling machine
11 punching device
(1) Structure: bow seat support pneumatic machinery-oriented public mode impact structure
(2) forms of control: computer centralized control
(3) Drive: solid-state relay driver solenoid valve
(4) punching Block: basic configuration
(5) Cylinder: AirTAC
(6) Mold: 6mm round 2 sets

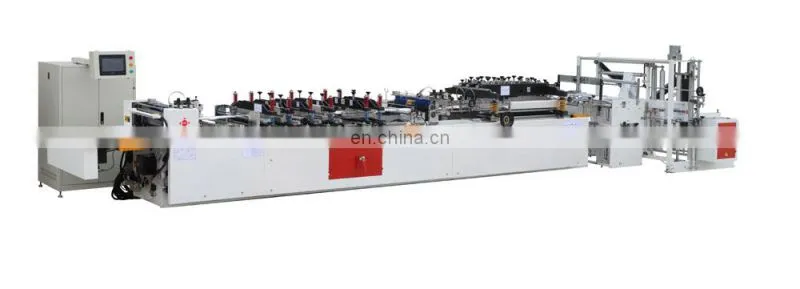

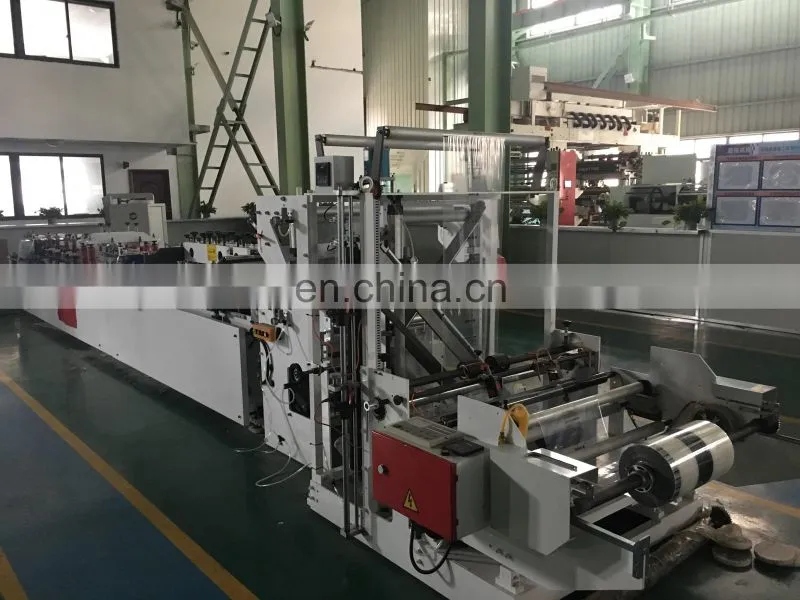

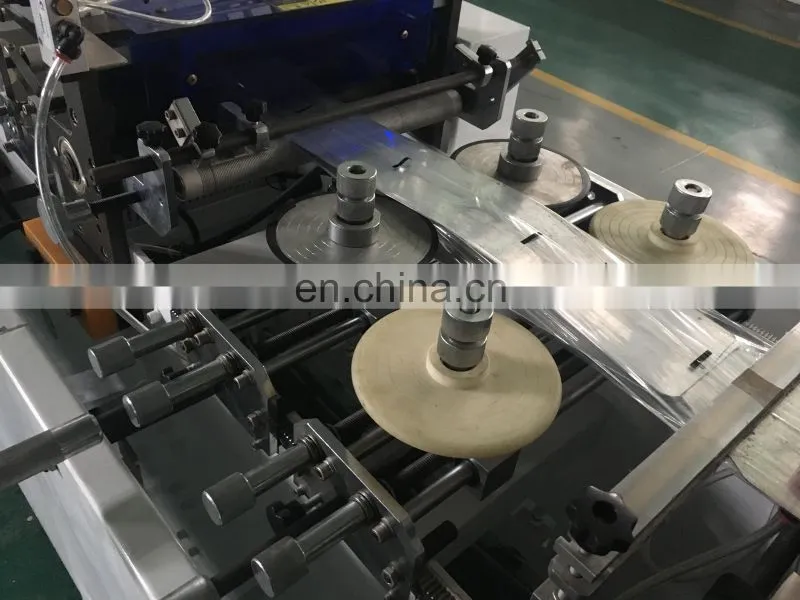

More machine pictures:
Sample pictures:
