HAS VIDEO HDPE LDPE Extruders for Plastic Film
- ningbo
- T/T Credit Card
You May Like
-
Kesai Original Printing Color-con Mark Sensor for Printing Machine
-
All Kinds of High Precision Pneumatic Handle Hole Puncher Device for Hand Bags
-
HAS VIDEO PE PP BAG Film Waste Plastic Recycling Machine
-
AOYI Single Phase DC Solid State Relay 40A 10A 25A
-
Foto Electric Eye Sensor Ketai Kt-bg22
-
Start From Granule for Plastic Bag Production Line
Product Details
| Brand Name | XIAOHAI | Place of Origin | Zhejiang, China | |
| Model Number | SJ-A | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
wooden case
Product Description

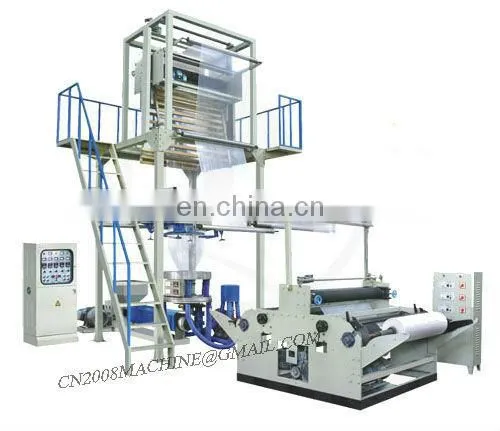

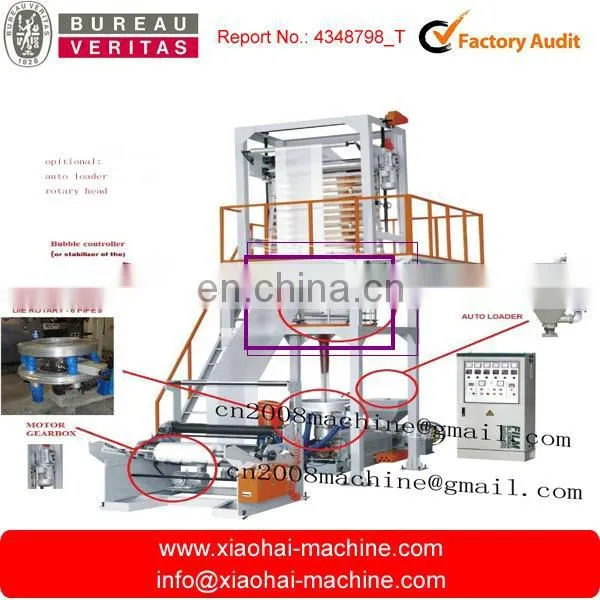

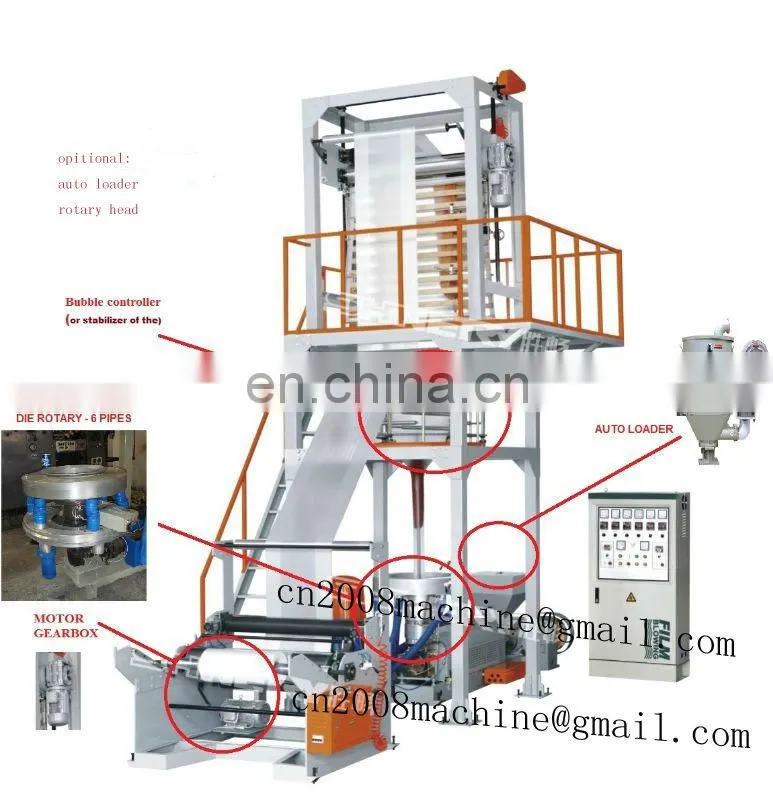

HAS VIDEO new type blown film extrusion machine
film blowing machine, film blown machine, film machine,plastic film blowing machine, pe film blowing machine, blow film machine
Machine Name: film blowing machine set
Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.
2.The film is widely used for packing bag,such as T-shirt bag, shopping bag, clothing bag, garbage bag and agriculture covering film etc.
SJ-B Series is the machines with double rewinder and rotary head.
SJ-A Series is the machines with single rewinder and without rotary head
also you can indicate the device you want
Specification:
Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.
2.The film is widely used for packing bag,such as T-shirt bag,shopping bag,clothing bag,garbage bag and agriculture covering film etc
Specification:
Model No. | SJ-A50 | SJ-A55 | SJ-A60 |
Screw Diameter | 50mm | 55mm | 60mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Max.Folding Width of Film | 600mm | 800mm | 1000mm |
Single Side Thickness of Film | 0.008-0.08mm | 0.008-0.08mm | 0.008-0.08mm |
Power of Main Motor | 11KW | 15KW | 18.5KW |
Output | 30kg/h | 40kg/h | 50kg/h |
Total Power | 18Kw | 22Kw | 26Kw |
Weight of Machine | 1500kg | 1800kg | 2100kg |
Dimension(mm) | 4800x1800x3600 | 5000x2000x4000 | 5200x2200x4400 |
Model No. | SJ-B50 | SJ-B55 | SJ-B60 |
Screw Diameter | 50mm | 55mm | 60mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Max.Folding Width of Film | 600mm | 800mm | 1000mm |
Single side thickness of Film | 0.008-0.08mm | 0.008-0.08mm | 0.008-0.08mm |
Power of Main Motor | 11KW | 15KW | 18.5KW |
Output | 40kg/h | 50kg/h | 60kg/h |
Total Power | 22Kw | 26Kw | 30Kw |
Weight of Machine | 2000kg | 2300kg | 3000kg |
Dimension(mm) | 5700x1800x3600 | 6000x2000x4000 | 6500x2200x4500 |
see the process:

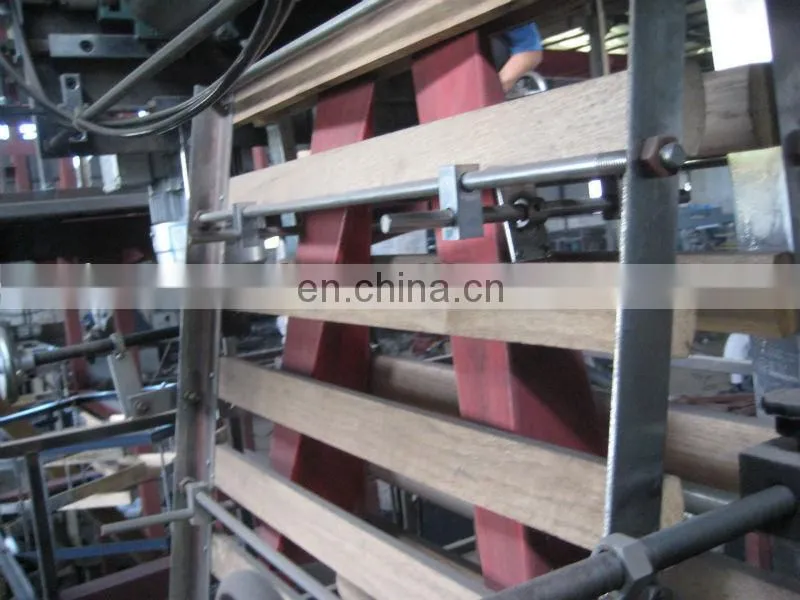

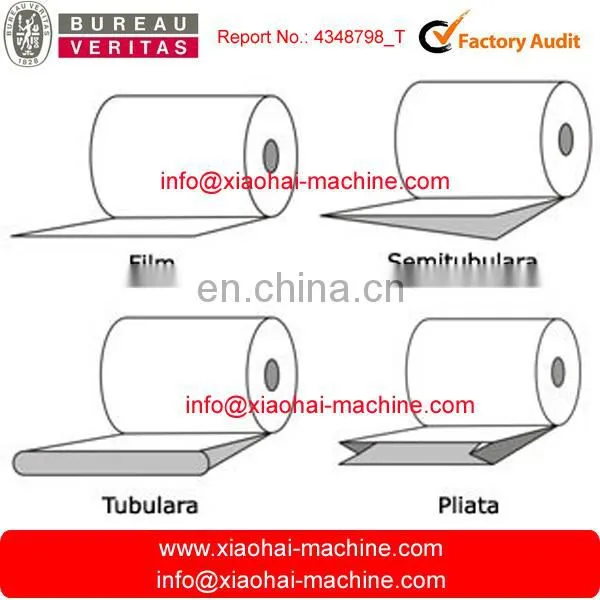

This is the gusset to make the edge fold

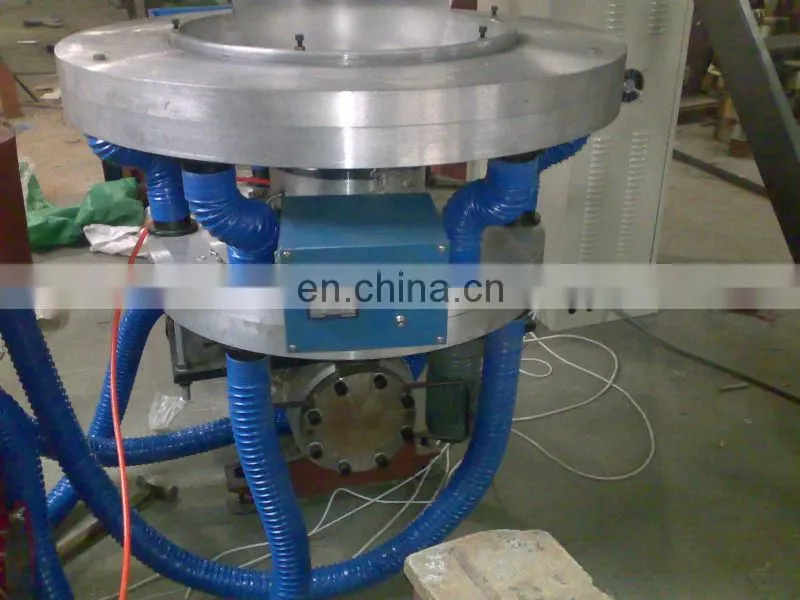

the rotary head:
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
