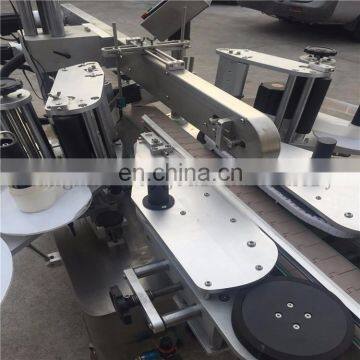

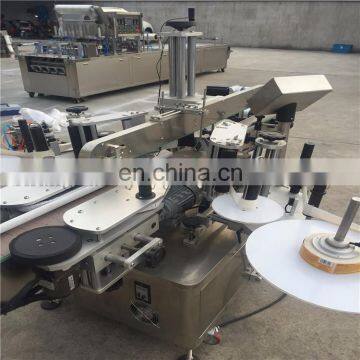

automatic single side round bottle labeling machine
- Shanghai port
- T/T Credit Card
You May Like
-
JOYGOAL Automatic flat bottle labeling machine on front and back sides
-
JOYGOAL New product 2017 motor tnn high speed labeling machine
-
Factory outlet Cooking oil/spaghetti sauce bottle labeling machine
-
Factory outlet beer / White Wine bottle labeling machine
-
Factory outlet Chili sauce/jam bottle labeling machine
-
Factory outlet labeling machine for Rose tea bottle
Product Details
| Brand Name | JOYGOAL | Place of Origin | Shanghai, China | |
| Model Number | TBY-200 | Certification | CE Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 320kg | |
| Dimension(L*W*H) | 3000*1500*1700mm | Voltage | 380V/50HZ | |
| Power | 3KW | Application | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | |
| Condition | New | Automatic Grade | Automatic | |
| Driven Type | Electric | Packaging Material | Glass, Metal, Paper, Plastic, Wood | |
| Packaging Type | Bottles |
Wooden case for single side round bottle labeling machine
Product Description
Labeling machine head octuple space adjustment, the angle can be adjusted freely, easy to paste a variety of difficult and transparent label; high elastic sponge scraper and nonpowered round extrusion,
to ensure that no air bubbles; mechanical structure of machine uses an enhanced rigid design , Simple, generous and stable.
Specification:
1. adopt mature PLC control system technology, make the whole machine stable and high-speed
2. adopt touch screen control system,make opreation simple, practical and efficient
3. advanced pneumatic code system technology, make the printed letter clear, fast and stable
4. wide application, adapted to various sizes of round bottles
5. roll extrusion bottle, so the labels attached more solid
6. production line is for optional,also turntable is optional for collecting,sorting and packaging
Technical parameters:
Model | TBY-200 |
Yield capacity(bottle/min) | 40-250bottles/min |
Standard label speed(m/min) | ≤30 |
Label accuracy | ±1mm error |
Applicable label specification | Glassine paper, transparent or opaque |
Dimension(mm) | 2000(L) × 950(W) × 1260(H) (mm) (Adjustable) |
Label roll(inside)(mm) | 76mm |
Label roll(outside)(mm) | £300mm |
Weight(kg) | 180kg |
Power(w) | 1.2KW |
Voltage | 220V/380V ,50/60HZ,single/three phase |
Relative temperature | 0 ~ 50 |
PACKAGE:
Standard wooden case
DELIVERY TIME:
20-40 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Shanghai Joygoal Food Machinery Co.,Ltd is a company integrating scientific research, manufacturing and service and specializing in manufacturing coffee capsule filling sealing machine, pouch filling capping machine, cup filling sealing machine,labeling machine,water treatment.The product are sold well at home and abroad.
24 hours online service
Enquiry will be replied in 2 hours
One year warranty
1%-2%Spare Parts
Free parts for any breakdown with convincing evidence
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel.
Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 35- 40 working days.
SHANGHAI JOYGOAL FOOD MACHINERY
Company Profile
We are a comprehensive enterprise which integrates research, development, manufacture, installation and maintenance. We have advanced equipment, rich experience, highly-qualified scientific researchers and professional staff members for the after-sales services.Our major products include stand-up pouch filling and cap-screwing machines, cup filling and sealing machines, forming-bag filling and sealing machines, liquid packing machines, solid packing machines, strapping machines, vacuum packing machines, beverage production lines, etc.
