Automatic Counting Rotary Packing Machine
- shanghai
- T/T Credit Card
You May Like
-
Automatic Powder Particle Packaging Machine Shanghai Machine
-
Honey Packing Machine Price Shanghai
-
Full Automatic Rotary Granule Packaging Packing Machine Shanghai Machine
-
Premade Pouch Packing Machine Shanghai Machine
-
High Quality Juice Filling Sealing Packing Machine Pouch Juice Packing Machine
-
Juice Filling and Packing Machines Shanghai Machine
Product Details
| Brand Name | Joygoal | Place of Origin | Shanghai, China | |
| Certification | ISO9001 | |||
| Weight | 1800kg | Dimension(L*W*H) | 1800*2400*3200mm | |
| Voltage | AC220/380V | Application | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles | |
| Condition | New | Automatic Grade | Automatic | |
| Driven Type | Pneumatic | Packaging Material | Plastic, Paper, Metal, Glass, Wood | |
| Packaging Type | Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, Case |
wooden
Product Description
Product introduction:
GD-8-200 automatic rotary packaging machine combines with domestic and foreign
advanced packaging structural features and fully automated control system with the
industry, it is a new generation of high-tech products. The machine is widely used in food,agriculture, medicine and other industries.
working process:
1.Giving bag:Power on, suction tip adsorbs the bag, the arm folder clamps the dial folder on the first working position.
2.Coding:The machine run to the second working position , it codes the bag.
3.Opening bag:The machine run to the third working position, it opens the bag.
4.Filling:The machine run to the fourth working position, it fills the bag.
5.Sealing:The machine run to the fifth working position, it checks if the bag is filled with material, then it sealsthe bag.
6.Forming & output packages:The machine run to the sixth working position, it cools the bag mouth and forms& output packages.The above process carried out simultaneously by cycle
rotary packing machine parameters:
Model | GD-8-300 | GD-8-200 |
Working position | 8-working position | |
Pouch material | Laminated filmPPPE etc. | |
Pouch pattern | Stand-up,Flat | |
Pouch size | W: 200-300mm L: 200-500mm | W: 100-210mm L: 100-350mm |
Speed | 8-35bag/min | 10-60bag/min |
Weight | 1400KG | 1200KG |
Voltage | 380V 50HZ/60HZ | |
Power | 5KW | 3KW |
Compress air | 0.6m3/min | |
Working position | 6-working position,8-working position | |
Pouch material | Laminated filmPPPE etc. | |
Pouch pattern | Request for pouch with spout | |
Pouch size | W: 100-210mm L: 100-350mm | |
Filling Scope | Powder | 10-500g |
Granule | 10-1000g | |
Weight Accuracy | Powder | Package weight≤100g error≤±2% 100g-500g error≤±1% |
Granule | ±0.1-2g | |
Speed | 10-60bag/min | |
Voltage | 380V 50HZ | |
Power | 8KW | |
Compress air | 0.6m3/min | |

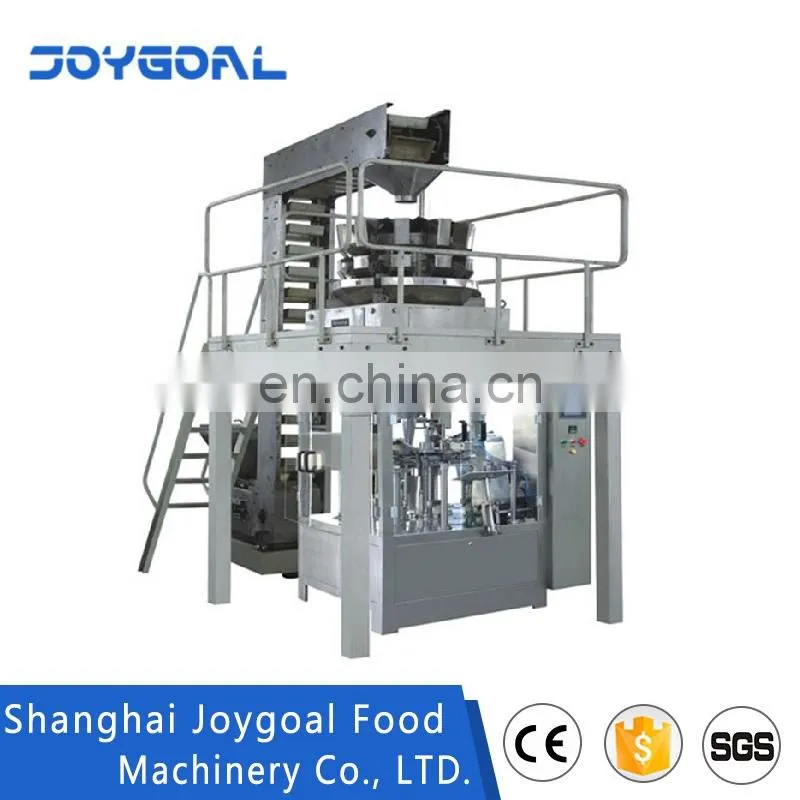

product picture
24 hours online service
Enquiry will be replied in 2 hours
One year warranty
1%-2%Spare Parts
Free parts for any breakdown with convincing evidence
Shanghai Joygoal Food Machinery Co.,Ltd is a company integrating scientific research, manufacturing and service and specializing in manufacturing coffee capsule filling sealing machine, pouch filling capping machine, cup filling sealing machine. The product are sold well at home and abroad.
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel.
Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 35- 40 working days.
SHANGHAI JOYGOAL FOOD MACHINERY
Company Profile
We are a comprehensive enterprise which integrates research, development, manufacture, installation and maintenance. We have advanced equipment, rich experience, highly-qualified scientific researchers and professional staff members for the after-sales services.Our major products include stand-up pouch filling and cap-screwing machines, cup filling and sealing machines, forming-bag filling and sealing machines, liquid packing machines, solid packing machines, strapping machines, vacuum packing machines, beverage production lines, etc.
