Best price shaping bag tea filling and sealing machine
frozen bean curd pouch filling machine forming bag filling machinery

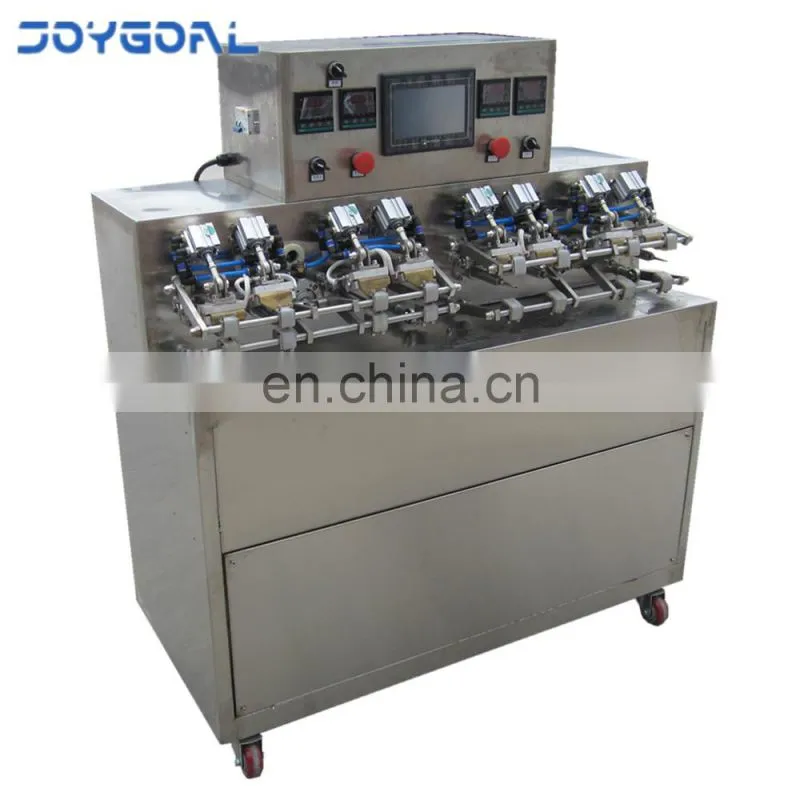

1.It is used for various kinds of bags filling and sealing, for liquid package such as milk,soybean milk,yoghurt,jelly,fruit juice,beverage,soy sauce,vinegar,wine, cooking oil,detergents,liquid chenical and semi-fluid etc. The machine’s performance have gotten high reputation from our clients.

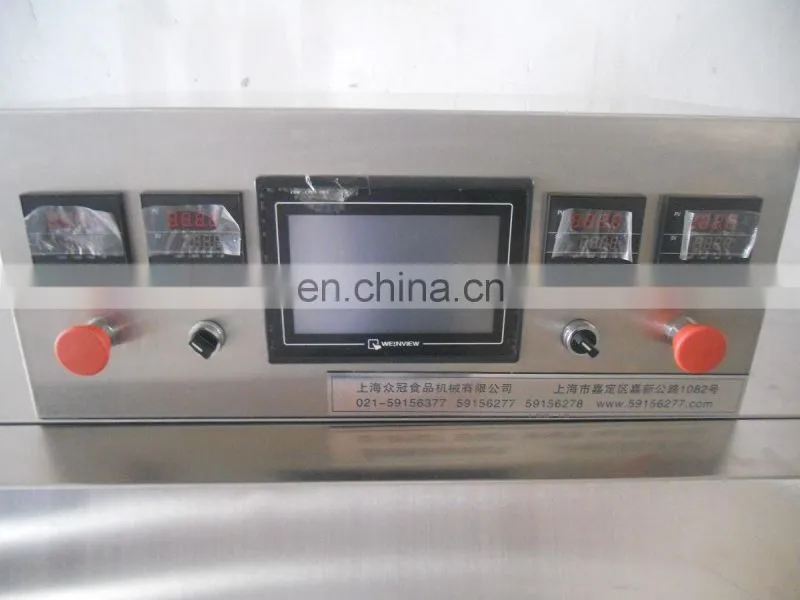

2.Touch screen.
3.PLC computer system.
4.Chinese and English display.
5.Automatic pneumatic component control.
6.Push botton operation.through the button to change the number on the touch screen to adjust the measure, simple operation and accurate measurement.
7.Adopt a special pressure filling pump feed, eliminating the notes plug pump
feeding with low efficiency and big air consumption disadvantages.
feature
1,For easy to seal forming bag, except the conventional temperature control
system,we also add time adjustment system.
2.Machine run smoothly with low failure rate.
3.Easy to operate and maintenance.
4.Nozzles adopt special design. Ensure the sealing consistency.
Technical parameters
|
Model |
CXD-4 |
CXD-8 |
|
Packing speed |
500-1500 bags/hour |
1000-3000 bags/hour |
|
Filling volume |
50-500 ml/bag |
50-500 ml/bag |
|
Power supply |
220V 50Hz |
220V 50Hz |
|
Power |
0.75 KW |
1.5 KW |
|
Air source |
0.8 map 0.3 m³/min |
0.8 map 0.3 m³/min |
|
Weight |
200KG |
260KG |
|
Size |
1260×580×1280 mm |
1260×580×1280 mm |
The superiority is as following,
1, The machine apply for pneumatic coupling with PLC control.
2,Applying plunger-type cylinder to measurable filling, accuracy, without splash and leakiness:
3,The shell , frame and the part relational with food are applying SST stainless steel to make sure the healthy of food and confirm the machine tidy and bright.
4,It can pack many kinds of bags, novel style, firmed sealing, convenient supplication and low packing cost..
