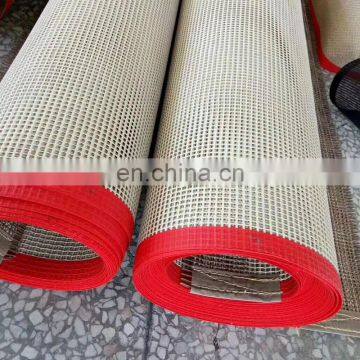

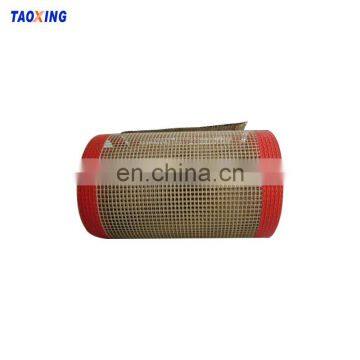

High Temperature Printing Machine 1x1mm Ptfe Conveyor Mesh Belt
- 10000 Square Centimeter / Square Centimeters per Month
- Shanghai or Ningbo
- T/T Credit Card
- silk screen aluminum screen printing frame
- Aluminum Silk Screen Printing Frame for Screen Printer
- IR Infrared Radiation Heater Quartz Heating Tube
- Customized Steel Plate For Ink Cup Pad Printer
- Multi color high precision overprinting cylindrical servo motor CNC screen printing machine
- Factory Price of Screen Printing Machine with Servo Motor
Product Details
Brand Name: | TAOXING | Place of Origin: | Zhejiang, China | Material: | Nylon |
Type: | Flat Belt | Standard or Nonstandard: | Nonstandard |
Product Description
tem No | Mesh Size | material | Thickness | Weight | Temp Resistance | Max Width | Tensile Strength |
TX-6001 | 1*1mm | fiberglass | 0.5mm | 390g/m² | -70-260°c | 4000mm | 1600/1500N/5CM |
TX-6002 | 2*2mm | fiberglass | 0.7mm | 450g /m² | -70-260°c | 4000mm | 2200/1500N/5CM |
TX-6003 | 4*4mm | fiberglass | 1.0mm | 500g/ m² | -70-260°c | 4000mm | 2100/1500N/5CM |
TX-6004 | 4*4mm | fiberglass | 1.0mm | 480g /m² | -70-260°c | 4000mm | 2100/1500N/5CM |
TX-6007 | 4*4mm | fiberglass+kevlar | 1.2mm | 560g /m² | -70-260°c | 4000mm | 3300/2800N/5CM |
TX-6008 | 4*4mm | fiberglass | 1.0mm | 570g /m² | -70-260°c | 4000mm | 2800/1580/5CM |
TX-6010 | 4*4mm | kevlar | 1.0mm | 460g /m² | -70-260°c | 4000mm | 3500/3300N/5CM |
TX-6012 | 4*4mm | fiberglass | 1.0mm | 580g /m² | -70-260°c | 4000mm | 2800/1500N/5CM |
TX-6013 | 10*10mm | fiberglass | 1.0mm | 450g /m² | -70-260°c | 4000mm | 1100/1000N/5CM |
TX-6014 | 0.5*1mm | fiberglass | 0.5mm | 420g /m² | -70-260°c | 4000mm | 2200/1500N/5CM |
TX-6015 | 2*2.5mm | fiberglass | 0.9mm | 470g /m² | -70-260°c | 3000mm | 2200/1500N/5CM |
Applied to the drying tunnel and so on
1. Introdution of conveyor belt mesh
PTFE conveyor belt mesh are made from fine glassfiber or Kevlar as basi weaving material, coated with excellent PTFE resin.
2. Features of PTFE fiberglass conveyor belt mesh
1) Good tempareture tolerance, 24 working tempareture -70 to 260 celsius deree.
2) Chemical resistance - It can resist all most of chemical medicines.
3) Non stick -It can easliy remove all kinds of adhesives suh as resin, paint and chemical medicine, easy to clean.
4) Good flex fatigue resistance - it has high tensile strength and excellent flex fatigue resistance. It's better for mall wheels
5) Permeability - it can avoid wasting heat and improve drying efficiency for it's permeability.
3. Applications of PTFE fiberglass conveyor belt mesh.
1) Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
2) Shrinking machine for garment fabric, high-requency and UV dryer.
3) Conveyor belt for hot - air dryer, various of food baking, quick - frozen machines.
4) Oiling machin for paper glazing and waxing, plant engineering.
5) Seperating sheet for hardboard production etc.
Hangzhou Taoxing Printing Machiner Co.,ltd. is a High-tech lead company, integrated with science, industry and trade. We have strong technical support, advanced production equipment and professional staff who dedicate to products research, development, manufacture, installation, test and maintenance.
Our main products:
1: Automatice screen Printing machine : Automatice Glass Screen Printing machine , Automatice Bucket Screen Printing machine ,Automatice Pen Screen Printing machine,Automatice aluminum Screen Printing machine ,Automatice Piston printing machine, and so on
2. Semi-auto screen printing machine: Semi-auto PVC screen printing machine, Semi-auto wooden screen printing machine, Semi-auto bottle screen printing machine, Semi-auto glass screen printing machine, fire extinguisher screen printing machine, and so on
3. Manual screen printing machine : T-shirt printing machine, manual round screen printing machine. manual vacuum printing tabel .
4. Pad printer : Auto pad printer , Semi-auto ink tray pad printer,Semi-auto ink cup pad printer manual ink try pad printer ,manul ink cup pad printer
5. Pre-Press : Mesh stretching machine, Exposure machine, Frame drying machine, Frame coating machine
6. Post-Press: UV curing machine, IR drying Tunnel, IR drying Oven , Flash dryer
7. Auxiliary: Powder coating machine, Scraper grinding machine ,Flame treatment machine,screen frame, screen mesh.
Working Shop
Cetefications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 100(L) * 60(W) * 155(D)CM | |
Weight | 120KG | |
Packaging Details | Auto inkwell pad printer is packed with wooden box.The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Delivery Time
Transport:
By Courier By Sea
By Train By Air
Loading Port:
Shanghai Airport
Ningbo or Shanghai Sea port
1. How to get a quotation
We need some time for calculation. As a result, we can't provide any price reference via phone. Information required for quotation differs among the different types of items.
The major as follow:
a. Which process and product type.
b. Material and glass thickness and size.
c. If the glass need silk screen, please supply a CAD file or AI file or Coreldraw file which contain silk screen print pattern and color.
d. Order quantity.
2. Do you accept small order
Any order quantity is welcome. But some type of products are high cost that not suitable small order.
3. Want to get free samples
Sure you can. Please send your request via email.We can supply similar sample,but you must supply express fee. If you want the sample is exactly the same as your require ,you must pay sample fee.
