Environment friendly rubber waste shredder Tire recycling machinery

Environment friendly rubber waste shredder Tire recycling machinery

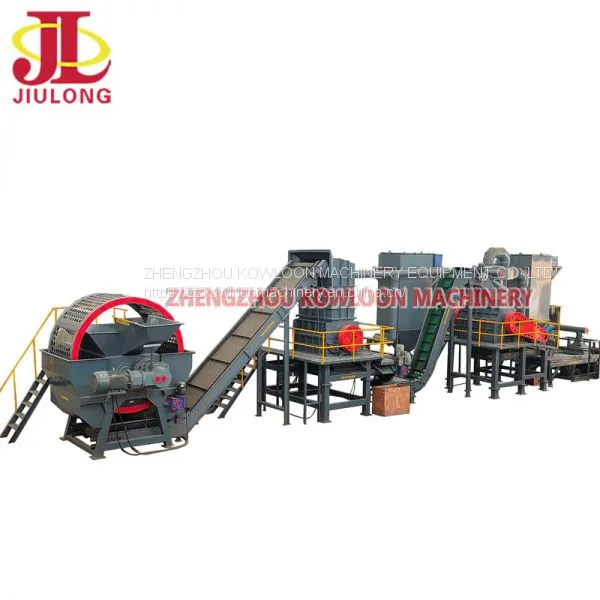

tire waste recycling machine is widely used into different kinds of the rubber scrap , tire waste , such as the car tire waste , used truck tire , etc thru the processing , the finals could be the rubber chip , rubber particles , or rubber powder . the purity Nylon , Fe will be sorted by the dfifferent kinds of machinery .

Detials processing :

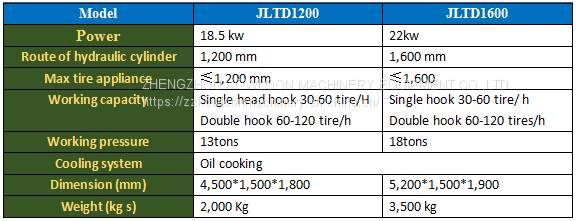

1. tire debeader machinery

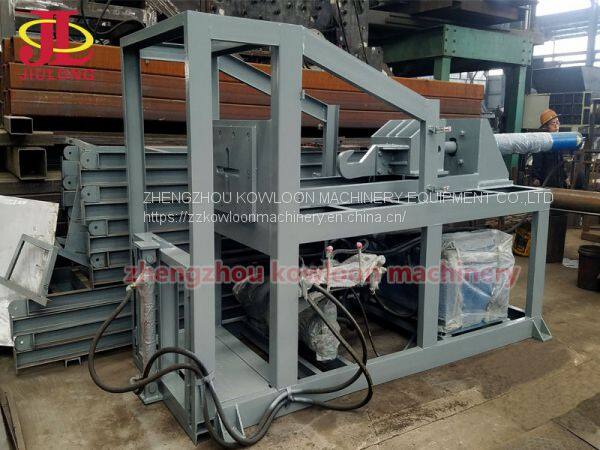

   Tire used debeader is used to take out the steel from the beader . the fucntion of the debeader is to protect the tough shredder blade ,expand the using life . but also for get the purity Fe .

2.

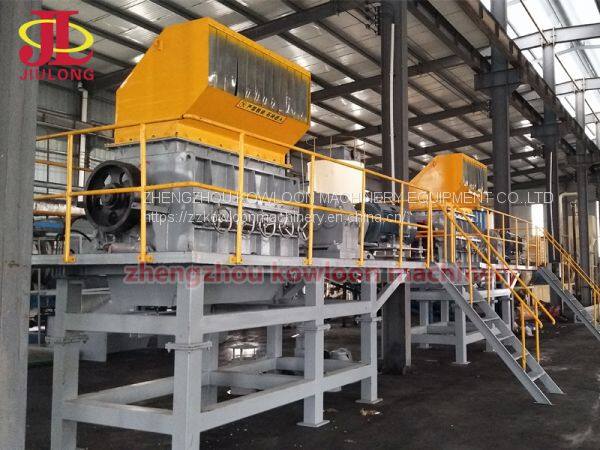

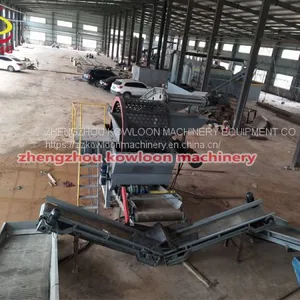

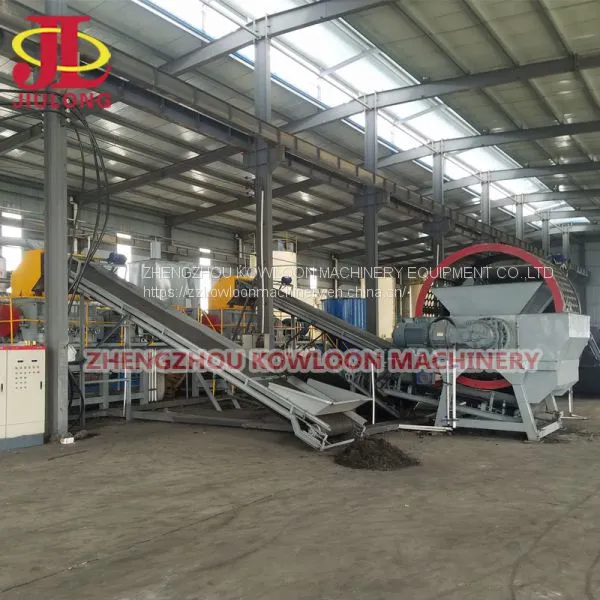

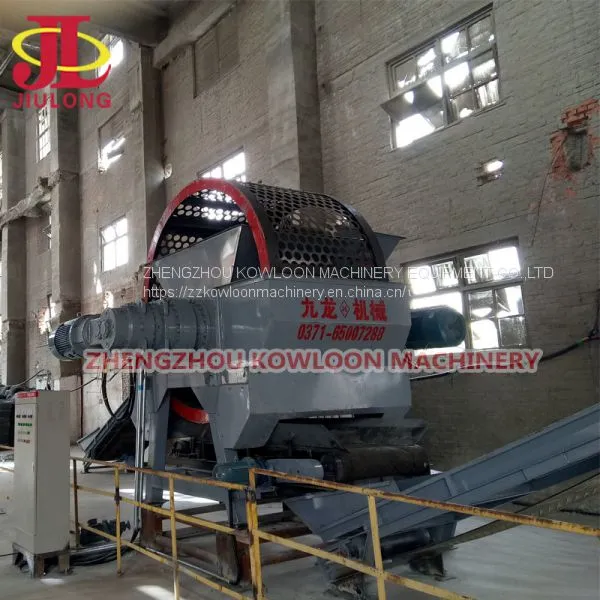

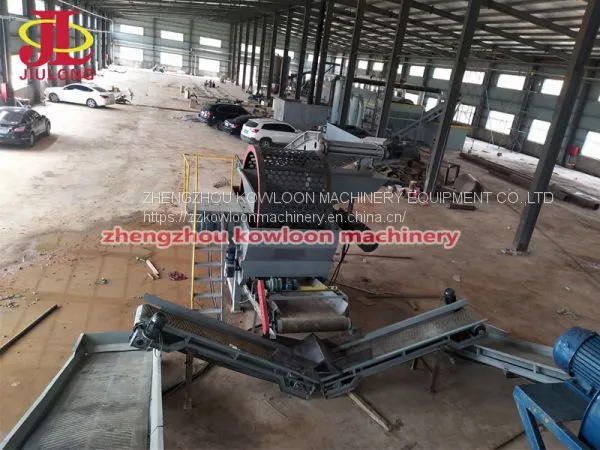

3. the tire rubber shredder machine

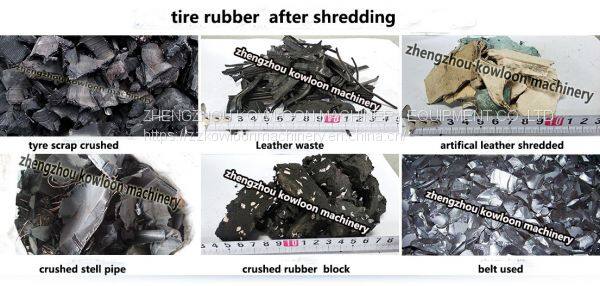

4. tire shredde machinery is for the tire scrap thru the blade tear , outcomes size about 50*50 mm . its controlled by the blade with and teeth quantities .

   The blade is made of special alloy (H13 ,9CrSi,5WSiCr etc) , the blade head is taken the replaceable part ,design for the tire scrap only . also the tire shredder is assemly with the rotary screen to get the standard size.

5.

6.

   2.rubber rasper machine

7.

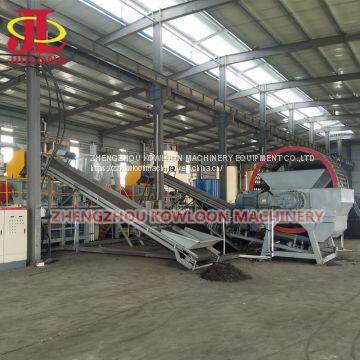

8. Rubber tire rapser machine is used to different kinds of the tire , after getting the rasper machine outcomes size is about 10-17mm . meanwhile the suspend magnetic will sort the Fe from the rubber .

9.

10. rubber granulator machine

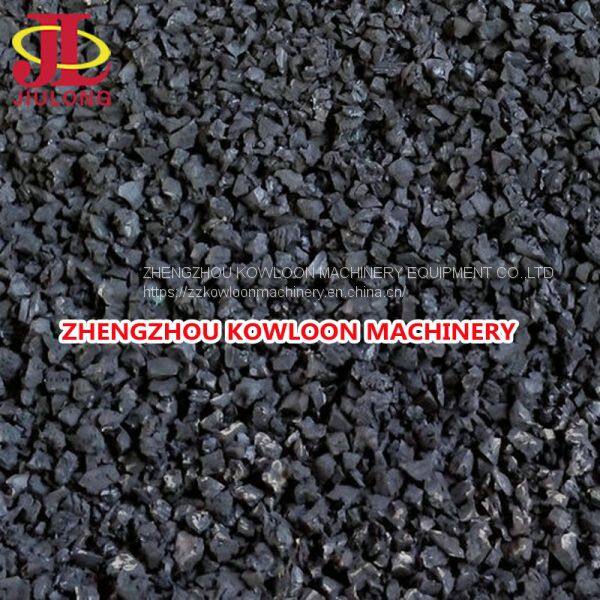

11. the rubber tire machine is used to the rubber material 10-17 mm , outcomes size 1-7 mm .

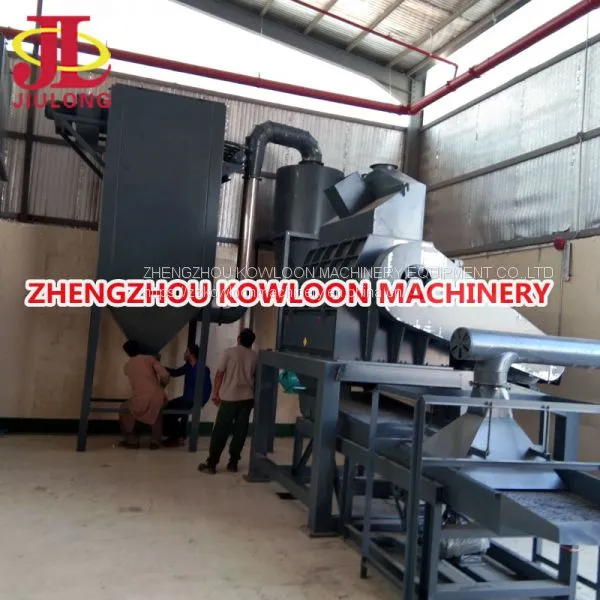

    The Nylon will be colelcted by the cyclone and dust catcher system , afer that the rubber particle will be fed into the rubber vibration screen to sort different kinds of the kinds materials .

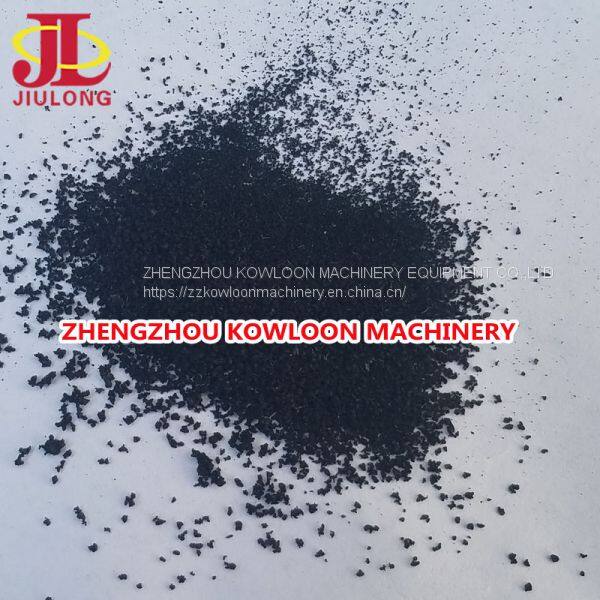

12. rubber particle dis mill will grind the rubber particle into the fineness powder . the fineness 20-80 meshes adjustable as customer requirement. to confirm the dis mill could be continue working , the water cooling system .

    Characters of tire rubber recycling machine

13. 1. Environment friendly to confirm that there is no any pollution . for the system assemble with the dust catcher system

14. 2. blade take the special alloy . much more durable , the planetary motor reducer driving . its mcuh more powerful and torque to compare with the belt transmission .

15. 3. The electronic components is using the famous brand such as the Siemens , Schannaid , Chint etc .
