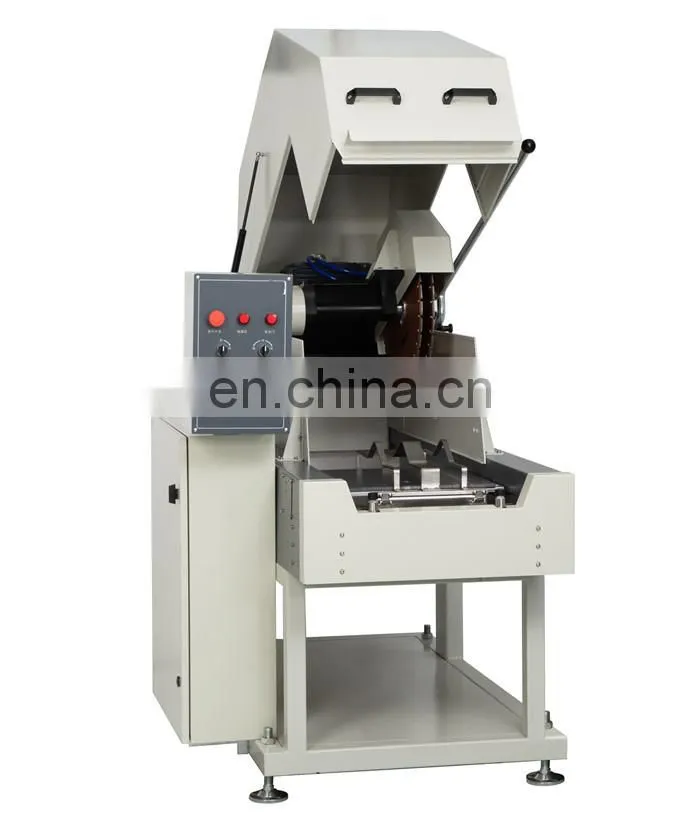

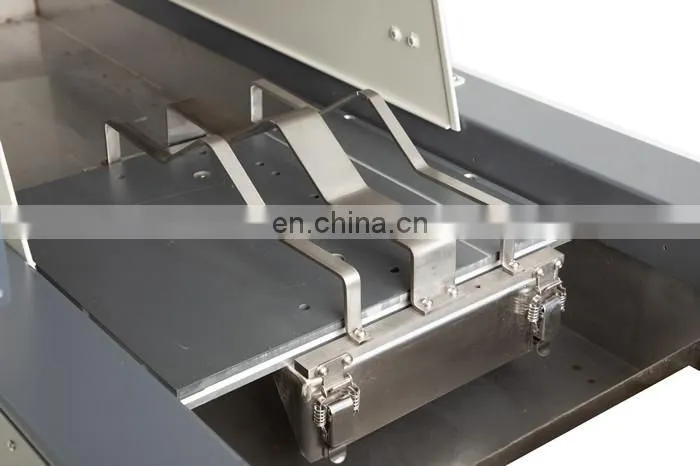

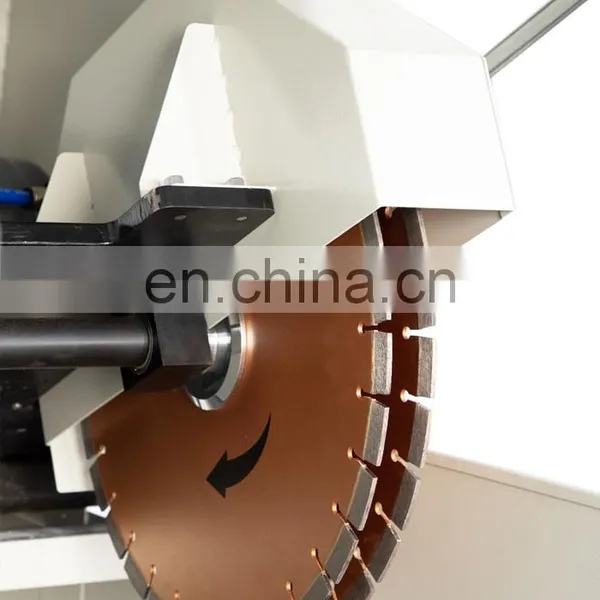

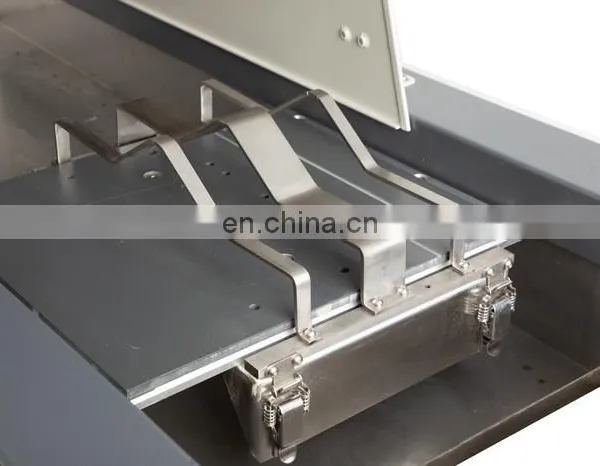

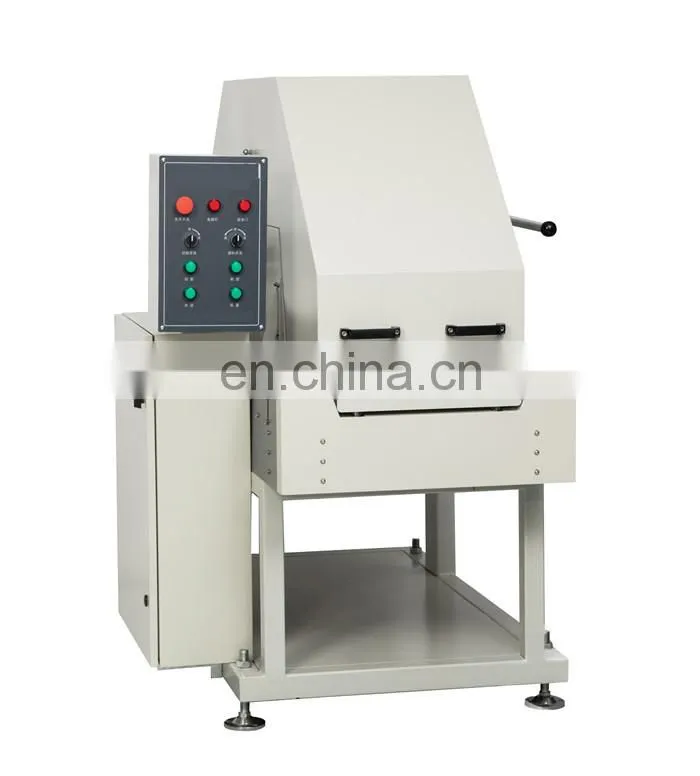

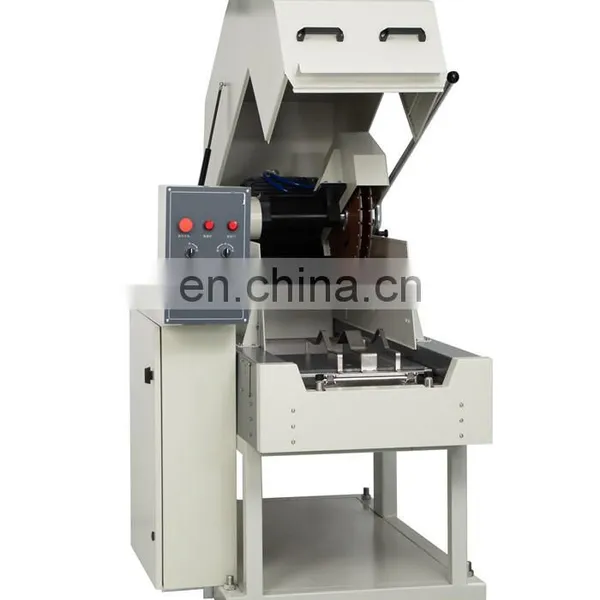

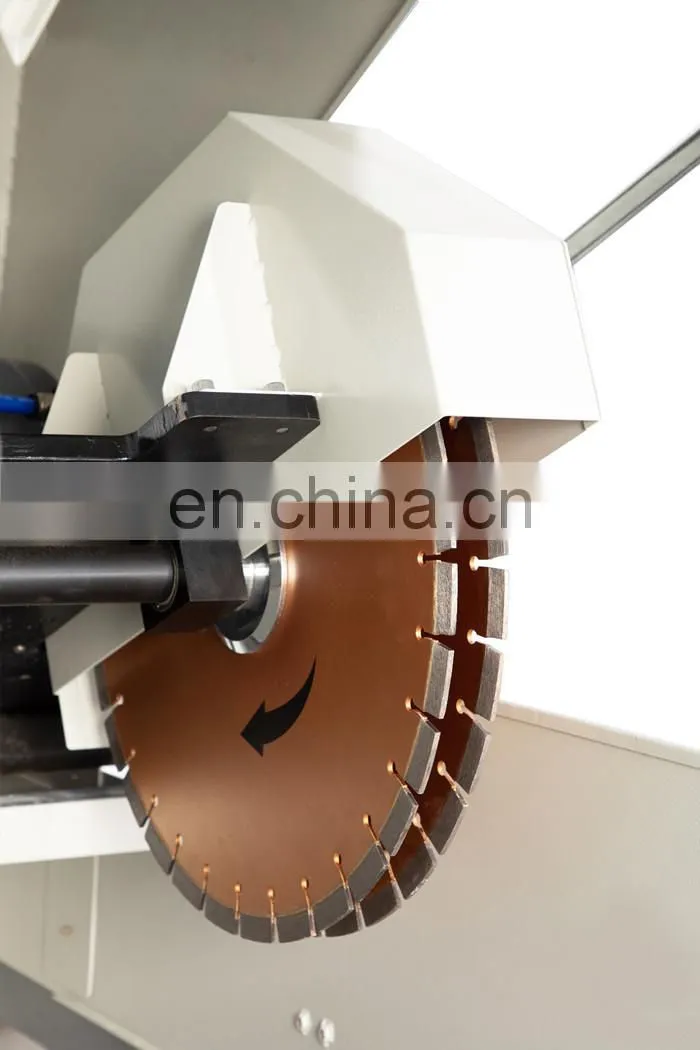

Asphalt mixture cutting machine
Application:
Asphalt mixture cutting machine is new improved equipment to cut specimen for asphalt mixture bending test , asphalt mixture shear strength test, asphalt mixture uniaxial compression dynamic modulus test and other test . This equipment adopts waterproof motor with high performance, working together with high speed bearing, use steel frame with high rigid. Machine performs good cutting stability with high accuracy and smooth surface;
Feature:
Using high hardness and high quality steel as the frame;
Good cutting stability;
High precision drive system to ensure cutting precision;
High motor speed and the cutting surface of specimen is smooth;
Easy operation, one clamping can cut two parallel sides;
Adjust blade rotating speed and feed speed;
Using full sealing cover, safe and low noise.
Cooling water is filtered by three layers when water is discharged;
Technical specification:
Cutting power |
4000W |
Motor waterproof grade |
IP56 |
Saw blade rotating speed |
100~3000r/min (adjustable) |
Saw blade diameter |
D470mm |
Accuracy |
±0.1mm |
Specimen |
cube specimen thickness from 25mm to 150mm Cylinder specimen diameter of D100mm (Standard) |
Weight |
around 400KG |
More details:
