Open Cup Asphalt Flash Fire Point Tester

Open Cup Asphalt Flash Fire Point Tester

Standard: ASTM D92

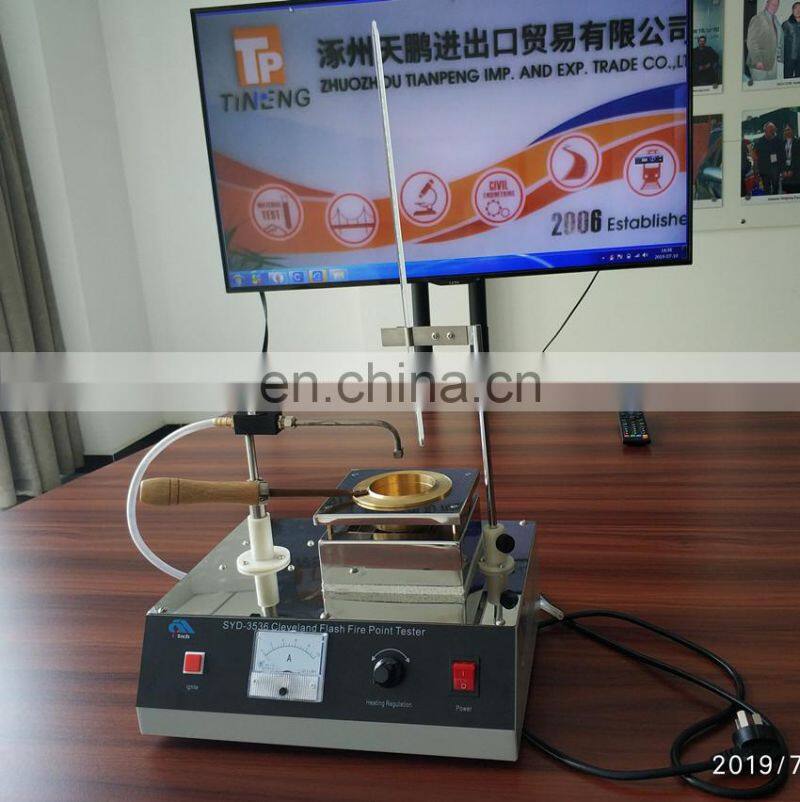

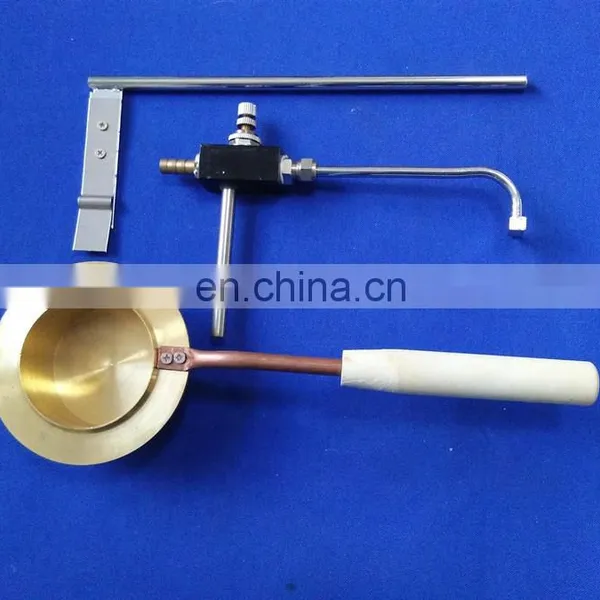

The SYD-3536 electrical asphalt flash fire point tester is used for determining the flash and fire point of petroleum products. It consists of a brass cup mounted on an electric heater with temperature controller. Conforming with the CE European directive, is supplied complete with double linefuse, hot plate control system and thermometer -6 +400°C.

Specifications:

Power supply: AC 220V± 10%, 50 Hz;
Heating device: a quartz tube furnace heat, no fire, explosion, power 0 ~ 600W
                            continuously adjustable
draw sweeping device: automatic sweep program
Thermometer: -6 ~ 400ºC,division 2ºC, technical conditions compliance with technical conditions GB/T514 thermometer liquid                                 petroleum product testing

Ignition device:  1. ignition sources: gas (or other civil combustible gas, the same below);
                             2. nozzle diameter: 0.6 to 0.8 mm
Ambient temperature: -10 ºC ~ 50 ºC
Relative humidity:  85%
Power consumption: less than 650W
Dimensions: 350x300x400mm
Weight: 10kg

 Packing: export standard carton box

 Delivery time: within 5-10 days after payment
