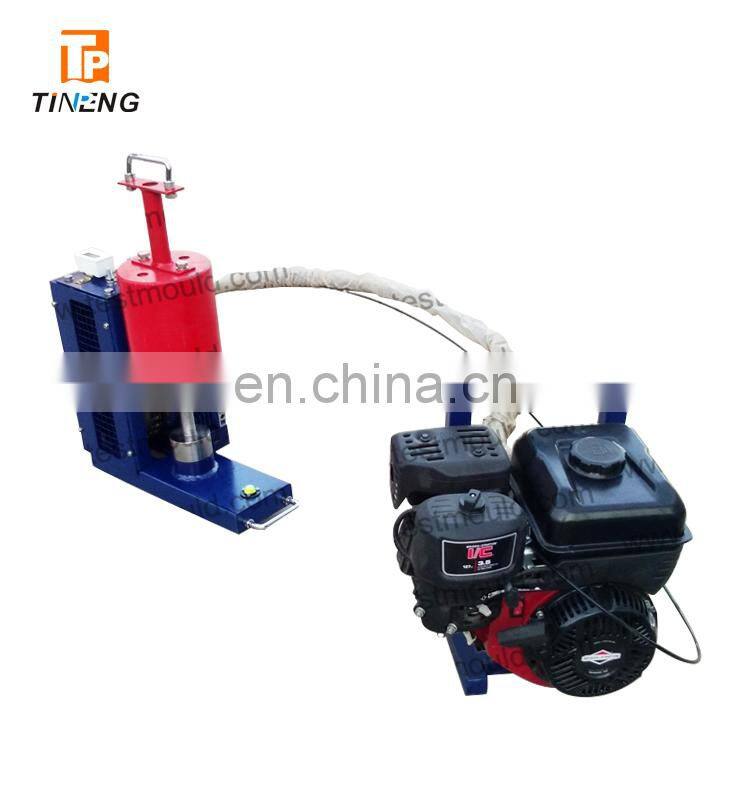

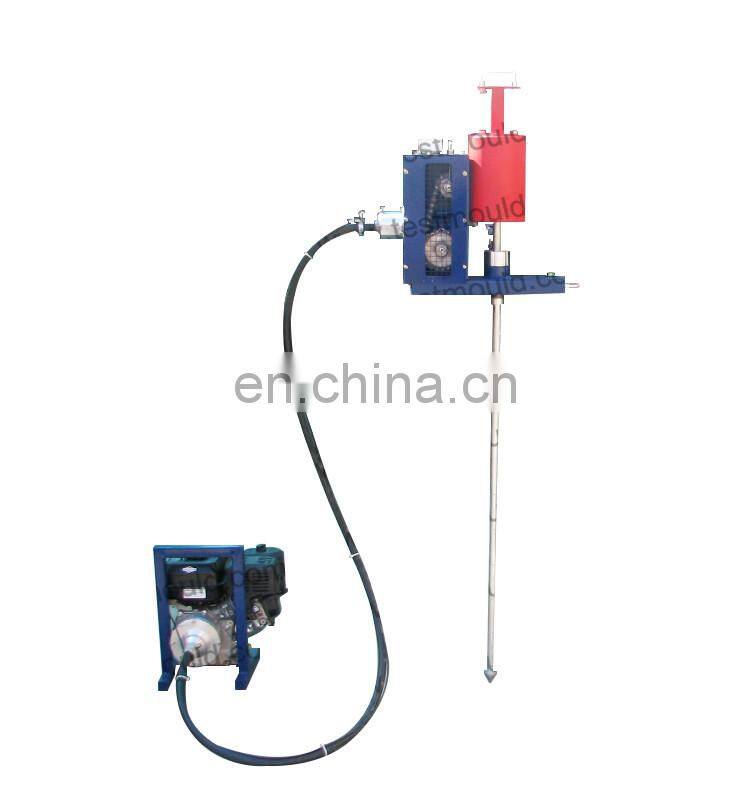

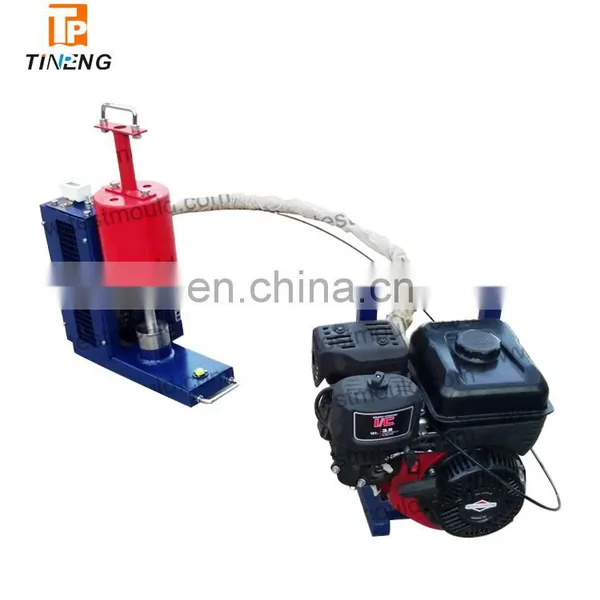

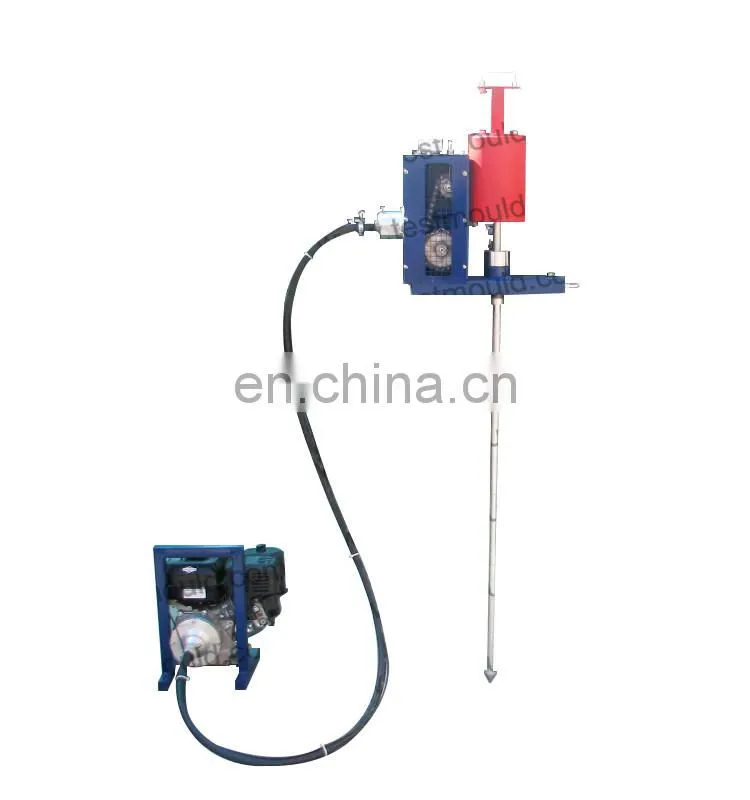

20kg or 30kg hammer Motor operated Dynamic cone penetrometer for soil
Standard: DIN 4094 LRS10 uni env 1997-3
Model 16-T0012/D FEATURES:

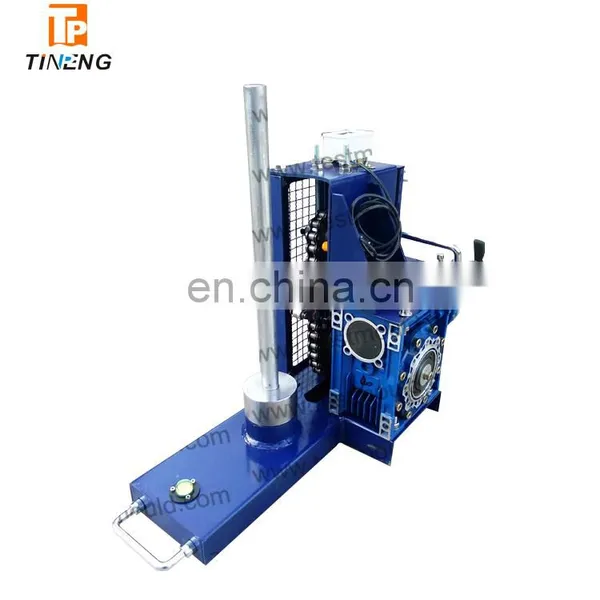

• The apparatus comprises a 4 stroke engine which drives, through a flexible shaft, the lifting mechanism, a 20 kg weight, a 10 kg supplementary weight, 10 rods, 5 cones each of 500 and 1000 mm2 size, and rod lifting device.
• Accessory 16-T0012/D7 Tripod to make easier the use of the apparatus.
• 1.9 kW 4 stroke engine
• Driving rate: up to 45 blows/min
• One year warrantee against any manufacturing defects.
20kg or 30kg hammer Motor operated Dynamic cone penetrometer for soil
COMPRISES:
16-T0012/D1 Hammer, 20 kg
16-T0012/D2 10 kg supplementary weight
16-T0012/D3 Drive conical point, 500 mm2 area, 25.2 mm dia, 90° angle
16-T0012/D4 Sounding rod 22mm dia.
16-T0012/D5 4 stroke engine

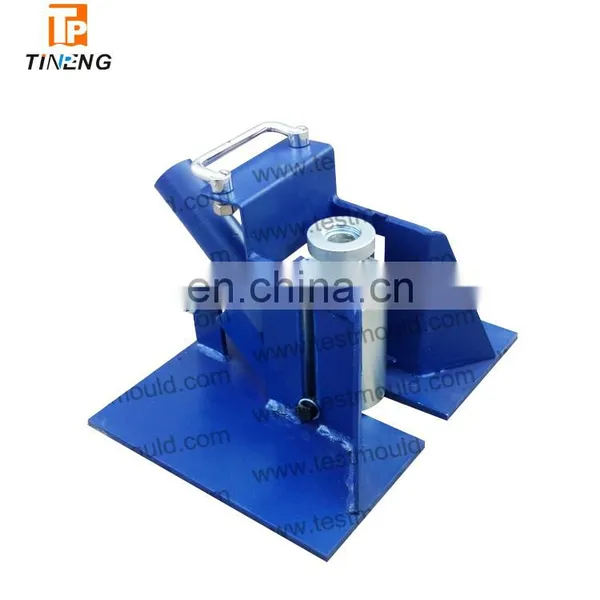

16-T0012/D6 Lever device for rod extraction
16-T0012/D7 Tripod for hanging the lifting mechanism. including 16-T0012/D6,16-T0012/D7 and 16-T0012/D8 Max. height 2300mm; Weight approx: 18 kg
16-T0012/D8 Hand winch
16-T0012/D9 Hook
16-T0012/D10 Height adjustment lever
Weight: 100kg approx. (without sounding rods and accessories)
20kg or 30kg hammer Motor operated Dynamic cone penetrometer for soil
