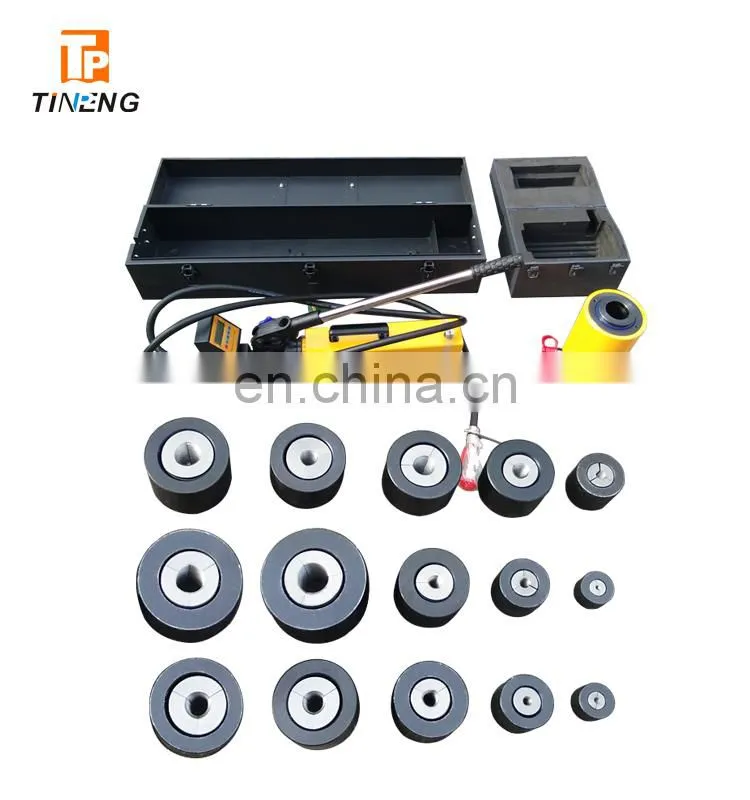

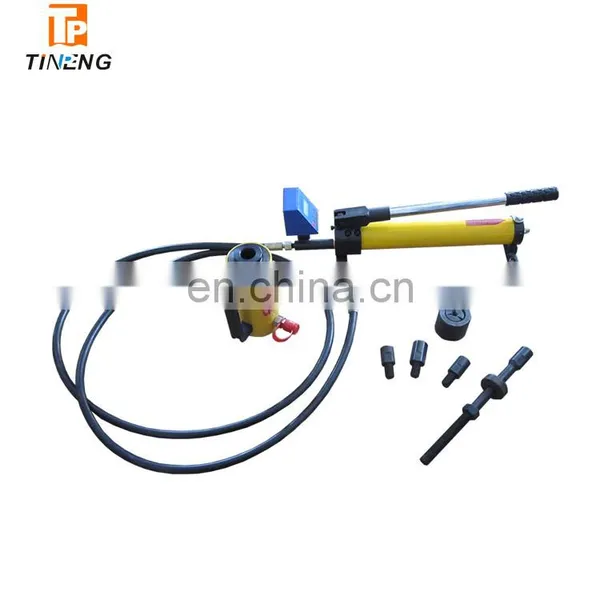

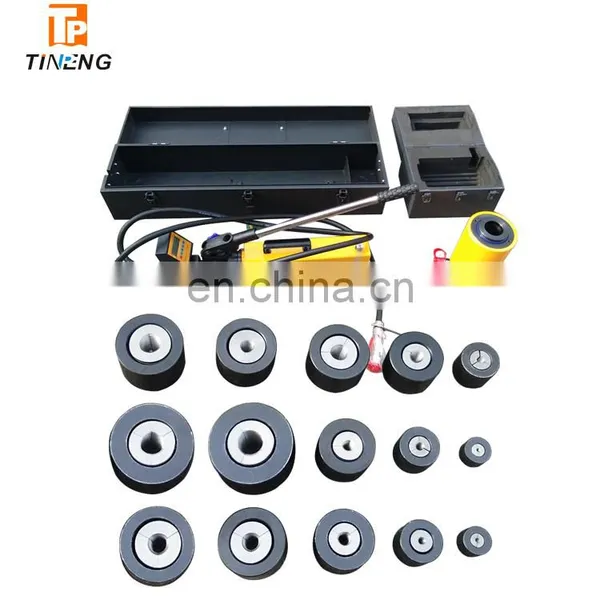

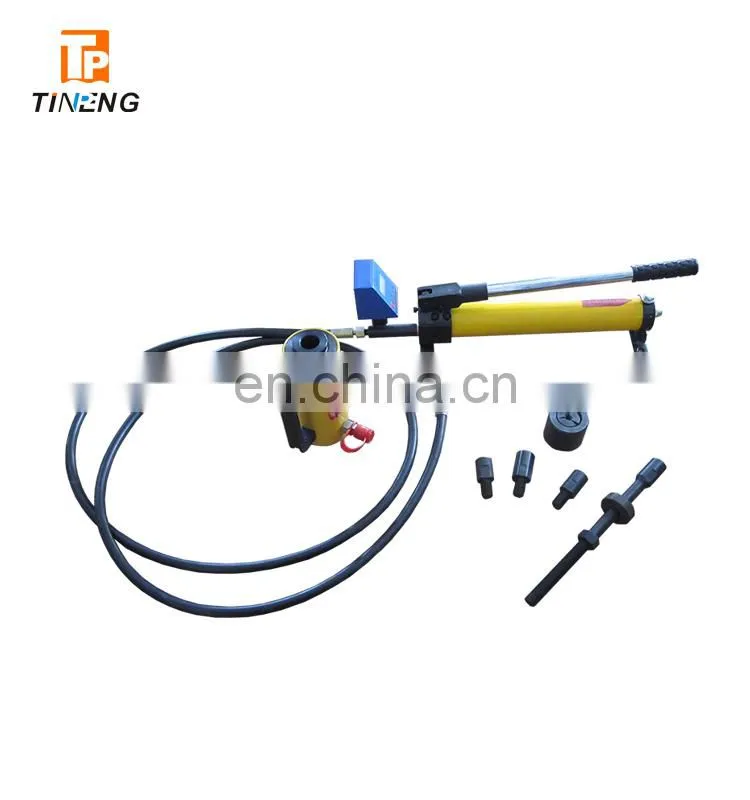

Help Center10T 100KN Anchor Rod Pull-off Tester to Test Concrete Steel
Related Products
-
Ultrasonic Drilling Monitor for Hole Quality TestingUS$ 10,000 - 40,000MOQ: 1 Set -
PIT Ultra Sonic Pile Integrity Tester to Evaluates the Concrete Quality of Deep FoundationsUS$ 20,000 - 30,000MOQ: 1 Set
-
HT-225W Digital Voice Concrete Test Hammer With Mico PrinterUS$ 650 - 750MOQ: 1 Set
-
HT-225 Concrete Test HammerUS$ 75 - 100MOQ: 1 Piece
-
2000KN Digital Display Hydraulic Compression Testing MachineUS$ 2,300 - 2,500MOQ: 1 Set
Anchor rod pull-off tester is suitable for testing the pull-out strength of various anchors, anchor cables, steel bars, planting bars, expansion bolts, chemical anchors, railway spikes, and various anchors. It can also be used for on-site pull-out strength testing of glass curtain walls
Anchor rod pull-off tester Technical data:
| Model |
JW-10T |
JW-20T |
JW-30T |
JW-50T |
JW-60T |
JW-100T |
|
|
Testing range |
0-100KN |
0-200KN |
0-300KN |
0-500KN |
0-600KN |
0-1000KN |
|
|
Cylinder center hole |
27mm |
34mm |
45mm |
60mm |
75mm |
86/95mm |
|
|
Cylinder stroke |
60mm |
80mm |
80mm |
120mm |
120mm |
150mm |
|
|
Cylinder weight |
5.5kg |
13kg |
15kg |
25kg |
35kg |
50/75kg |
|
|
Cylinder reset |
Auto |
manual |
|
||||
|
Manual pump storage capacity of oil |
0.7L |
4L |
|
||||
|
Manual pump operating pressure |
63Mpa |
|
|||||
|
Resolution |
0.01KN |
0.1KN |
|||||
|
Test error |
1%F.S |
|
|||||
|
Power |
Three no. 5 batteries |
|
|||||
|
55mmX21mm |
|
|||||
|
Data storage |
500pcs |
||||||
