Home > Products > Wood CNC router > 1325 high-end CNC router

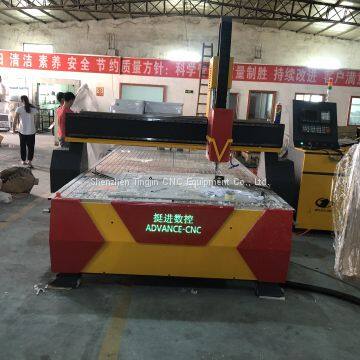

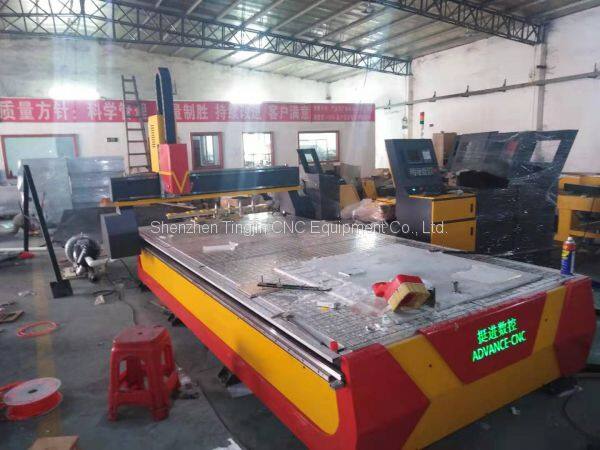

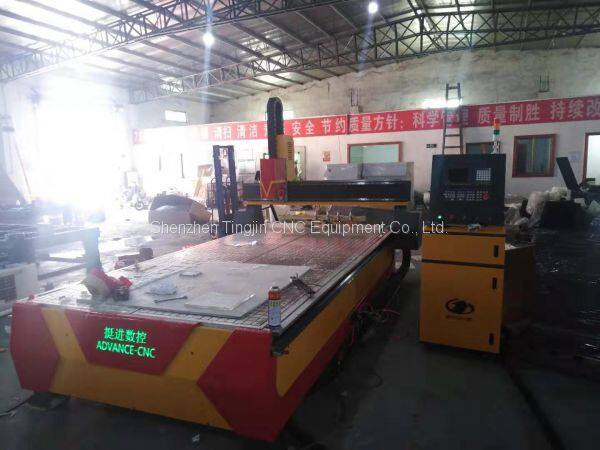

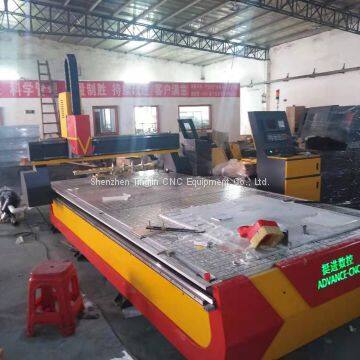

1325 high-end CNC router
- 99 Set / Sets per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
Product Details
| Brand Name | Advance | Place of Origin | China | |
| Model Number | 1325 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 year | Weight | 1300KG | |
| Dimension(L*W*H) | 1300*2500*200mm | Voltage | 220V50HZ/380V50HZ | |
| Condition | New | Power(W) | 4.5KW | |
| CNC or Not | CNC |
Product Description
Serial number | model | Parameter configuration | ||||
1 | ACE-W1325 Servo motor version | Manufacturer | Shenzhen Tingjin CNC Equipment Co., Ltd. | |||
Machine size | 1500*3000*1900mm | |||||
Processing range | 1300*2500*200mm | |||||
Z axis travel | ≤250mm | |||||
Machine structure | 8mm heavy-duty full-welded square steel structure, side wall cast iron, the whole machine has undergone vibration aging and quenching treatment; | |||||
Spindle power (KW) | Changzhou HQD, China 4.5KW/Wind cooling | |||||
Spindle speed | 6000-24000RPM | |||||
Idling | 0-35000mm/min | |||||
Working speed | 0-20000mm/min | |||||
Reset accuracy | ±0.1mm | |||||
Motion-oriented track | Taiwan HIWIN 25mm rail | |||||
servo motor | Yakotec, Shenzhen, China 750W | |||||
Power transmission configuration | Z axis Taiwan TBI 25mm ball screw,X/Y axisIs the tooth strip transmission configuration | |||||
Frequency converter | Fuling, Zhejiang, China 4.5KW | |||||
Carved countertop | T-shaped aluminum table top | vacuum cleaner | 2 bags 4.5KW | |||
Control System | RICHAUTO BeiJing China | |||||
Engraving command | G-code,ENG,U00,MMG,NC | |||||
Compatible software | All CNC programming software are supported | |||||
Milling cutter | CNC carving knife | |||||
Electric cabinet | Independent anti-interference large electric cabinet | |||||
cooling system | Water cooling/air cooling | |||||
Operating Voltage | AC/380V50Hz | |||||
Random tool | 1 set of toolbox | |||||
2 | ACE-W1325 Stepper motor version | Manufacturer | Shenzhen Tingjin CNC Equipment Co., Ltd. | |||
Machine size | 1500*3000*1900mm | |||||
Processing range | 1300*2500*200mm | |||||
Z axis travel | ≤250mm | |||||
Machine structure | 8mm heavy-duty full-welded square steel structure, side wall cast iron, the whole machine has undergone vibration aging and quenching treatment; | |||||
Spindle power (KW) | Changzhou HQD, China 4.5KW/Wind cooling | |||||
Spindle speed | 6000-24000RPM | |||||
Idling | 0-35000mm/min | |||||
Working speed | 0-20000mm/min | |||||
Reset accuracy | ±0.1mm | |||||
Motion-oriented track | Taiwan HIWIN 25mm rail | |||||
Stepper motor | Leadshine, Shenzhen, China 86 | |||||
Power transmission configuration | Z axis Taiwan TBI 25mm ball screw,X/Y axisIs the tooth strip transmission configuration | |||||
Frequency converter | Best Changsha, China 4.5KW | |||||
Carved countertop | T-shaped aluminum table top | vacuum cleaner | 2 bags 4.5KW | |||
Control System | RICHAUTO BeiJing China | |||||
Engraving command | G-code,ENG,U00,MMG,NC | |||||
Compatible software | All CNC programming software are supported | |||||
Milling cutter | CNC carving knife | |||||
Electric cabinet | Independent anti-interference large electric cabinet | |||||
cooling system | Water cooling/air cooling | |||||
Operating Voltage | AC/380V50Hz | |||||
Random tool | 1 set of toolbox | |||||
1. Is the price negotiable?
The price is negotiable. It can be changed according to the configuration.
---------------------------------------------------------------------------------------------
2. How do you ship the machine?
Generally speaking, we ship the machine by sea, but sometime as customer’s requirements, the machine can be shipped by air, by train or by truck.
When the machine arrive at the port or destination, you can pick up the goods with the Bill of Lading we offered. We also can arrange the cargo agent to send the machine to your door.
---------------------------------------------------------------------------------------------
3. I never operate cnc router before, does it difficult to operate?
Please don’t worry about it, we will supply you lots of help for you, including supply you the video of how to operate the cnc router and the detailed Operation Manual. Our engineer is on line 24h to solve your problem.
---------------------------------------------------------------------------------------------
4. Can you send your technician to my company to teach me how to use the machine?
Yes, we can arrange our technician to your company for training if you need.
---------------------------------------------------------------------------------------------
5. Does the machine come with the software?
Yes, we offer Type3, Artcam software with the machine.
---------------------------------------------------------------------------------------------
6. Do you sell relative accessories?
Yes, we can offer relative accessories, such as spindle, drive motor, controller, software, 3D scanner, etc.
---------------------------------------------------------------------------------------------
7. What payment terms do you accept?
TT, Western Union, Paypal or others.
---------------------------------------------------------------------------------------------
8. How long is the warranty period?
Our warranty is 1 years.
---------------------------------------------------------------------------------------------
9. Other questions
Pls email me or chat with me on WhatsApp directly.
Email:tingjin88@hotmail.com
My Whatsapp: 008613536287898
---------------------------------------------------------------------------------------------
