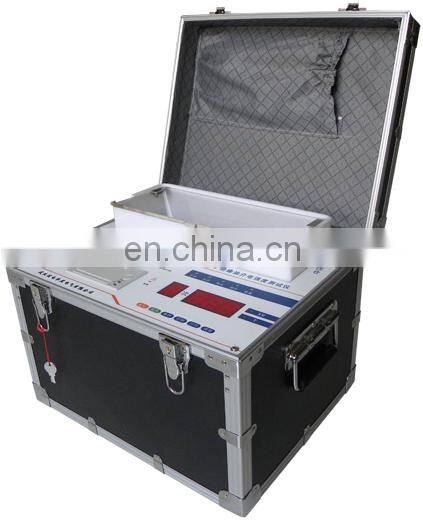

Help CenterHCYJ Transformer Oil Test Equipment
Related Products
-
High Voltage Regulators Generator HCZGF 220VUS$ 500 - 500MOQ: 1 Set -
High Voltage Transformer MeterUS$ 500 - 500MOQ: 1 Set
-
Transformer Adjustable Pressure RegulatorUS$ 500 - 500MOQ: 1 Set
-
High Voltage Testing Transformer SpecificationUS$ 500 - 500MOQ: 1 Set
-
High Voltage Pressure Transformer Control Console StabilizerUS$ 500 - 500MOQ: 1 Set
Product feature:
i. Developed according to the national standard GB-86 insulating oil dielectric strength testing method
ii. LCD screen can display test procedure and test result
iii. All the human interaction operations complete by the rotating mouse
iv. Easy for customers to measure the breakdown voltage of all kinds of oil by HCYJ-501
v. Can print the test result by the micro printer internal the tester
vi. Can upload the test data to PC from RS232 for data analyzing
vii. The special circuit design makes the tester has a good performance at stability and anti-noise
Functions:
i. Breakdown test of user-defined
ii. Proof test
iii. Calibration interface for customers
iv. Unloading data to PC and making word report automatically.
v. Result print
Technical index:
i. Rated power supply: 220V AC, ±10% 50/60Hz
ii. Output voltage: 0 to 80, 0 to 100kV AC
iii. Rate of voltage rise: 2KV/s±10%
iv. Measuring precision: 3 class
v. Consecutive trials: 1 to 6 time
vi. Mixing time: 0 to 99 seconds
vii. Placing time: 0 to 9 minutes and 59 seconds
viii. Saves 50 groups of data most
ix. Voltage limit setting for proof test: 20 to 70kV
x. Hold time for proof test: 0 to 10 minutes
xi. Environment temperatures: 5 to 40°C
xii. Relative humidity: ≤75% RH
xiii. Size: 420 mm× 380 mm× 410 mm
xiv. Weight: 47kg
Wuhan Hance Electric Co., Ltd is a professional manufacturer specializing in developing, producing and marketing electricity meters in electricity industry. Our main products include transformer calibration test equipment, measuring equipment, a variety of electrical test equipment, and automatic substations; they are widely used in electricity, water conservancy, oil, railway, mining, chemical, surveying, teaching, electronics, and other industries.
Our company has always insisted on the guideline of “complete adjustment and 100% inspection”, to enture all devices are fully qualified, as well as a perfect pre-sales services system. The warranty system of “One year warranty and lifetime services” can ensure that every user will enjoy our best service.
