Home > Products > Electrical Measurement Equipment > HJ-110G1 Potential Transformer

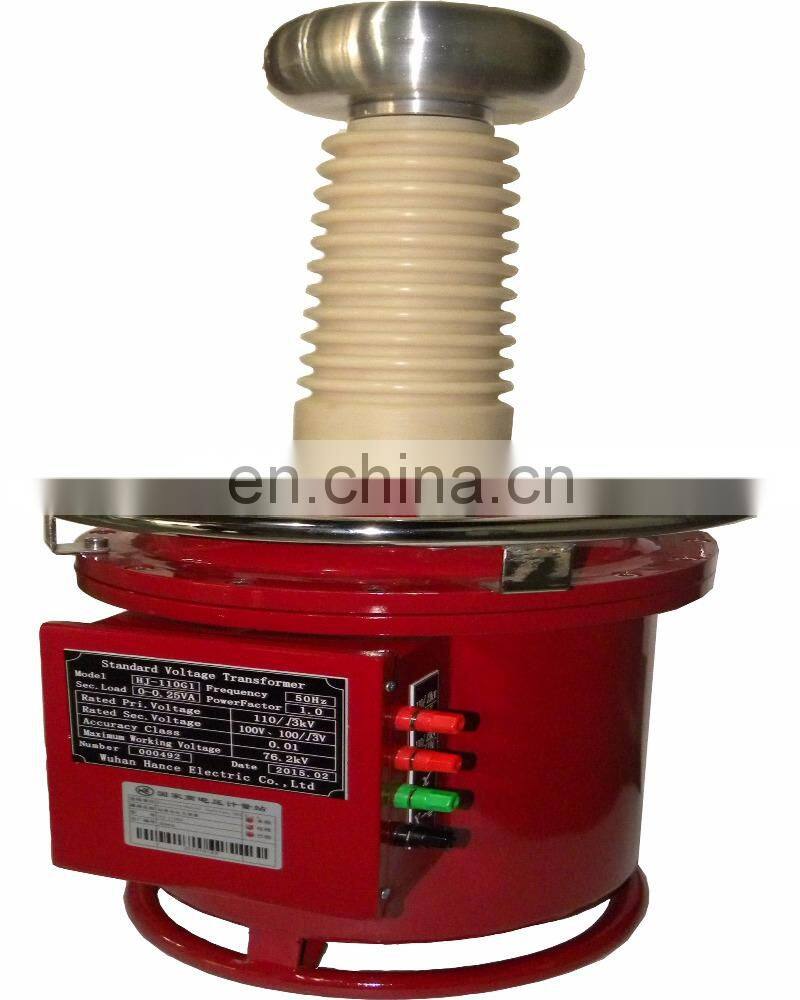

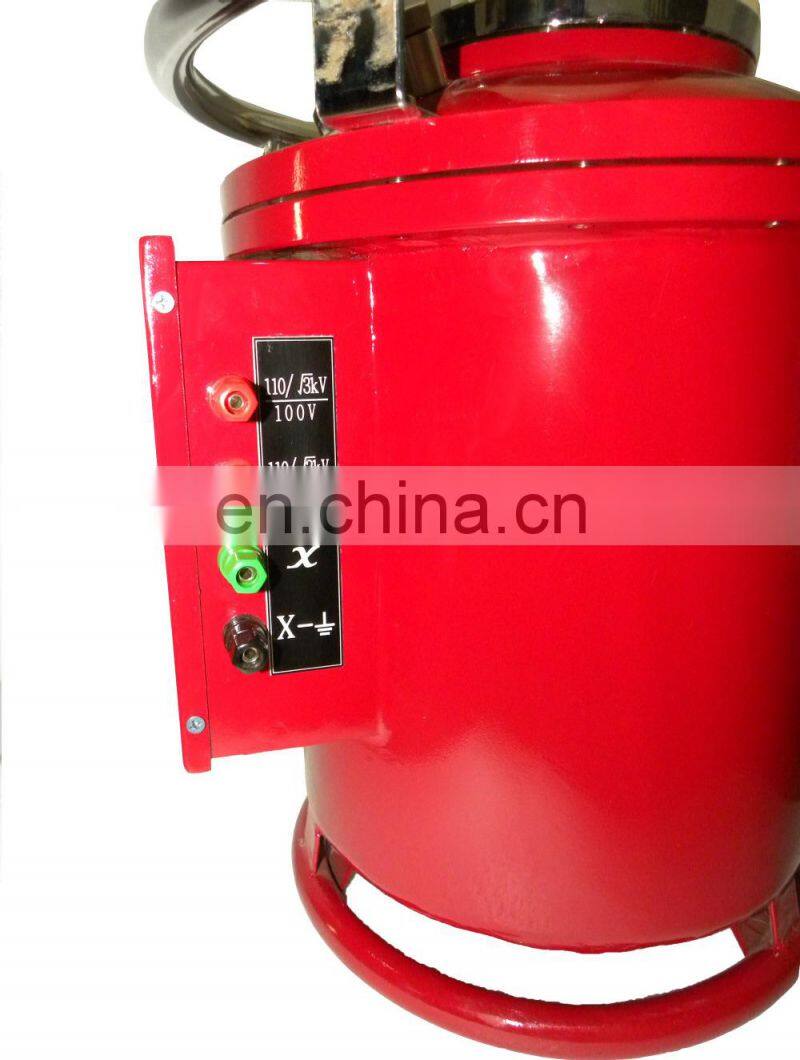

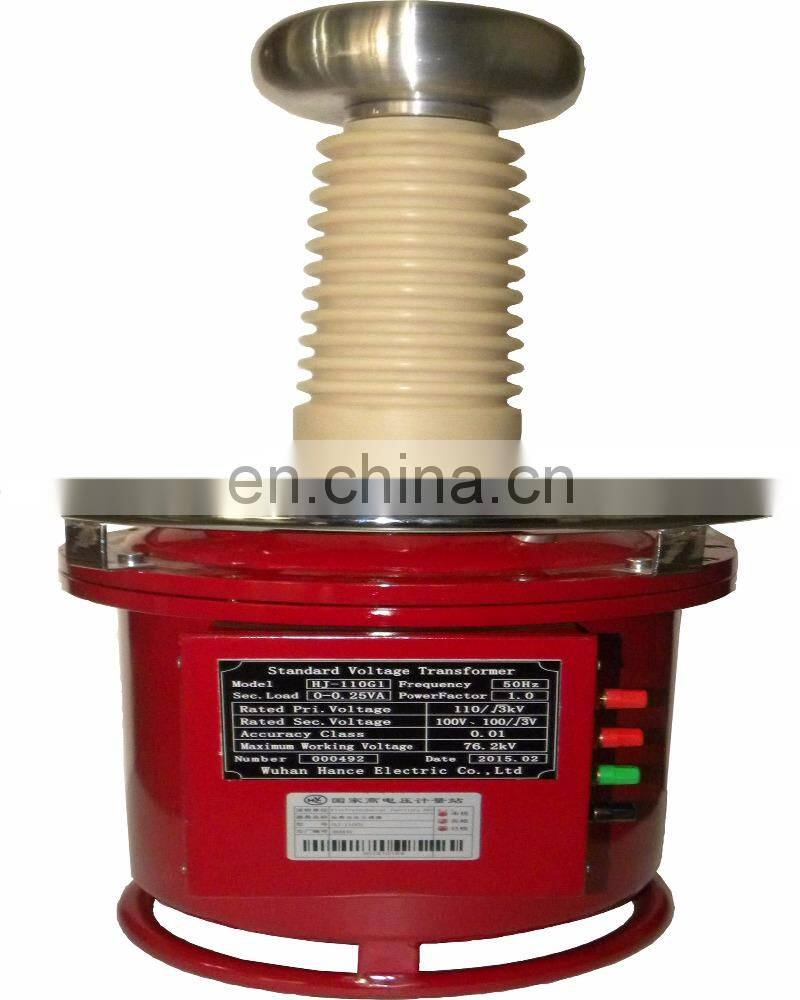

HJ-110G1 Potential Transformer
- 200 Set / Sets per Month
- wuhan/shenzhen/shanghai
- T/T Credit Card
Product Details
Brand Name: | hance | Place of Origin: | Hubei, China | Model Number: | HJ-110G1 |
Usage: | Power | Phase: | Single | Coil Number: | Autotransformer |
Coil Structure: | Toroidal |
Product Description
Main Features
PT of 110kV, Class 0.01 which has high voltage class and high accuracy can be used to calibrate the PT 110kV/100V, below class 0.05. It can calibrate the PT from 20% to 120% of the rated voltage. And it can be burdened with 0.25VA secondary load when the secondary voltage is 100V.
Technical Index
1. Rated voltage ratio:110/√3 kV /100V;110/√3kV/100/√3V
2. Rated secondary capacity: 0-0.25VA
3. Accuracy class: Class 0.01
4. Testing voltage: Testing voltage: primary winding is 1.2 /1 min voltage withstand . Secondary winding is above earth and 2kV/1min power frequency withstand.
5.Rated frequency:50Hz
6. Maximum working voltage: 76.2kV
7. Inflatable, with SF6, single phase and semi insulating.
8. Size: 42(L)*42(W)*80(H) (cm)
Wuhan Hance Electric Co., Ltd is a professional manufacturer specializing in developing, producing and marketing electricity meters in electricity industry. Our main products include transformer calibration test equipment, measuring equipment, a variety of electrical test equipment, and automatic substations; they are widely used in electricity, water conservancy, oil, railway, mining, chemical, surveying, teaching, electronics, and other industries.
Our company has always insisted on the guideline of “complete adjustment and 100% inspection”, to enture all devices are fully qualified, as well as a perfect pre-sales services system. The warranty system of “One year warranty and lifetime services” can ensure that every user will enjoy our best service.
