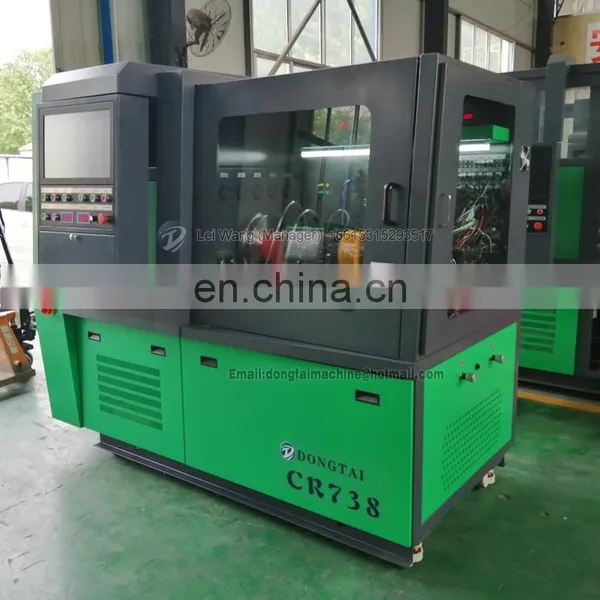

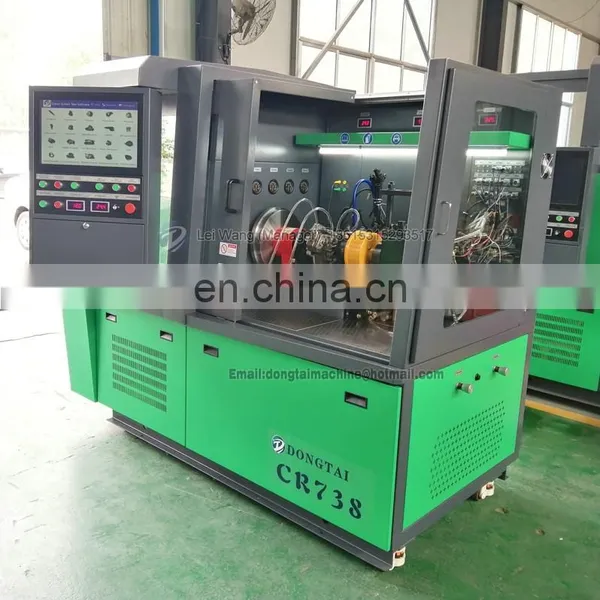

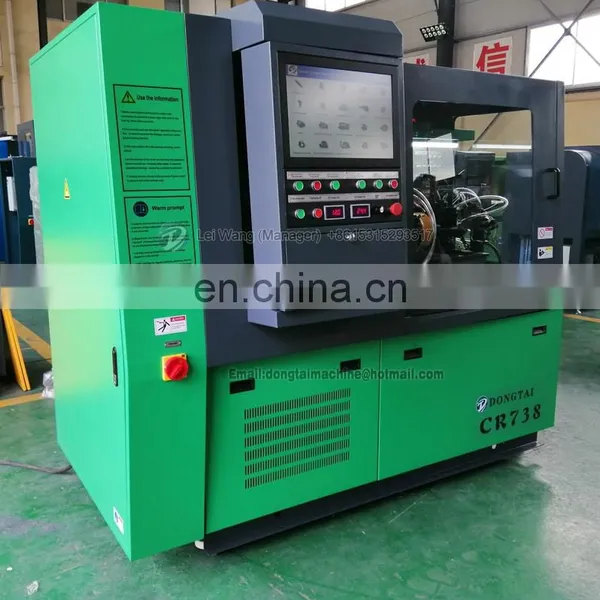

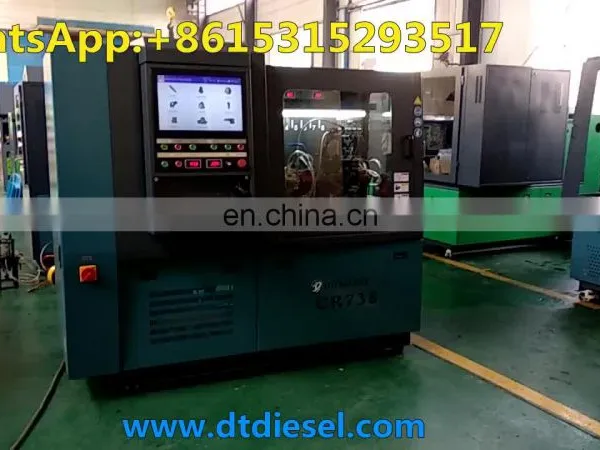

This CR738 mainly test for common rail pump and injector,EUI/EUP and HEUI
1.Motor power:11KW
2.Industrial PC with touch screen
3.Compressor cooling
4.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)
5.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)
6.Flow meter(German ZDM) detecting the fuel injection flow rate
7.Flow meter(German ZDM) detection of common rail pump
8.Flow meter(German KRACHT) to detect oil flow
9.Flow meter(German KRACHT) detection of diesel oil return flow
10.2sets of B-OSCH common rail +DRV
11.Oil tank temperature sensor
12.Diesel fuel tank temperature sensor
13.Diesel supply temperature sensor
14.Diesel return temperature sensor
15.Oil pressure sensor
16.Diesel supply pressure sensor
17.Diesel return pressure sensor
18.Diesel pump internal pressure sensor
19.Oil pressure closed loop control module
20.The device is convenient to move and position the roller
21. Adjustable cylinders numbers: 12
22. RPM:0-4000
23. Support RPM Pre-set.
24. Temperature control system.
25. Positive Pressure System.
26. Negative Pressure System.
27. Air Supply
28. DC Power supply.
29. Internal Pressure of VE Pump
30. Oil return of VE Pump
31. Travel of Tooth Bar (Optional)
32. Oil Lubricate. (Optional)
33. Capability with Pump Type: All in-line and Rotary Pump .
CR738 Common Rail Injector Pump Test Bench Diesel Fuel Injection Pump Test Bench Function:
Common Rail System Testing:
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world’s first successful development)
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
Diesel Fuel Injection Pump Testing Function:
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjust the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking the sealing of injection pump body.
10. Install tube of auto-sucking oil supply can check on oil supply pump (including VE Pump)
11. Checking the travel of stroke (Opitonal)
12. Oil lubricate (Optional)
13. Forced cooling system (Optional)
EUI / EUP Testing Function
HEUI Testing Function.
Original package
Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
