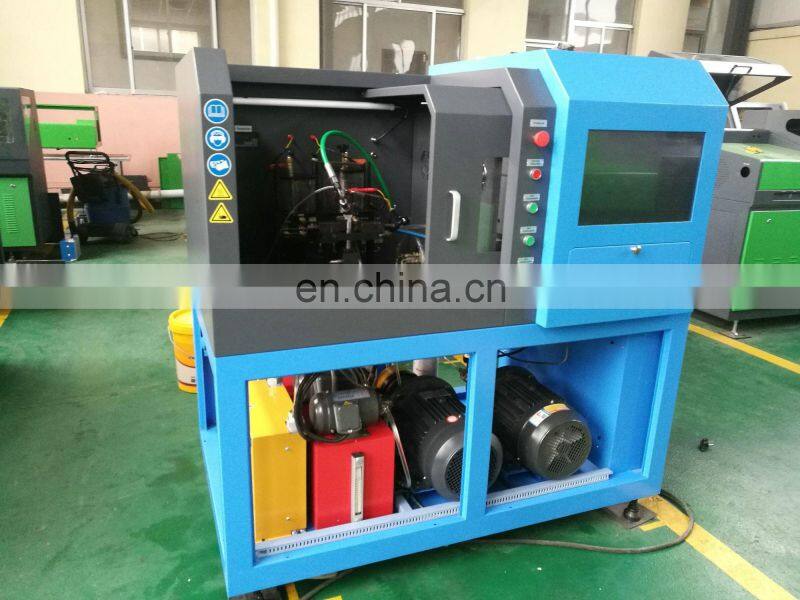

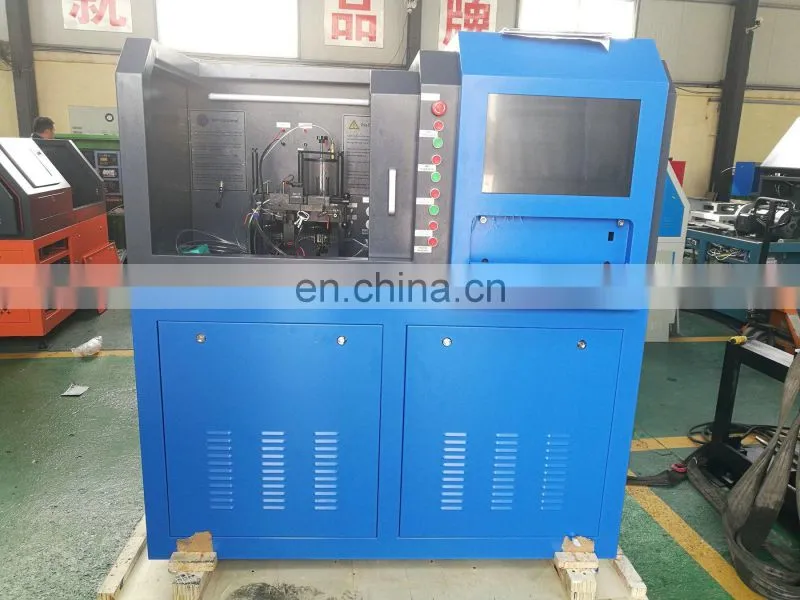

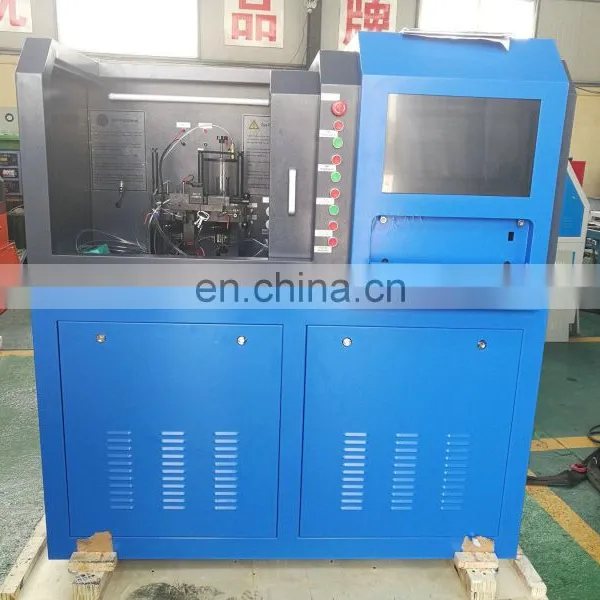

HAuto Testing Equipment CR318 Electrical HEUI Common Rail
1.Product description
Testing range:
1.Bosch IQAcoding
2.With all functions of CR300 and CR305

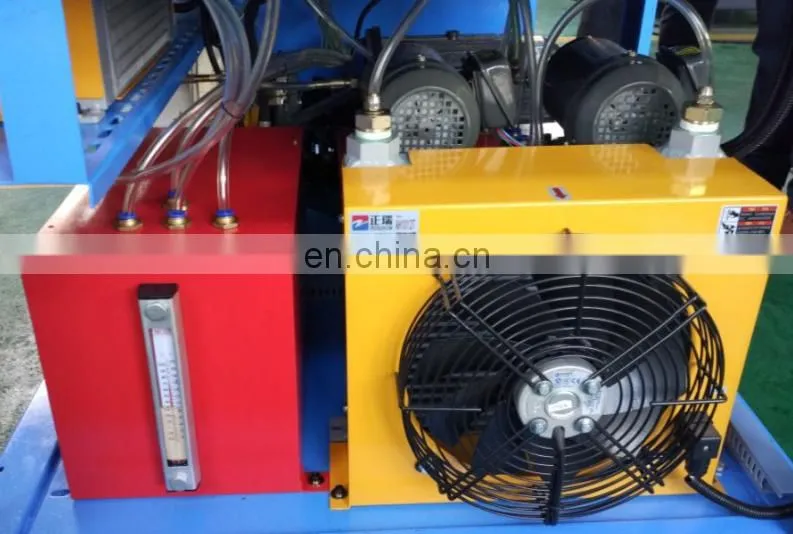

3.inbuilt with reliable actuated pump
4.oil pressure flexible adjustment through automatic or manual ways
5.Oil flow-back self testing
6.Oil actuating response time testing
7.Fuel injection response time testing
8.Solenoid resistance & inductance testing
9.Solenoid pull-up time testing
10.Dynamic condition internal leakage testing
Function:
Test of all the manufacturers of common rail injector
Test all of the manufacturers of piezo injectors
Test CAT HEUI (Oil common rail) injector
Leak testing:
1,Oil static condition leakage testing
2,Fuel static condition leakage testing
3,Oil flow-back under dynamic condition testing

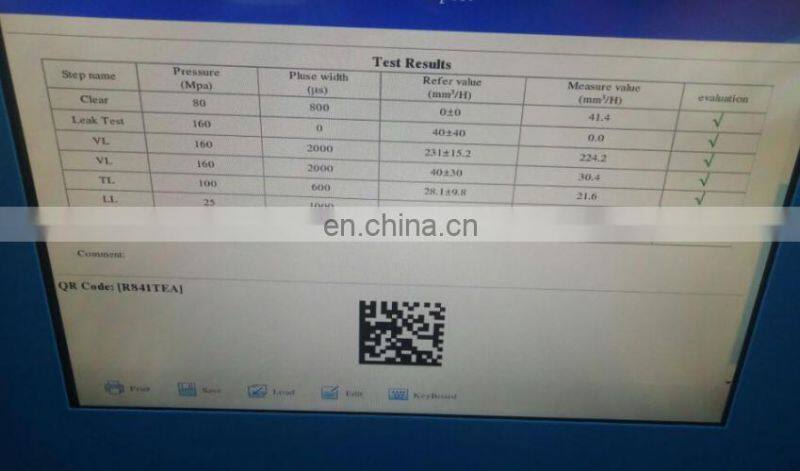

Injection testing:
1,VL testing (Max injection)
2,TL testing (Middle speed)
3,LL testing (Idle speed)
4,VE testing (Pre-injection)
5,Starting testing
6,Oil flow-back under dynamic condition testing
2.Technical characteristic
| adjustable rotation speed range |
0~4000rpm |
Rack travel range | 0~25mm |
| Double series of graduates | 45/150CC | 3-phase power supply | 380V/50Hz or on request |
| Volume of oil tank | 100L | Flywheel inertia’s moment | 0.8kg·m2 |
| Temperature stabilization | 40±2℃ | Center height | 125mm |
| Test oil filtering unit | 5μ | Output power | 7.5kw~15kw |
| DC. Supply | 12/24V | Overall dimensions | 200X90*170CM |
| Feed pressure | 0~0.4MPa (low), 0~4MPa | Net weight (kg) | 1000 |
| Air pressure (MPa) | 0.03~0.3 | Average trouble-tree working time of test stand | ≥2500h3.Details |
3.Details
