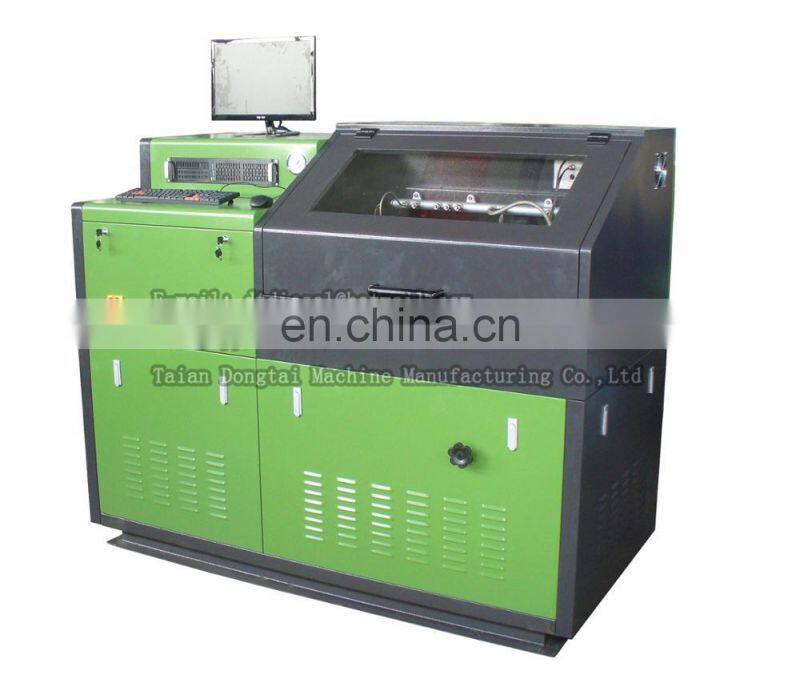

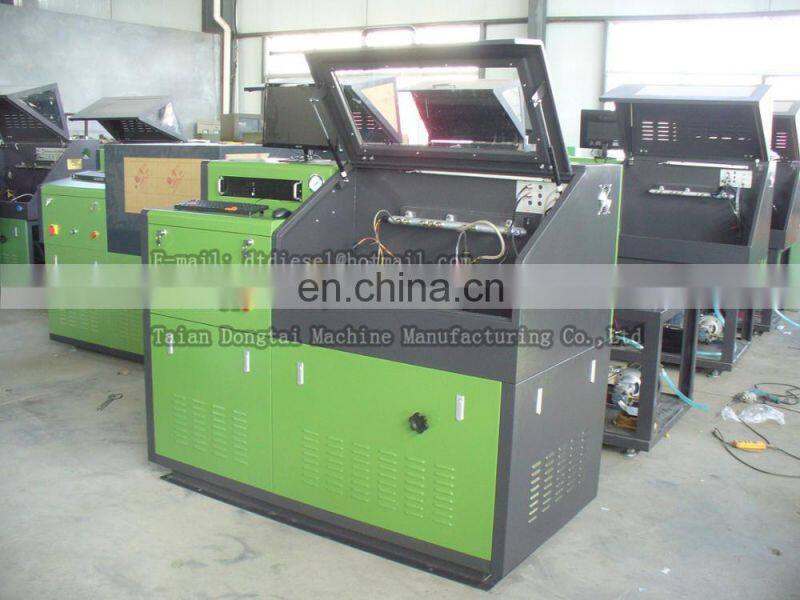

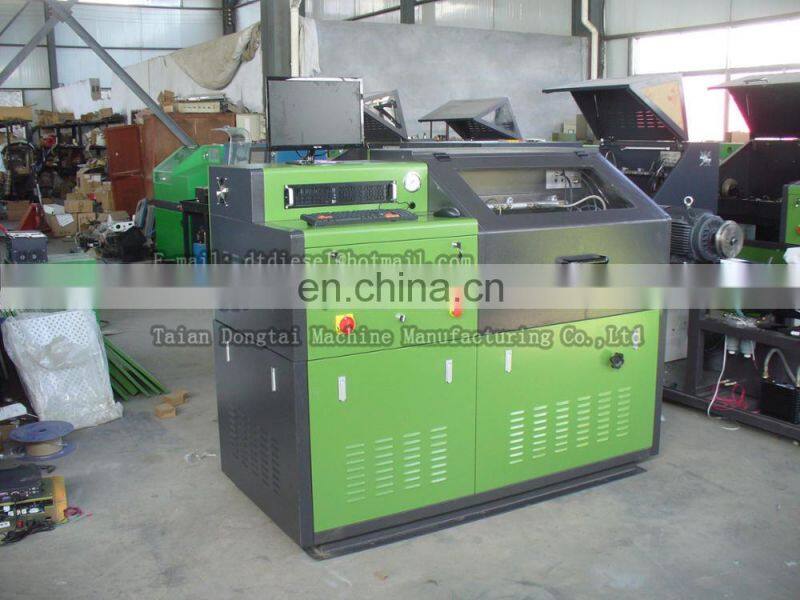

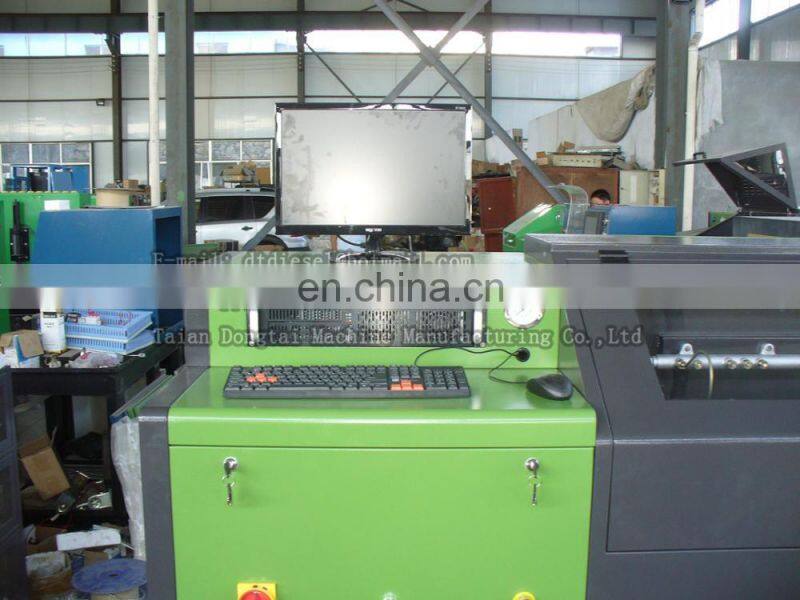

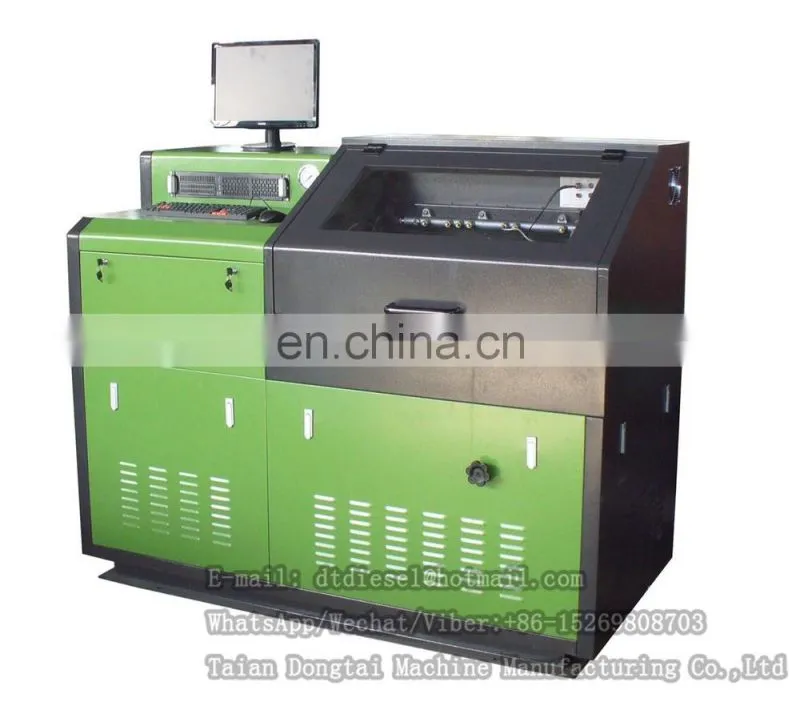

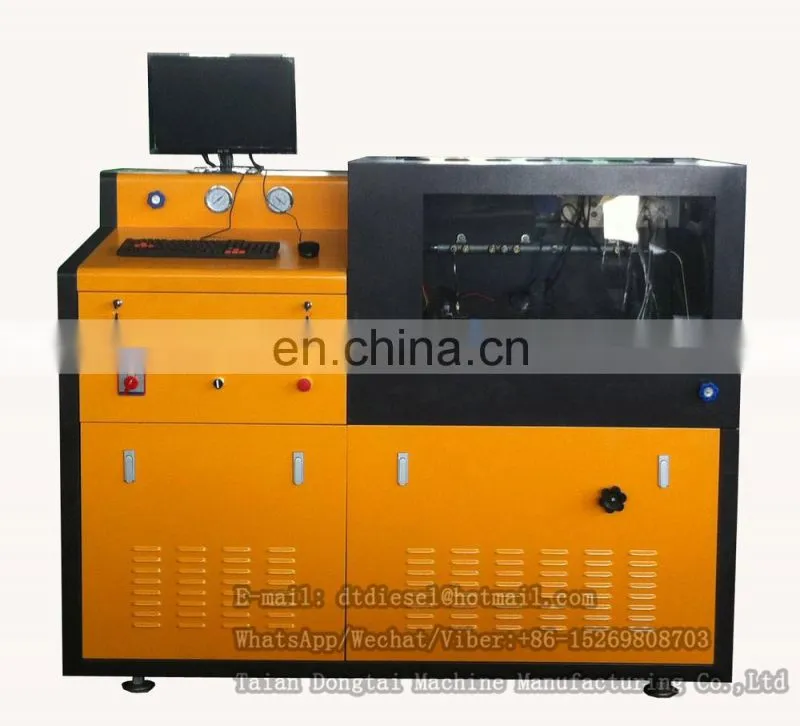

CR3000A Computer Motherboard Test Bench for Fuel Injection Pump Repair

CR3000A Common Rail Injector and Pump Test Bench

Description
CR3000A COMMON RAIL TEST BENCH function is to mimic diesel engine ECU (Engine Control Unit), while providing Bosch, Denso, Delphi, Siemens common rail system control signal (CP1 / CP2 / CP3 / HP3 / HP4 / DELPHI), driven high pressure were rail and high-pressure common rail injector pump to work, drive signal parameters users can set their own situation, and kept in groups for easy maintenance personnel working on the high-pressure common rail system and maintenance of the state to judge.

Features
1, support high-speed solenoid valve common rail injector at the same time, and support for third-generation common rail technology, piezoelectric crystal high-pressure common rail injector (optional feature);
2, 6-channel common-rail injector;
3, support a variety of rail pressure sensor (BOSCH / DEOSN / DELPHI);
4, the intelligent PID algorithm, more accurate pressure control;
5, two aspects of the short-circuit protection hardware and software, themachine is more reliable;
6, multiple language options side, Chinese / English / Russian;
7, security designed to prevent operator misuse, use more secure.

Technical parameters
1.Main motor speed: 0-4000r/min can be adjustable.
2.Motor power: 7.5kw,11kw,15kw,18.5kw optional.
3.Fuel injector open voltage control range: 12V,80V, 150V
Control accuracy:phase adjustment
4.Injector opening frequency control: 0-1000HZ
Control accuracy:1HZ
5.Fuel injector hold time control: 0-65535us
6.Delivery Oil count control: 0-1000 times
Control accuracy: 1times
7.Fuel pressure control control:0-2000bar
Control accuracy: 1bar
8.Electronic power: 3 Phase 380V or 3 Phase 220V

>>> Main products include:
     1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2,  Injection pump test bench 3,auto tools 4  Auto parts 5, special vehicles 6 , Turbocharger.......
     Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .
