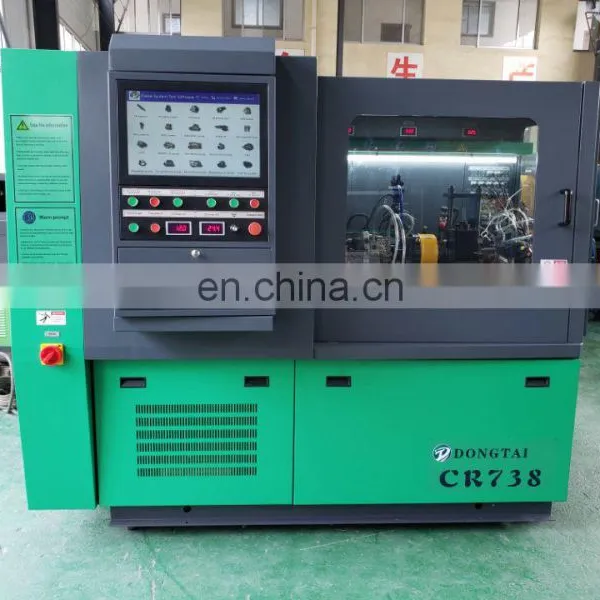

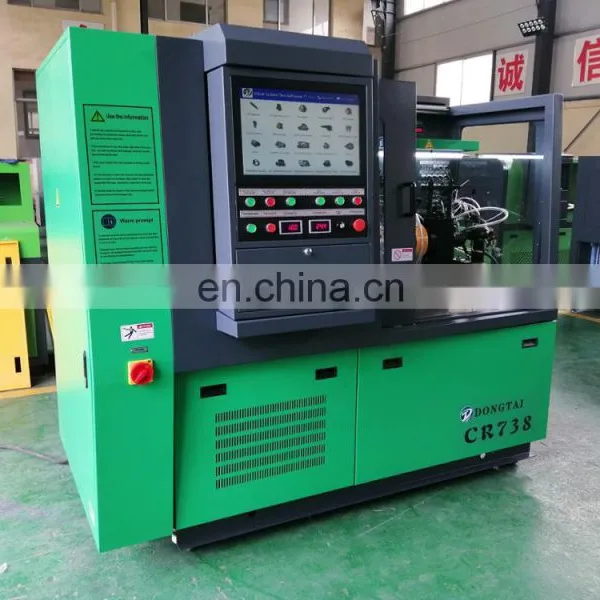

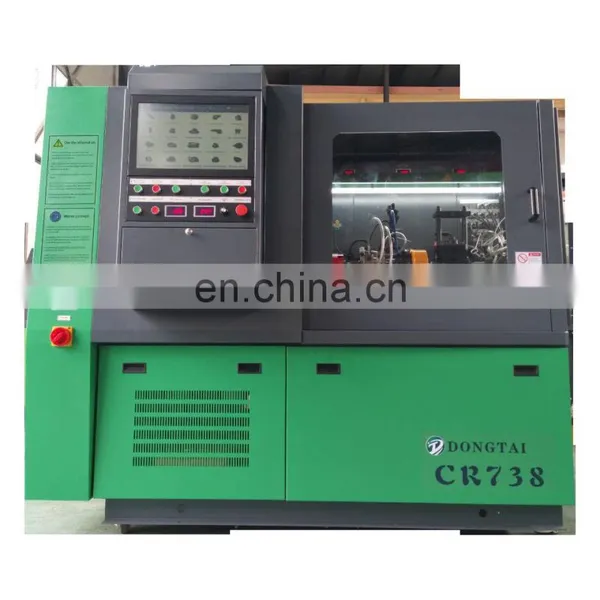

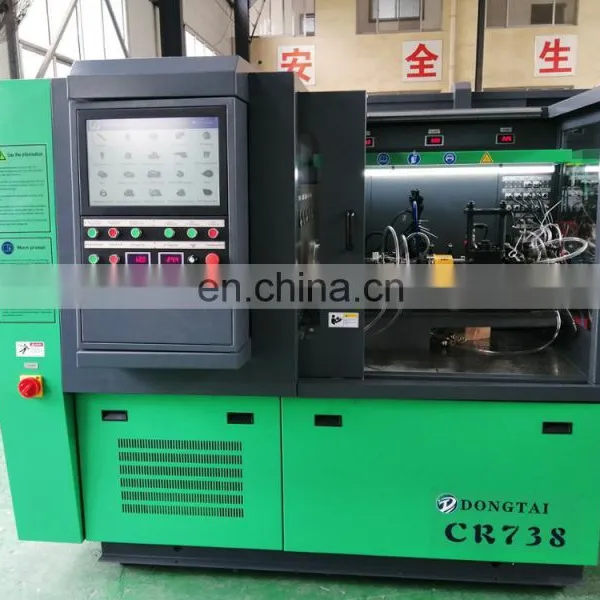

CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI

Taian Dongtai Machine Manufacturing Co., Ltd.
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI thumbnail-1
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI thumbnail-2
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI thumbnail-3
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI thumbnail-4
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI thumbnail-5
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI thumbnail-6
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI photo-1
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI photo-2
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI photo-3
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI photo-4
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI photo-5
CR738 Fuel Pump Test Denso Common Rail Injector Test Bench EUI EUP HEUI photo-6
US$ 8,500 - 11,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGTAI, Dongtai
Place of Origin:
Shandong, China
Model Number:
CR738
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGTAI, Dongtai
Place of Origin Shandong, China
Model Number CR738
Usage Auto Testing Machine



FCR738 Fuel pump test denso common rail injector test bench EUI EUP HEUI


TECHNICAL PARAMETERS
Main power
380V AC 220V AC(Optional)
Phase
Three single(optional)
Frequncy
50Hz/60Hz
Current
45A(MAX)
Mian motor
22KW
Main motor rotation
0-4000 RPM/MIN
Oil motor HP/ Flow
0.19KW / 13L/MIN
Diesel motor HP /Flow
0.19KW / 13L/MIN
Control circuit voltage
DC12V/24V 350W
ECU internal voltage
0-200V DC(MAX)
Oil tank volume
30L
Diesel Tank volume
52L
Temperature control
Heating/Forced cooling
Max rail pressure
180MPa,240MPa(Optional)
Flowmeter(injection)
4-550ml/min
Flowmeter(fuel supplying)
1-400L/H
Flowmeter(fuel flow back)
1-400L/H
Flowmeter(Oil)
5-600L/H
Center distance between motor and working bench
125mm
Weight
1700KG
Outlook size net
(LXWXH)2028X1400X1970
Wooden cage
(LXWXH)2028X1400X1970

 CR738 Fuel pump test denso common rail injector test bench EUI EUP HEUI



CR738 Fuel pump test denso common rail injector test bench EUI EUP HEUI

 CR738 Fuel pump test denso common rail injector test bench EUI EUP HEUI

Packaging & Shipping



CR738 Fuel pump test denso common rail injector test bench EUI EUP HEUICR738 Fuel pump test denso common rail injector test bench EUI EUP HEUI
