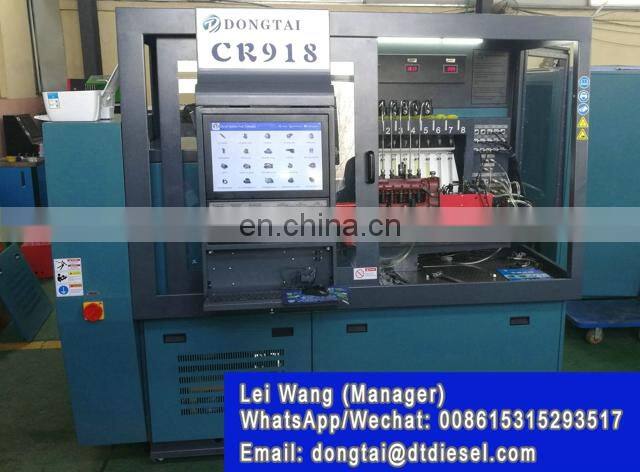

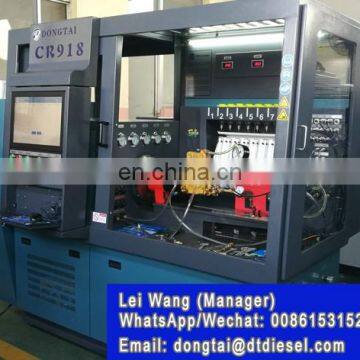

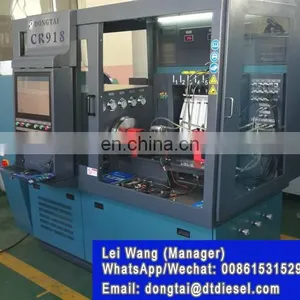

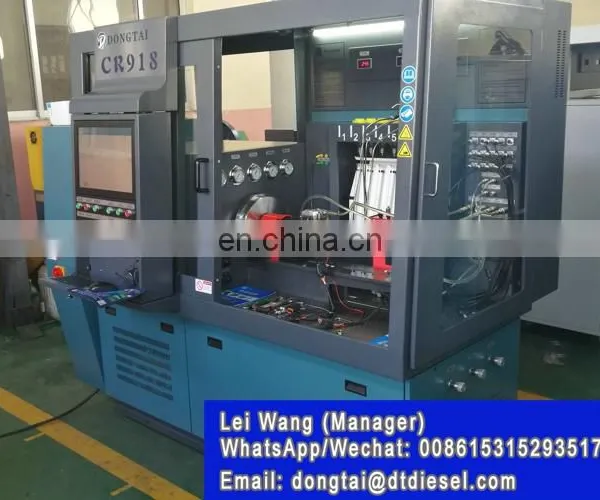

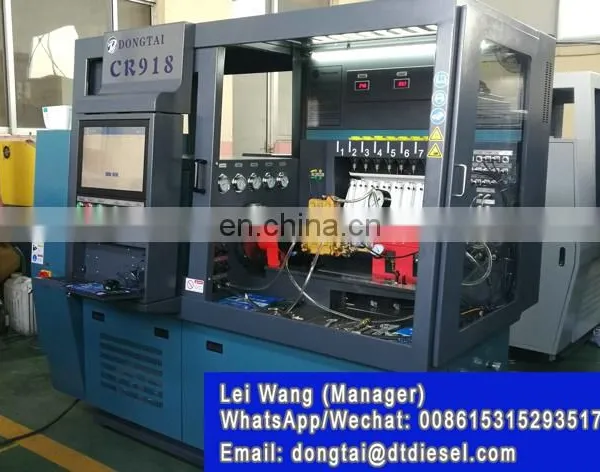

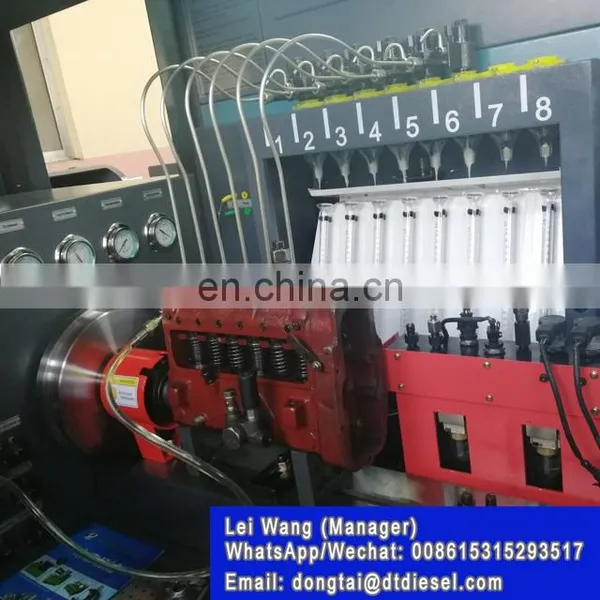

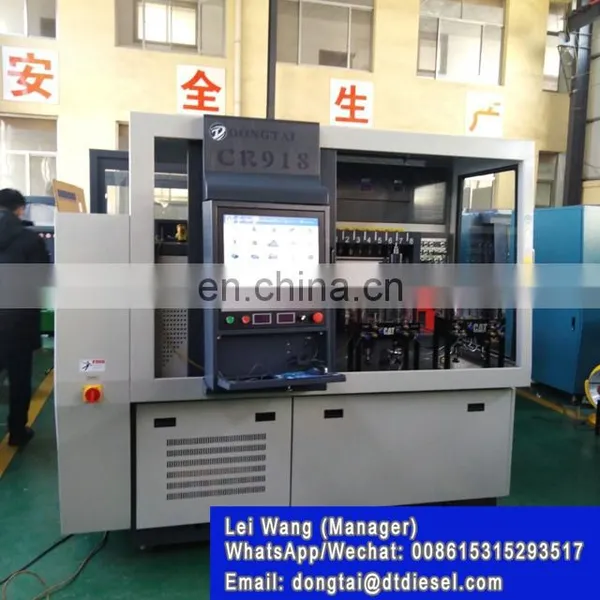

COMPREHENSIVE COMMON RAIL TEST BENCH CR918
- Qingdao
- T/T Credit Card
You May Like
-
DONGTAI CHINA SUPPLY CR918 Most Advanced Common Rail Test Bench
-
Auto Electrical CR918 Common Rail Diesel Fuel Pump Calibration Machine Injector Test Equipment
-
High Pressure CR918 Common Rail Diesel Injector Pump Part Testing Repair Calibration Machine
-
CR738 All In One Line Comprehensive Common Rail Diesel Fuel Injector&Pump Testing
-
CR738 High Quality Common Rail Diesel Injection Pump Test Bench
-
CR738 Common Rail Test Bench,EUI/EUP TEST and HEUI TEST
Product Details
| Brand Name | DONGTAI | Place of Origin | Shandong, China | |
| Model Number | CR918 | Power | Electronic |
Product Description
Function:

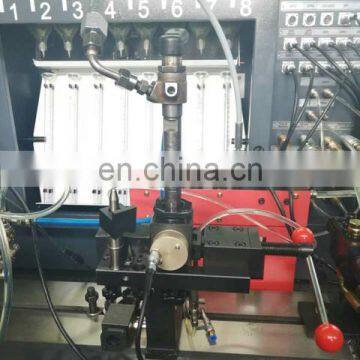

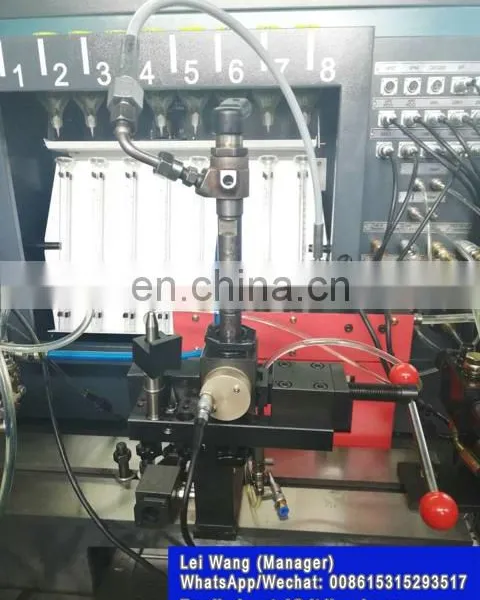

1, All common rail injector (include piezo )
2,All common rail pumps
3,Denso HP0 PUMP testing
4,EUI/EUP testing
5,HEUI injector testing
6,HEUI pump testing
7,CAT 320D pump testing
8,Electronic pump testing
9,Measurement unit testing
10,Armature stroke AHE test

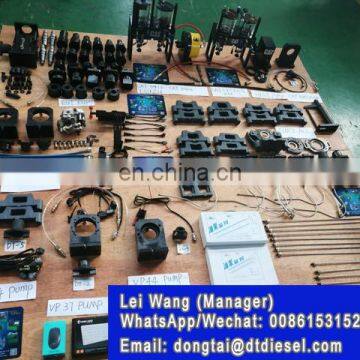

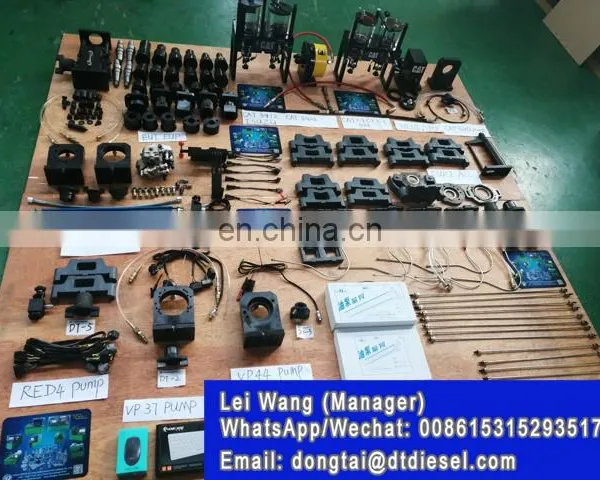

Optinal Function:
1,VP37/VE37 electronic pump
2, Vp44 pump test
3, TICS electronic pump
4, Electronic unit pump
5, General pump test(E2 pump)
Main power | 380V AC 220V AC(Optional) | |
Phase | Three single(optional) | |
Frequncy | 50Hz/60Hz | |
Current | 45A(MAX) | |
Mian motor | 18.5KW | |
Main motor rotation | 0-4000 RPM/MIN | |
Oil motor HP/ Flow | 0.19KW / 13L/MIN | |
Diesel motor HP /Flow | 0.19KW / 13L/MIN | |
Control circuit voltage | DC12V/24V 350W | |
ECU internal voltage | 0-200V DC(MAX) | |
Oil tank volume | 30L | |
Diesel Tank volume | 52L | |
Temperature control | Heating/Forced cooling | |
Max rail pressure | 180MPa 240MPa(Optional) | |
Flowmeter(injection) | 4—550ml/min | |
Flowmeter(fuel supplying) | 1—400L/H | |
Flowmeter(fuel flow back) | 1—400L/H | |
Flowmeter(Oil) | 5—600L/H | |
Center distance between motor and working bench | 125mm | |
Weight | 1100KG | |
Outlook size net | (LXWXH)2250X1260X1920 | |
Wooden cage | (LXWXH)2350X1500X2100 | |

Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
Contact: Wang Lei (Manager)
Tel: +86-538-2096180
Skype: dontaimachine
WhatsApp / Wechat / Viber: +86 15315293517Email: dongtaimachine@
