Diesel Pump Common Rail Diesel Injector Test Bench

Taian Dongtai Machine Manufacturing Co., Ltd.
Diesel Pump Common Rail Diesel Injector Test Bench thumbnail-1
Diesel Pump Common Rail Diesel Injector Test Bench thumbnail-2
Diesel Pump Common Rail Diesel Injector Test Bench thumbnail-3
Diesel Pump Common Rail Diesel Injector Test Bench thumbnail-4
Diesel Pump Common Rail Diesel Injector Test Bench thumbnail-5
Diesel Pump Common Rail Diesel Injector Test Bench thumbnail-6
Diesel Pump Common Rail Diesel Injector Test Bench photo-1
Diesel Pump Common Rail Diesel Injector Test Bench photo-2
Diesel Pump Common Rail Diesel Injector Test Bench photo-3
Diesel Pump Common Rail Diesel Injector Test Bench photo-4
Diesel Pump Common Rail Diesel Injector Test Bench photo-5
Diesel Pump Common Rail Diesel Injector Test Bench photo-6
US$ 6,500 - 8,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGTAI
Place of Origin:
Shandong, China
Model Number:
CR815
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGTAI
Place of Origin Shandong, China
Model Number CR815
Usage Auto Testing Machine
Product Description

Product Application

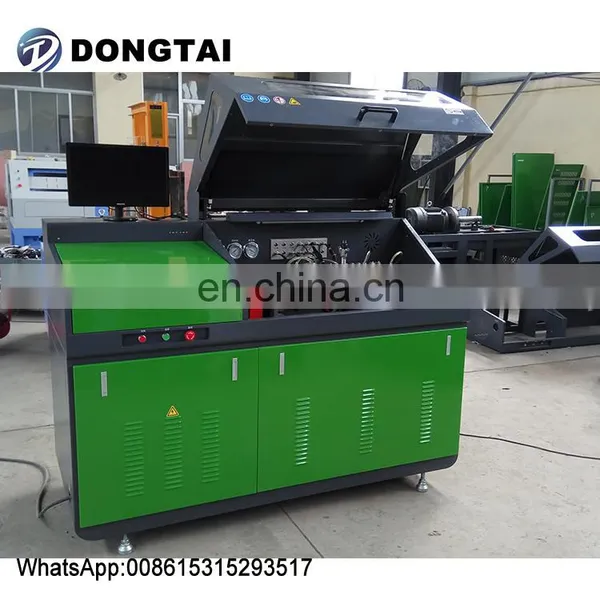

CR815 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system,

can test common rail pump,common rail injector at same time.

SPECIFICATIONS FOR
1,Pump testing: pump delivery, pressure,PVC working status, leakage of itself,

2,Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)

3,it can test pressure sensor,and DRV valve

4. Supports system: BOSCH,DELPHI,DENSO,SIEMENS

5. Testing data inside( pump and injector)

6. Electronic fuel delivery measuring, automatic detection.

7, HEUI injection system testing

8,EUI/EUP injection system testing

Technical parameters

1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW

2. Electronic power: 3 PHASE 380V or 3 PHASE 220V

3. Motor speed: 0-4000RPM

4. Presure adjustment: 0-2100bar

5. Flow testing range: 0-600ml/1000times

6.Flow measurement accuracy:0.1ml

7. Temperature range: 40+-2

8. Cooling system: fan or forced cooling
other products
Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

Packing & Delivery
Packaging
Size
1.9 Mx 1.14m X 1.5m
Weight
650kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Company information

Main products include:

1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......

Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
