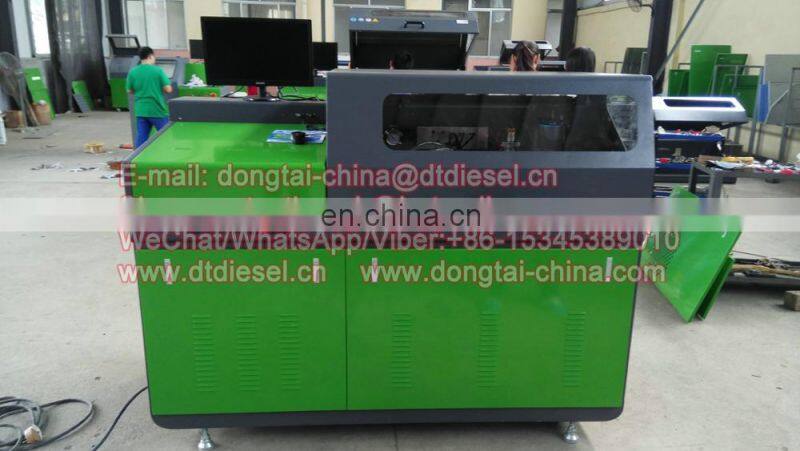

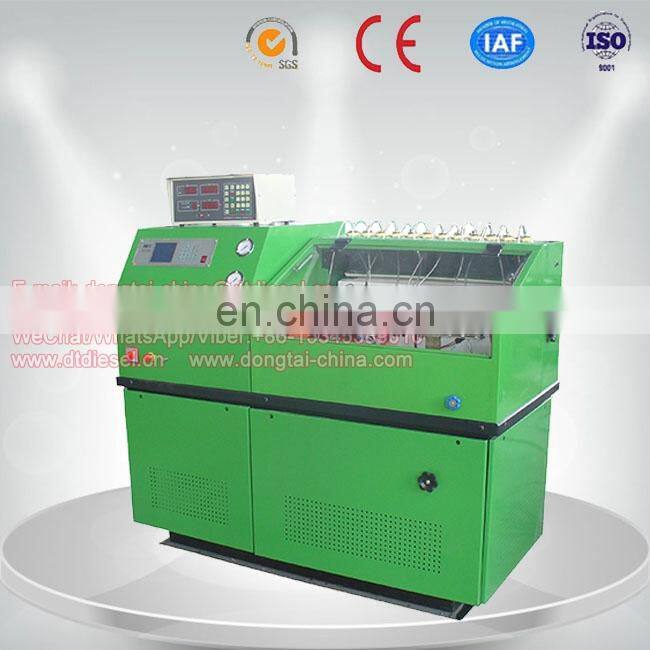

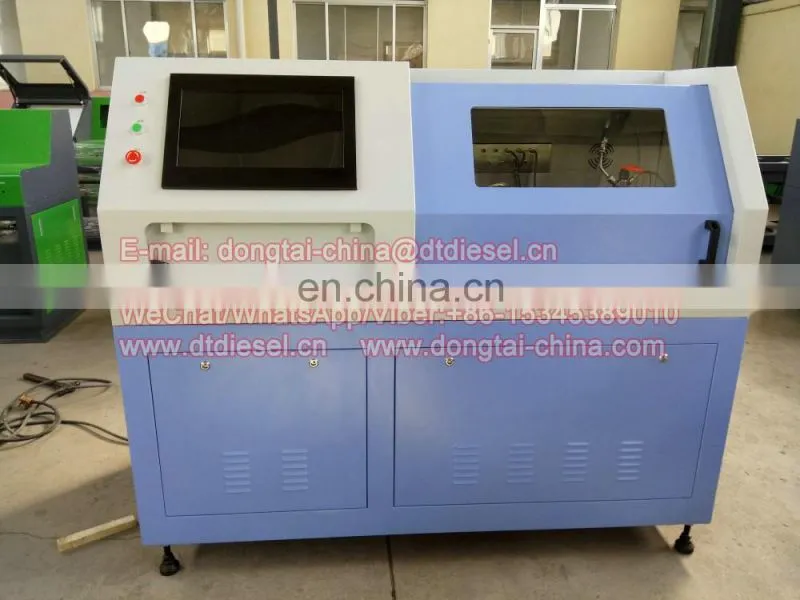

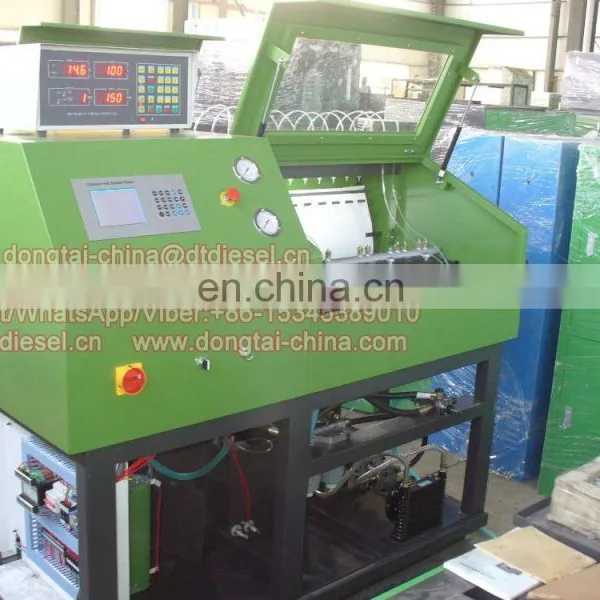

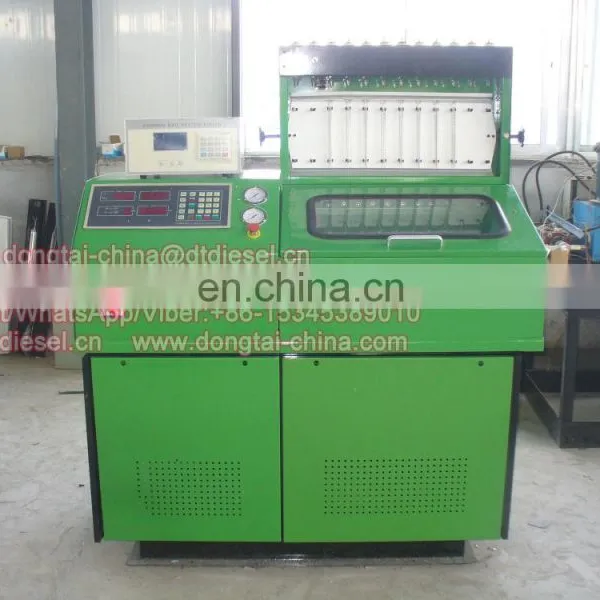

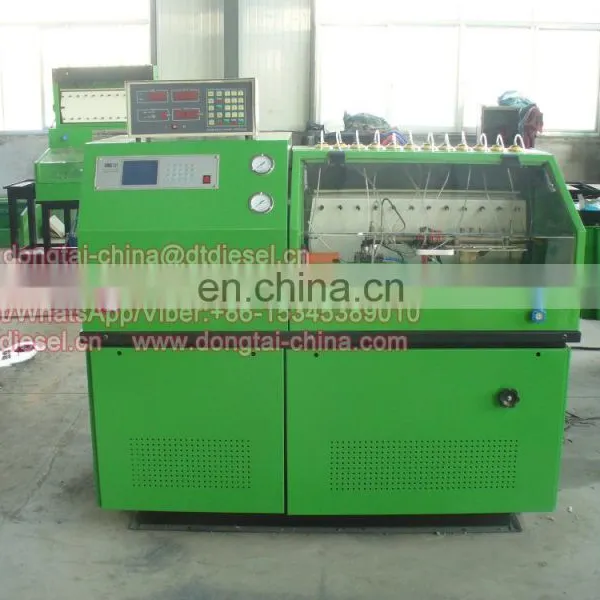

Automatic common rail CR3000 used fuel injection pump test bench price
1. It can check DENSO, DELPHI and SIEMENS.
2. Touch screen operation, easy to learn and use.
3. Automatic closed-loop control rail press accuracy displayed is± 0.1Mpa.
4. Variable frequency drive common rail pump to produce maximum pressure 180Mpa.
5. Oil injection and oil return are automatically detected and clearly displayed on the large screen.
6. Built-in standard database of common rail injector, data can be updated and added freely by users.
7. The standard database contains the waveform control data of all types of injector, and it can output the standard waveform control signal to the injector.
8. Industrial computer motherboard and embedded operating system windows XP. Its screen displays basic status such as the rail pressure, temperature, motor operation, speed, heating, cooling, also has some windows for fuel injection pump test, common rail test, fuel measurement, parameter setting, injection waveform, problem analysis and data reports.
| Motor power | 5.5kw |
| Fuel pump rotation speed | 0-4000rpm |
| Test range of rail pressure | 0-1800bar |
| Test precision of rail pressure | ±0.5Mpa |
| Test precision of flow sensor | 0.3% |
| Measuring range of flow sensor | 0.008-4L/Min |
| Temperature of test oil | 40±2°C |
| Filter precision of test fuel | less than 5μ |
| Capacity of tank | 80L |
| Dimension | 1780X900X1800 MM |
| Aggregate weight | 300KG |
| Electricity | 380V, 50Hz, 3 phase/220V,60Hz, 3 phase |
1. Advanced equipment
2. Experienced professional engineers
3. Top technology of mould r&d, manufacturing, die steel, heat treatment
4. Professional in design,manufacte and product internal combustion engine testing equipment
Functions
. Inspecting injector atomization quality.
. Inspecting injector sealing performance.
. Test the cavity pressure of distributor pump.
. Automatic inspection and evaluation of injector.
. Inspection on sealing performance of CR pump and rail.
. Inspecting injector spray volume and oil returned volume.
. Huge database storing common rail injuector parameters can be updated regularly.
. Inspection on high pressure oil supply performance of common rail pump.
. High strength transparent outer cover ensuring the safety of equipment and person, test the common rail pump.
. Pressure 200 - 1800 bar adjustment, control precious ± 15 bar. Test BOSH / DENSO / DELPHI / SIEMENS CRDI injuction etc.
