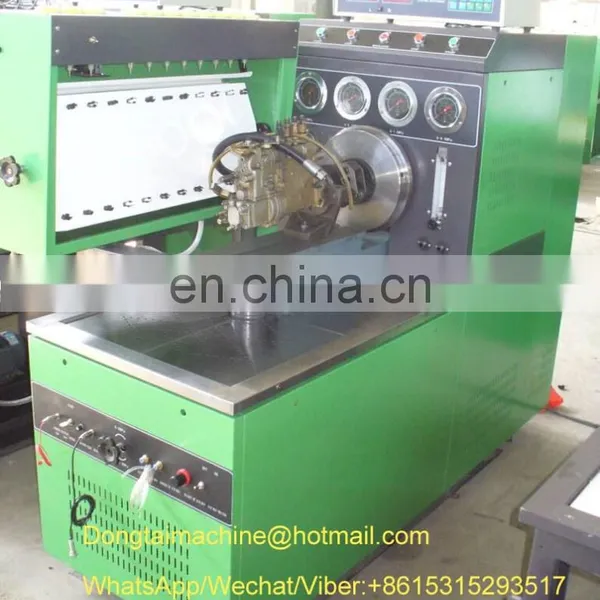

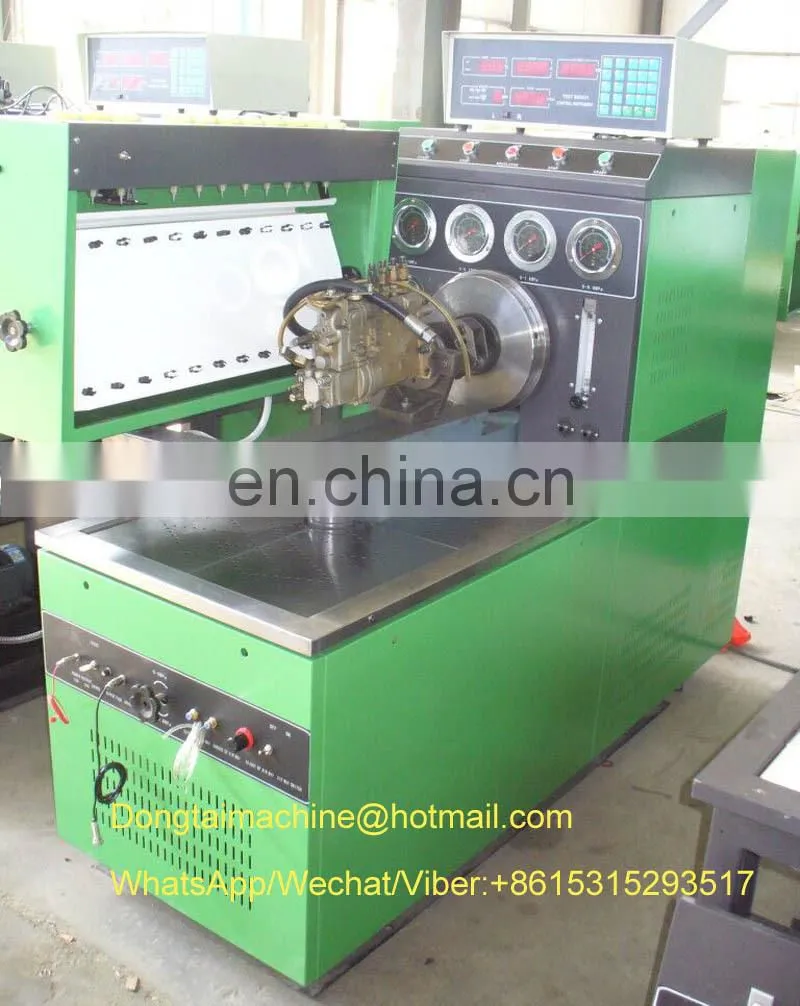

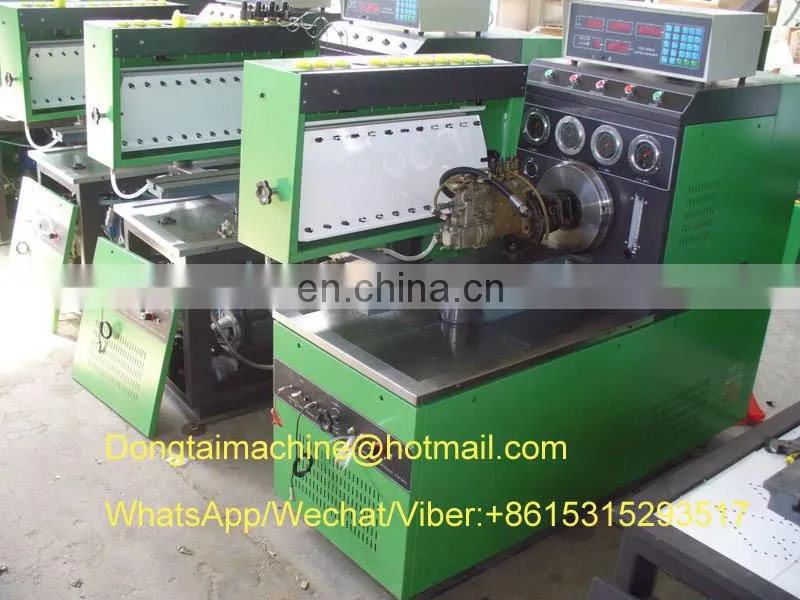

HIgh Quality Bosch 12PSB Diesel Fuel Injection Pump Test Bench/test Machine

HIgh Quality Bosch 12PSB Diesel Fuel Injection Pump Test Bench/test Machine thumbnail-1
HIgh Quality Bosch 12PSB Diesel Fuel Injection Pump Test Bench/test Machine thumbnail-2
HIgh Quality Bosch 12PSB Diesel Fuel Injection Pump Test Bench/test Machine photo-1

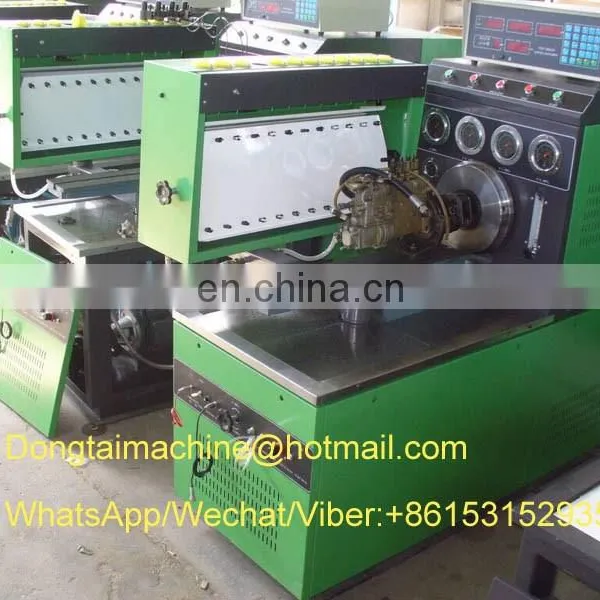

HIgh Quality Bosch 12PSB Diesel Fuel Injection Pump Test Bench/test Machine photo-2
US$ 2,700 - 4,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGTAI
Place of Origin:
Shandong, China
Model Number:
12PSB
Contact Supplier Request Quote Chat Now
Taian Dongtai Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdap
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGTAI
Place of Origin Shandong, China
Model Number 12PSB
Power Electronic
Usage Auto Testing Machine



Product Description

 HIgh quality bosch 12PSB Diesel fuel injection pump test bench/test machineHIgh quality bosch 12PSB Diesel fuel injection pump test bench/test machine



Main function 1. Measurement of each cylinder delivery at any speed 2. Test point and interval angle of oil supply of injection pump. 3. Checking and adjust the mechanical governor. 4. Checking and adjusting the distributor pump. 5. Experiment and adjusting of behavior of supercharging and compensatory     device. 6. Measurement of oil return of distributing pump 7. Testing of the electromagnetic valve of distributor pump.(12V/24V) 8. Measurement of the internal pressure of distributor pump. 9. Checking of the advance angle of advance device. 10. Checking the sealing of injection pump body 11.Install tube of auto-sucking oil supply can check on oil supply    pump(including VE pump.

12. Checking the travel of stroke (on request) USD150.00

13. Advance angle checking.

l Characteristics

   1. Changing frequency changing rotational speed

2. Low fall of rotational speed and high output torque

3. High measurement precision;

4. The functions of over voltage, overload and short circuit protection;

5. Ten classes Rotation speeds presetting;

6. Constant temperature controlled;

7. Ultra low noise;

8. Operating position: arbitrary side of the two work sides of the test stand;

9. Rotation speed, count, temperature, air pressure, advance angle are measured and controlled by computers in real time, digital controller;

11. Automatically generating and displaying speed characteristics curve; ( tooth bar stroke function on request)


Technical Parameters

1Main motor output power(kw)7.5,11,15,18.5
2Frequency ConverterDelta
3Stroke Counting (Rpm)50-9999
4Standard injectorsZS12SJ1
5Power of fuel pump motor (kw)0.75
6Scope of rotate speed (r/m)0~4000
7Number of cylinders12
8Height of principal axis center (mm)125
9Filter oil precision of test bench(μ)4.5~5.5
10Volume of big and small volumetric cylinder(ml)150 45
11Volume of fuel tank(L)40
12DC power supply12/24V
13Low pressure of fuel oil pressure(Mpa)0~0.6
14High pressure of fuel oil pressure(Mpa)0~6
15Pressure Gauge for VE Pump (Mpa)0-1.6
16Pressure Gauge for VE Pump (Mpa)0-0.16
17Control temperature of fuel (°C)40±2
18Flywheel inertia(kg*m)0.8~0.9
19Scope of rack bar stroke(mm)0~25
20Measuring range of flow meter(L/m)10~100
21DC electrical source(V)12 24
22Positive pressure of air supply(Mpa)0~0.3
23Negative pressure of air supply(Mpa)-0.03~0
24Dimensions of Packing ( L*W*H(m ))2.42*1.14*1.73
25Gross weight of Test bench( kg)800-850





Packaging & Shipping

 HIgh quality bosch 12PSB Diesel fuel injection pump test bench/test machine



Company Information



Main products include:
     1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2,  Injection pump test bench 3,auto tools 4  Auto parts 5, special vehicles 6 , Turbocharger.......
     Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .
