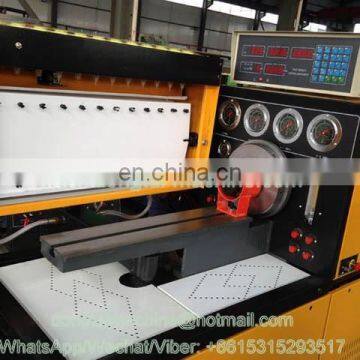

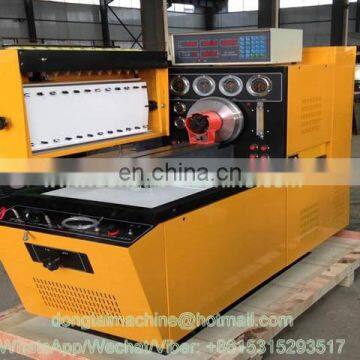

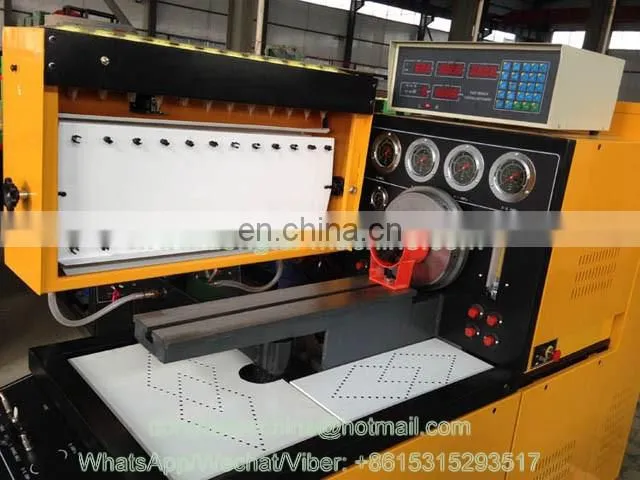

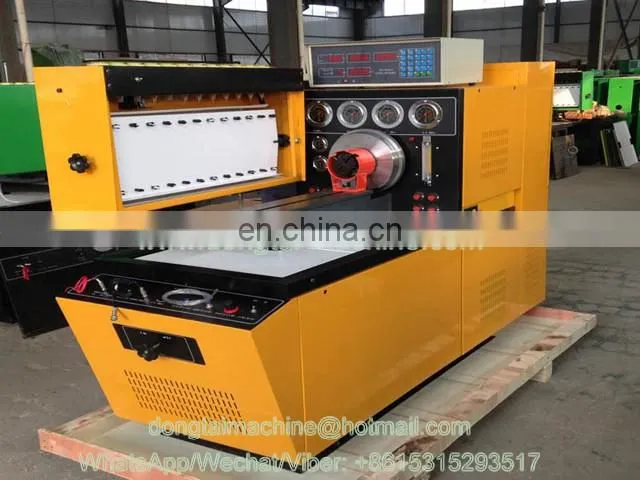

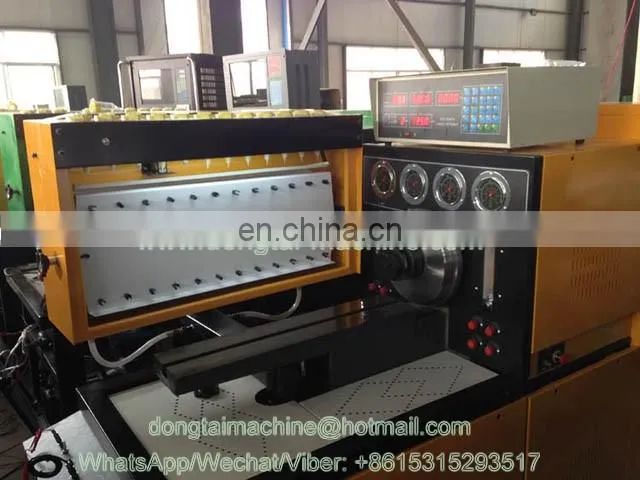

Help Center12PSB Model 3 Diesel Injection Pump Test Bench
Related Products
-
12PSB Series Diesel Injection Pump Test BenchUS$ 2,700 - 4,500MOQ: 1 Piece -
12PSB Series Diesel Injection Pump Test Bench/ EPS619 Test Bench(bank)US$ 2,500 - 4,500MOQ: 1 Piece
-
Injector and Pump Test Bench, 12PSBUS$ 2,500 - 4,500MOQ: 1 Piece
-
NTS815 DIESEL INJECTION PUMP TEST BENCHUS$ 8,000 - 12,000MOQ: 1 Piece
-
DTS815 Diesel Injection Pump Test BenchUS$ 8,000 - 12,000MOQ: 1 Piece
Main function 1. Measurement of each cylinder delivery at any speed 2. Test point and interval angle of oil supply of injection pump. 3. Checking and adjust the mechanical governor. 4. Checking and adjusting the distributor pump. 5. Experiment and adjusting of behavior of supercharging and compensatory device. 6. Measurement of oil return of distributing pump 7. Testing of the electromagnetic valve of distributor pump.(12V/24V) 8. Measurement of the internal pressure of distributor pump. 9. Checking of the advance angle of advance device. 10. Checking the sealing of injection pump body 11.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump. | ||||||
| 1 | Main motor output power(kw) | 7.5,11,15,18.5 |

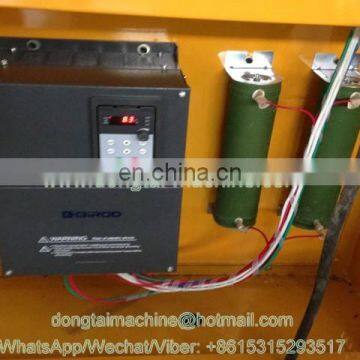

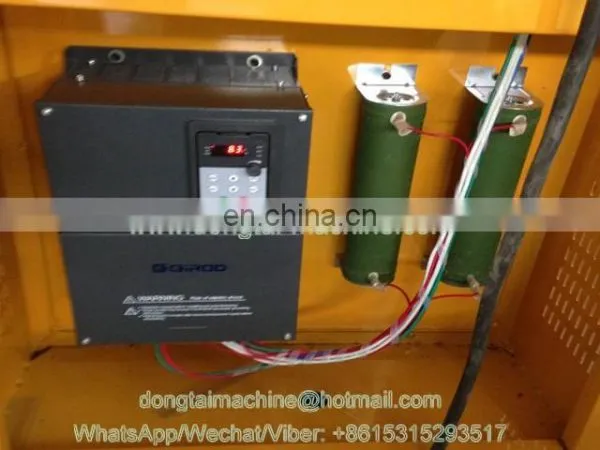

| 2 | Frequency Converter | Delta |
| 3 | Stroke Counting (Rpm) | 50-9999 |
| 4 | Standard injectors | ZS12SJ1 |
| 5 | Power of fuel pump motor (kw) | 0.75 |
| 6 | Scope of rotate speed (r/m) | 0~4000 |
| 7 | Number of cylinders | 12 |
| 8 | Height of principal axis center (mm) | 125 |
| 9 | Filter oil precision of test bench(μ) | 4.5~5.5 |
| 10 | Volume of big and small volumetric cylinder(ml) | 150 45 |
| 11 | Volume of fuel tank(L) | 40 |
| 12 | DC power supply | 12/24V |
| 13 | Low pressure of fuel oil pressure(Mpa) | 0~0.6 |
| 14 | High pressure of fuel oil pressure(Mpa) | 0~6 |
| 15 | Pressure Gauge for VE Pump (Mpa) | 0-1.6 |
| 16 | Pressure Gauge for VE Pump (Mpa) | 0-0.16 |
| 17 | Control temperature of fuel (°C) | 40±2 |
| 18 | Flywheel inertia(kg*m) | 0.8~0.9 |
| 19 | Scope of rack bar stroke(mm) | 0~25 |
| 20 | Measuring range of flow meter(L/m) | 10~100 |
| 21 | DC electrical source(V) | 12 24 |
| 22 | Positive pressure of air supply(Mpa) | 0~0.3 |
| 23 | Negative pressure of air supply(Mpa) | -0.03~0 |
| 24 | Dimensions of Packing ( L*W*H(m )) | 2.42*1.14*1.73 |
| 25 | Gross weight of Test bench( kg) | 800-850 |
Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
