Home > Instruments & Meters > Test Instrument > Test Machine > Soil Penetrometer Portable Direct Shear Testing Apparatus Shearing Machine for Soil Strength Test

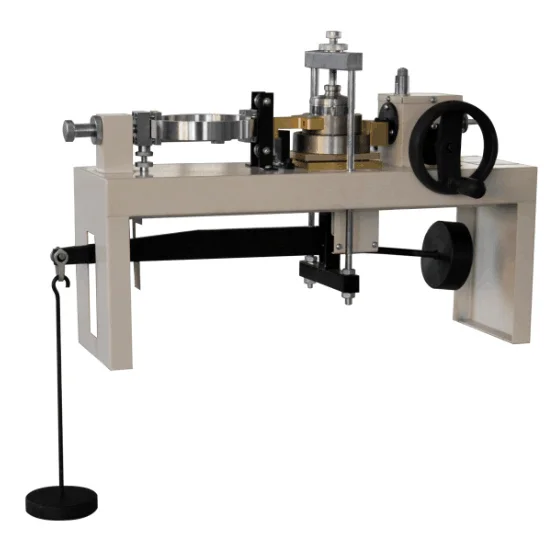

Soil Penetrometer Portable Direct Shear Testing Apparatus Shearing Machine for Soil Strength Test
US$ 580 - 1,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Sansing
Place of Origin:
Zhejiang, China
Model Number:
ZJQB-4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Direct Shear Test Apparatus for Soil Pressure 400kPaUS$ 1,500 - 1,900MOQ: 1 Unit -
New Design Electronic LCD Digital Display Soil Test Apparatus for Soil Strength Direct Shear Test MachineUS$ 650 - 700MOQ: 1 Unit
-
Electronic Direct Shear Shearing Testing Apparatus Soil Strength Tester Speed Regulation InstrumentUS$ 750 - 800MOQ: 1 Unit
-
Portable Manual Direct Shear Testing Apparatus Soil Strength Test Machine Coulombs LawUS$ 580 - 1,000MOQ: 1 Unit
-
5.5P 9P 13P Famous Brand Petrol Motor Concrete Core Drill Machine Also for Asphalt RoadUS$ 440 - 1,000MOQ: 1 Unit
Brand Name
Sansing
Place of Origin
Zhejiang, China
Model Number
ZJQB-4
Product Description
Application:
Direct shear apparatus used to measure the shear strength of soil, usually takes four sample, respectively under different vertical pressure, the applied stress to shear, the destruction of shearing stress is obtained, then according to the coulombs law of strength parameters, Angle of internal friction and cohesion.
Technical Parameters
Maximum vertical load (KPa) | 400 |
Pressure level (KPa) | 50,100,200,300,400 |
Corresponding weight weight (KPa) | 1.275,2.55,5.1,7.65,10.2 |
Lever radio | 1:12 |
Soil sample | 30cm2 x 2cm(H) |
Maximum horizontal shear force (KN) | 1.2 |
Power type | manual |
The displacement of the handwheel | 0.2mm |
Dimension | 850 x 550 x 1100mm |
Weight | 40kg |
Product Show
Packing & Delivery
Our Company
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
