Meets Standard(s):.
* ASTM C535
* ASTM C131/131M
Application:
Los Angeles abrasion test on aggregates is the measure of aggregate toughness and abrasion resistance such as crushing,degradation and disintegration. This test is carried out by AASHTO T 96 or ASTM C 131: Resistance to Degradation of Small-Size Coarse Aggregate by Abrasion and Impact in the Los Angeles Machine.
The aggregate used in surface course of the highway pavements are subjected to wearing due to movement of traffic.
When vehicles move on the road, the soil particles present between the pneumatic tyres and road surface cause abrasion of road aggregates. The steel rimmed wheels of animal driven vehicles also cause considerable abrasion of the road surface. Therefore, the road aggregates should be hard enough to resist abrasion. Resistance to abrasion of aggregate is determined in laboratory by Los Angeles test machine.
The principle of Los Angeles abrasion test is to produce abrasive action by use of standard steel balls which when mixed with aggregates and rotated in a drum for specific number of revolutions also causes impact on aggregates.
The aggregate used in surface course of the highway pavements are subjected to wearing due to movement of traffic.
When vehicles move on the road, the soil particles present between the pneumatic tyres and road surface cause abrasion of road aggregates. The steel rimmed wheels of animal driven vehicles also cause considerable abrasion of the road surface. Therefore, the road aggregates should be hard enough to resist abrasion. Resistance to abrasion of aggregate is determined in laboratory by Los Angeles test machine.
The principle of Los Angeles abrasion test is to produce abrasive action by use of standard steel balls which when mixed with aggregates and rotated in a drum for specific number of revolutions also causes impact on aggregates.
Features:
* Electronic safety interlocks allow operation only with doors secured
* Powerful 1hp motor rotates drum through slip-clutch protected chain drive
* Enclosure lined with sound attenuating foam
Included Items:

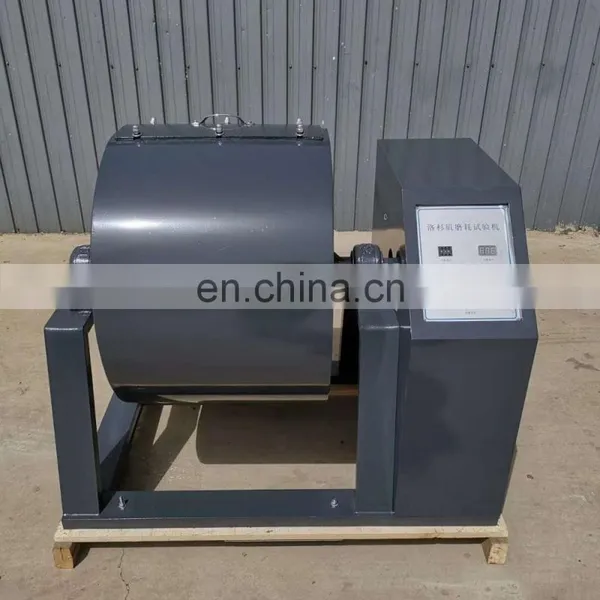

* Los Angeles (LA) Abrasion Machine
* Catch Pan
* Abrasive charge of twelve hardened steel balls
Accessories:
* Extra Catch-Pan for LA Abrasion additional catch-pan improves sample handling efficiency
* Steel Shelf for LA Abrasion Machine replacement for standard steel shelf in machine
* Wear-Resistant Steel Shelf for LA Abrasion Machine optional wear-resistant shelf is an upgrade and offers maximum
service life
* Replacement LA Abrasion Charge (12 balls) additional sets recommended for increased sample preparation efficiency
Technical reference：
Inner diameter of cylinder |
710 X 510 mm (+ /- 5MM) |
Load speed |
32 rpm(+/- 3) |
Counter: |
3 digits, automatic display can be preset as required |
Machine size |
1420x800x1050mm |
Ball size |
DIA=48MM |
Volt |
380V/20A |
Power |
6KW |
weight |
220kg |
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
