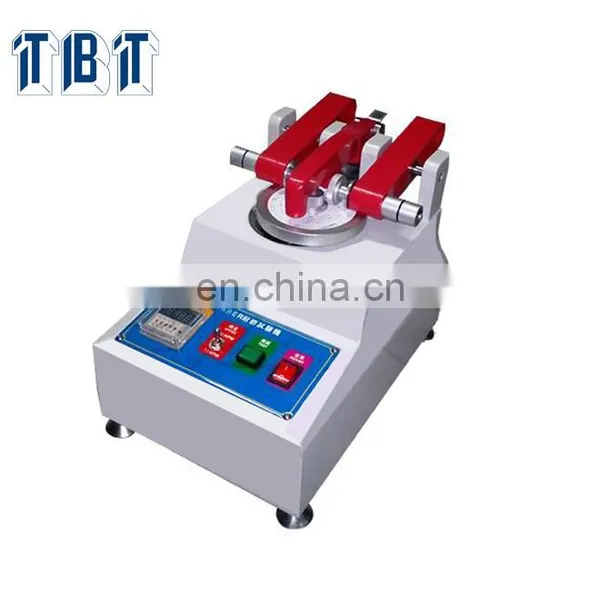

Rotation Taber Wear and Abrasion Tester
This machine is suitable for cloth, paper, paint, plywood, leather, floor tiles, glass, natural plastics, etc. The test method is to put a pair of grinding wheels against the rotating sample and apply the specified load. When the sample rotates, the grinding wheel is driven to wear out the sample. Abrasion loss weight is the weight difference of the sample before and after the test.
According to the standards: DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470
1. Test piece: outside diameter 108mm; inside diameter 8mm, (D) 3mm
2. Wheel center spacing: 63.5mm
3. Center distance between grinding wheel and test plate: 37~38mm
4. Grinding wheel: ψ2’’ (max:45mm). 1/2’’(W)
5. Slewing speed: 60/72 rpm
6. Load: 250, 500, 750g
7. Counter: LCD, 0~999,900
8. Distance between test piece and suction port: 3mm
9. Volume (W*D*H): 53×32×31cm+vacuum cleaner
10. Weight: 28 kg
11. Power Supply: 1phase, AC220V, 10A
Accessories:
1 wheel, 50 stickers, 10 sandpaper
