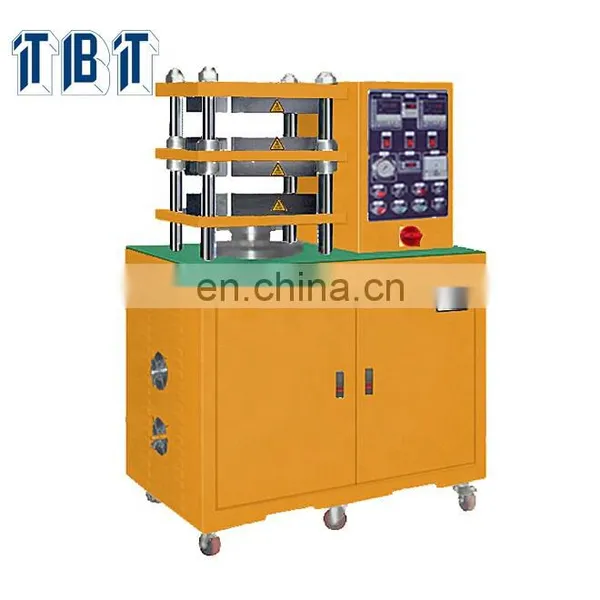

TBTTM-8170A LAB TABLET MACHINE (EQUIPMENT CONTROL TYPE)
1. DESCRIPTION:
The material is placed in the casting mould and clamped between the electric-heating flat plates to apply pressure and temperature, make the material shaping, testing and serving as the basis for the ingredient of mass production.
1. MAIN SPECIFICATION:
|
Capacity |
10-50T |
|
Temperature |
Room temperature to 300℃ |
|
Temperature controller |
LED Indicator |
|
Heating method |
Electrical Heating Module |
|
Hot Pressure Plate |
300*300mm |
|
Cold Pressure Plate |
300*300mm |
|
Distance of Pressure Plate |
70mm |
|
Pressure Material |
SKD chromium-molybdenum alloy |
|
Pressure Surface |
Mirror chrome plate |
|
Cooling Temperature Scope |
Room Tem-+5℃ |
|
Cooling type |
Tap water cooling or compressor cooling water |
|
Oil cylinder stroke |
Max 200mm |
|
Oil cylinder speed |
11mm/s |
|
Pressure gauge |
0-350KG/Ssq.cm |
|
Power |
10.6HP |
|
Volume W×D×H |
Around 1000 × 500 × 1500mm |
|
Power supply |
AC380V,3phase |
|
Weight |
About658kg |
