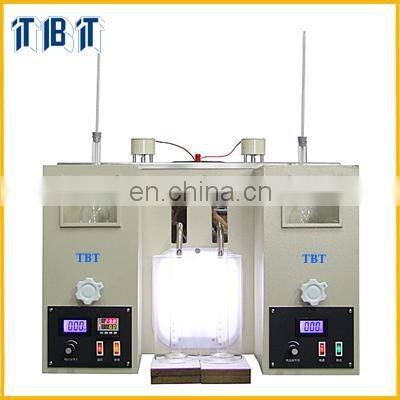

TBT-6536B Distillation Apparatus (double unit, low temperature)
This instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.
This instrument is a kind of double-units instrument which the minimum temperature of the condenser pipe can reach 0℃.It is an ideal distillation tester for petroleum products under low temperature condition.
I. Main technical features
1.The instrument adopts low temperature and double units working mode. The minimum temperature can set to 0℃.It can do test for one sample or two samples at same time.It highly improves the work efficiency.
2.It adopts digital temperature controller, stainless-steel heater, new type refrigeration compressor and electric stirrer to constitute constant temperature bath. The temperature in the bath is uniform,can fully meet the requirements of test.
3.It adopts special designed structure, cooling speed is fast.The bath temperature can cool down from room temperature to 0℃ within 50 minutes.
4.It adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test.
II. Main technical specifications
Power supply |
AC(220±10%)V, 50Hz |
Heating power: |
1000W×2. |
Receiving cylinder |
100ml, division value is 1ml. |
Distillation flask |
125ml,meet the requirements of GB/T 6536 and ASTM D86 |
.Thermometer |
(-2~300)℃ and (-2~400)℃. Division value 1℃. |
Flask support board: |
SiC, bore diameter is: φ32mm, φ38mm, φ50mm. |
Temperature controller |
1) Range: 0℃~60℃ 2) Accuracy: ±0.5℃ 3) Display: LED Note: The temperature control is to control the temperature of condensate in the condenser pipe. |
Ambient temperature: |
≤30℃ |
Relative humidity |
≤85% |
Cooling system |
New type refrigeration compressor |
Maximum power consumption |
4000W |
Dimension |
730mm×530mm×580mm |
Package
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
Delivery time
---within 2weeks after payment, we will act fast and before shipment, we will provide product photo, packing photo to customer’s checking
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, etc
---Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quantity order
---Normally, it will take around 3--5days from China to destination country via air.
Payment
---T/T, Western Union, Paypal, or negotiable, ect.
How to order products?
---Send inquiry to us or contact with us via skype or trademanager
---Confirming the model, specification, price, qty, delivery time and payment method
---Sending invoice to customer
---Customer makes payment and send us receipt
---Arranging production
---Sending products picture to customer after the production is ready
---Shipping products to customer
Warranty
---1 year quality assurance
