Digital Display Oxygen Bomb Calorimeter
USD $1,000 - $1,999
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- China any port
- T/T Credit Card
You May Like
-
ASTM D92 Petroleum Manual Cleveland Open Cup Flash Point Tester
-
Pensky Martens Closed Cup Flash Point Tester
-
Asphalt Needle Penetration Test Apparatus/Automatic Grease Cone Penetrometer/Petroleum Wax penetrometer
-
ASTM Asphalt Needle Penetration Test Apparatus
-
Needle Penetrometer (For paraffin wax) for Wax
-
ASTM D3427 Lubricating Oil Air Release Value Laboratory Apparatus
Product Details
| Brand Name | TBT | Place of Origin | China | |
| Model Number | XRY-1A | Power | Electronic | |
Product Description

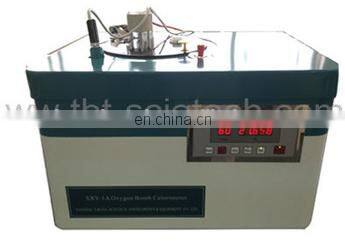

Digital Display Oxygen Bomb Calorimeter
Model:XRY-1A
Product Description
1. The instrument uses a self sealed oxygen bomb, all the structure of the use of stainless steel, the strength is sufficient to withstand the maximum pressure generated by solid combustion (70 ~ 60 ATM), and can withstand the pressure of liquid fuel generated by the greater pressure.
2. The inner tube of the instrument is made by stainless steel sheet, section of pears, put the barrel of water was 3000 grams, water cylinder with electric blender, to ensure that the inner tube water bath temperature uniformity.
3. The instrument of the external water jacket is a double container and experiment when filled with water, through the water jacket mixer to cylinder in uniform temperature, formed to meet the test requirements of the constant temperature environment.
Main specifications
| Heat capacity | (14000 ~ 15000)J/K |
| Temperature resolution | 0.001 K |
| Thermal error | ≤60J/g |
| Temperature measurement range | 10 ℃~35 ℃ |
| Repeatability error | ≤0.2% (Grade C) |
| Pressure endured by Oxygen bomb | 20 MPa |
| Ambient temperature | 15 ℃~28 ℃ (room temperature), The temperature fluctuation during each test should be not more than 1 ℃ |
| Storage Temperature data | 31 |
| Ambient humidity | less than 85% |
| Power supply | AC(220±5%)V,50Hz |
| Total power consumption | less than 150W |
| Dimensions | 600 mm × 460 mm × 430 mm (length × width × height, PC is not included) |
Note: If the test sample is pulverized coal samples, in order to obtain better test results, we recommend separately of the company's private press cake machine.
Packaging & Shipping
Package
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
Delivery time
within 2weeks after payment, we will act fast and before shipment, we will provide product photo, packing photo to customer’s checking
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, etc
-Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quantity order
---Normally, it will take around 3--5days from China to destination country via air.
Payment
---T/T, Western Union, Paypal, or negotiable, ect.
