Asphalt Kinematic Viscosity Tester / Asphalt Kinematic Viscometer / Dynamic Viscometer Tester / Capillary Viscometer
Model: TBT-265I /TBT-265II
Description: Asphalt Kinematic Viscometer / Dynamic Viscometer Tester / Capillary Viscometer
Capillary Viscometer / Asphalt kinematic viscosity tester / Bitumen Kinematic viscometer / Kinematic viscosity testing machine / Kinematic viscosity testing apparatus / viscosity test device / Asphalt Tester / Bitumen Instrument / Asphalt Test Apparatus
I. Introduction
1.High precision digital temperature controller. Electric stirring motor.
2.High temperature resistant glass bath. Double layer structure.
3.Desktop structure. All-in-one design.
4.The maximum heating temperature is 135℃ / 180℃
II. Technical specifications
1. Power supply: AC 220 V±10%, 50 Hz
2. Heating power: 1700 W
3. Temperature range: Ambient to 135.0℃
4. Temperature control accuracy: ±0.1℃
5. Mercury-in-glass thermometer: Scale division 0.1℃.
Range 100℃~150℃(for maximum 135.0℃)
6. Bath capacity: about 23 L
7. Sample quantity:
You can make determination using 3 capillary viscometers at a time.
8. Stirring motor
(1) Power: 6W
(2) Speed: 1200 RPM
9. Ambient temperature: -10℃~+35℃
10. Relative humidity: <85%
11. Temperature sensor: RTD, Pt100
III. Packing detail
No. |
Name |
Unit |
Quantity |
Remark |
1 |
Main unit (containing double layers bath, stirring device and rubber ring) |
Set |
1 |
|
2 |
Reverse flow type capillary viscometers (1 group) |
Piece |
7 |
|
3 |
Mercury thermometer (100~150℃, scale division is 0.1℃) |
Piece |
1 |
|
(150 ~200℃, scale division is 0.1℃) |
Piece |
1 |
Optional |
|
4 |
Weight ball |
Piece |
1 |
|
5 |
Temperature sensor |
Piece |
1 |
|
6 |
Sensor sheath |
Piece |
1 |
|
7 |
Power supply wire (250 V/10 A) |
Piece |
1 |
|
8 |
Bakelite cover |
Piece |
4 |
|
9 |
Stopping ring for thermometer (1#) |
Piece |
2 |
|
10 |
Capillary viscometer clamps |
Piece |
4 |
|
11 |
Silica gel stopper (3#) |
Piece |
2 |
|
12 |
Fuse 6A (6×30) |
Piece |
4 |
|
13 |
Fuse 10A (5×20) |
Piece |
2 |
|
14 |
Round glass |
Block |
1 |
|

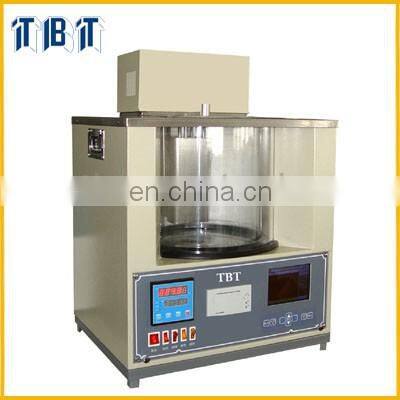

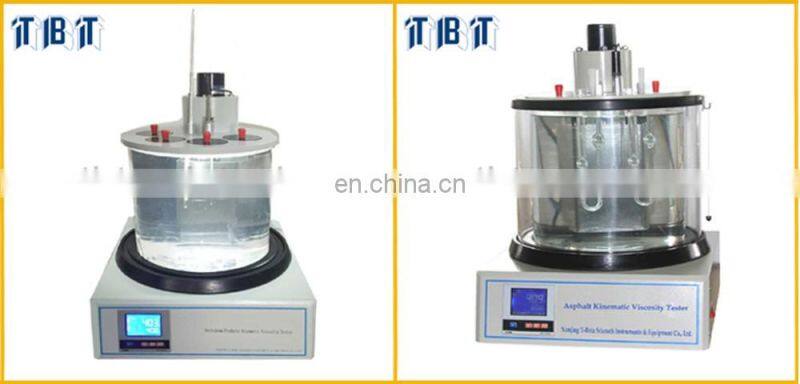

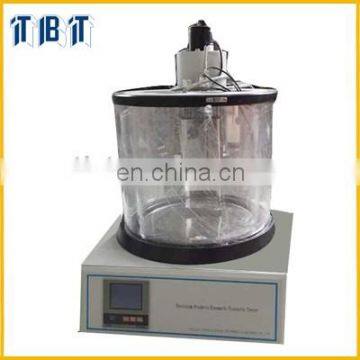

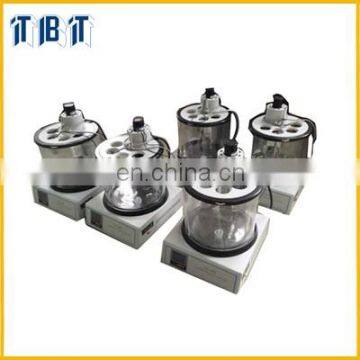

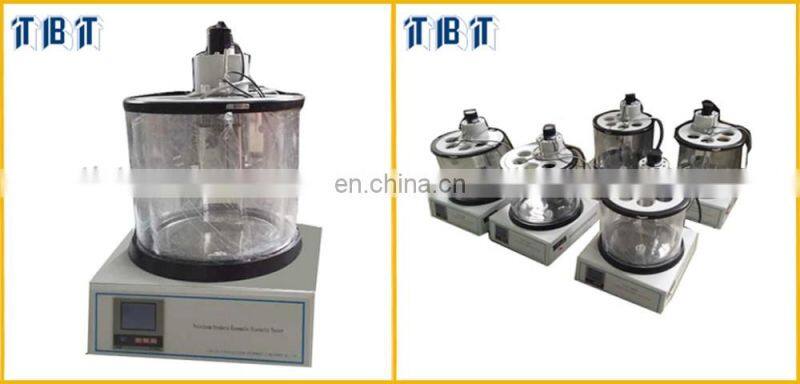

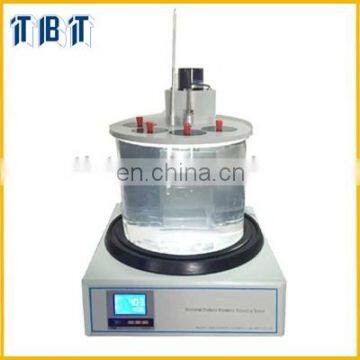

Product photo

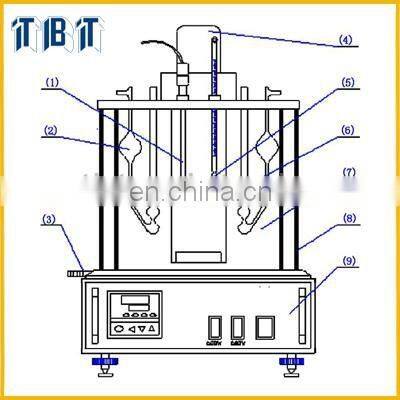

Construction
(1) Temperature sensor (2) Asphalt viscometer (3) Air inlet
(4) Stirring motor (5) Mercury thermometer (6) Heating protection shield
(7) Inner bath (8) Outer bath (9) Controlling case
For other petroluem kinematic viscometer, detail information as following:
TBT-265H Petroleum Products Kinematic Viscosity Tester
Packaging & Shipping
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
