Concrete Reinforcement Detector R630A
- 1000 Piece / Pieces per Month
- China any port
- T/T Credit Card
You May Like
-
rebar location/position detector
-
TBT-UT650C Digital ultrasonic phased array flaw detector
-
Mohs Portable with carrying case Pencil hardness Tester
-
TBT M-1 LAB Portable Magnetic Particle Detector
-
Digital Display LCD TBT-HT180 Portable Hardness Tester
-
TBT-1C Digital Portable Magnetic Particle Flaw Detector
Product Details
| Brand Name | TBT | Place of Origin | Jiangsu, China | |
| Model Number | ZBL-R630A |
Product Description

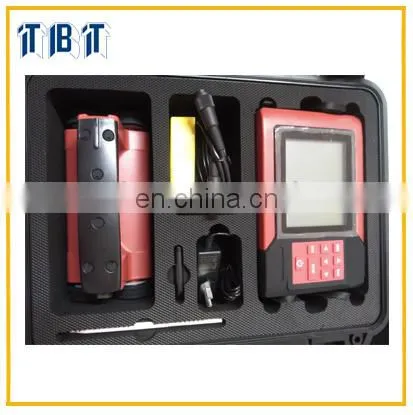

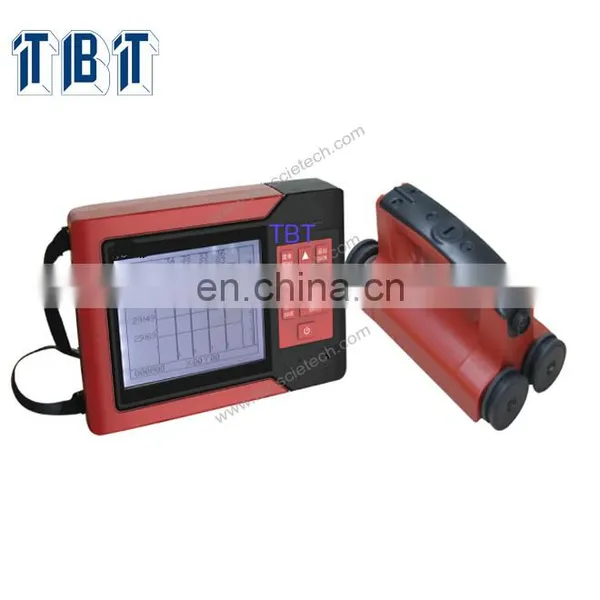

Concrete Reinforcement Detector R630A
Model:ZBL-R630A
It is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation, and distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magnetic and conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium.
Features:
1. Unique all-wheel, dustproof and waterproof multi-parameter rebar probe ensures accuracy and reliability of data taking.
2. Rebar detection is automatically alerted by the probe via flashing red light.
3. The world’s first wireless onsite data transfer function, remote management also available.
4. Data can be stored on USB-thumb drive, great for field work.;
5. The device can generate rebar distribution maps and rebar corrosion potential contour graphs.;
6. Powerful professional analysis-process software allows for the automatic generation of test reports.
Applicable range | 6mm~50mm | Maximum allowed error | ±1rebar standard | ||
Protective layer thickness range (mm) | First range | Second range | Data transmission | GPRS wireless transmission,thumb drive storage available | |
| 3~98 | 3~196 | Power | Built-in chargeable lithium battery | |
Maximum allowed error for protective layer thickness | ±1 mm | 6~59 | 10~79 | Battery Time | >40 hrs for one full charge |
| ±2 mm | 60~69 | 80~119 | Size | 212mm´134mm´50mm |
| ±4 mm | 70~90 | 120~200 | Weight | 0.9kg |
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
