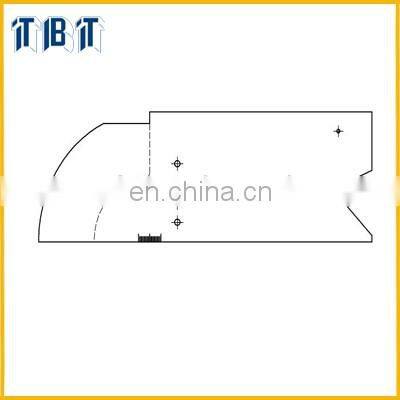

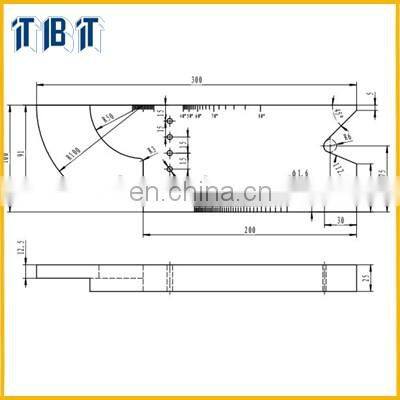

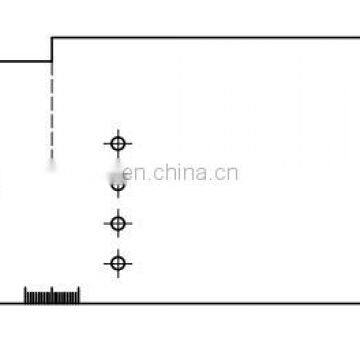

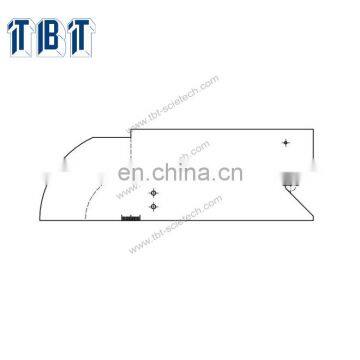

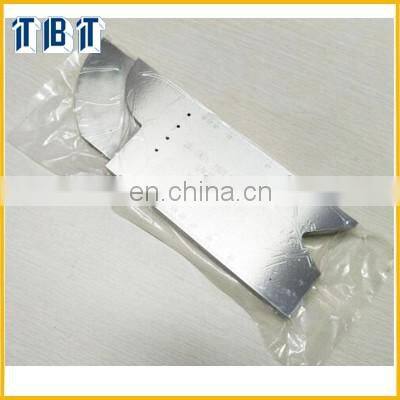

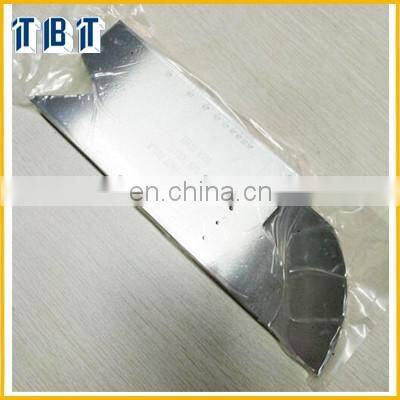

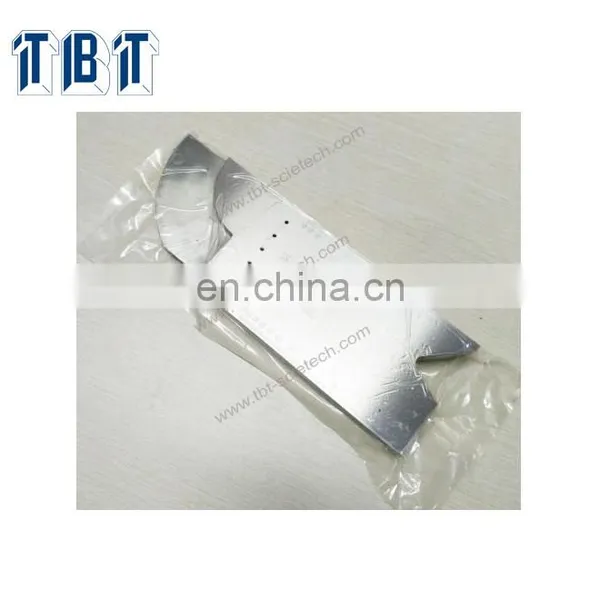

T-BOTA PAUT TESTING BLOCK, Block for Phased Array Ultrasonic Testing

Block for Phased Array Ultrasonic Testing

PAUT TESTING BLOCK

calibration block

Ultrasonic flaw detector calibration block

Calibration testing block Used For NDT Filed

Multiple Optional Calibration Block Used For NDT Filed

The Specification and Material Can be Customized According to Customers Requirement.

Technical data:

design a practical and affordable phased array calibration block that can handle the basic calibration functions required by existing standards, which is widely applicable to many industries and countries. The basic PAUT calibrations are: material velocity calibration, wedge delay and angle corrected gain calibration.

How does it work:It is used with flaw detector to detect the defects of the workpeice, perform a simple test to verify the compliance with the standard requirements.

Material: 20# steel

Field of use : used for conventional ultrasonic calibrations.material velocity calibration, wedge delay and angle corrected gain calibration.
