Undrained shear strength Digital display Portable Vane Shear Apparatus
Digital display portable cross-plate shear apparatus is used to directly test the undrained shear strength of clay and remolded soil at the engineering site.
It is a geophysical in-situ instrument.

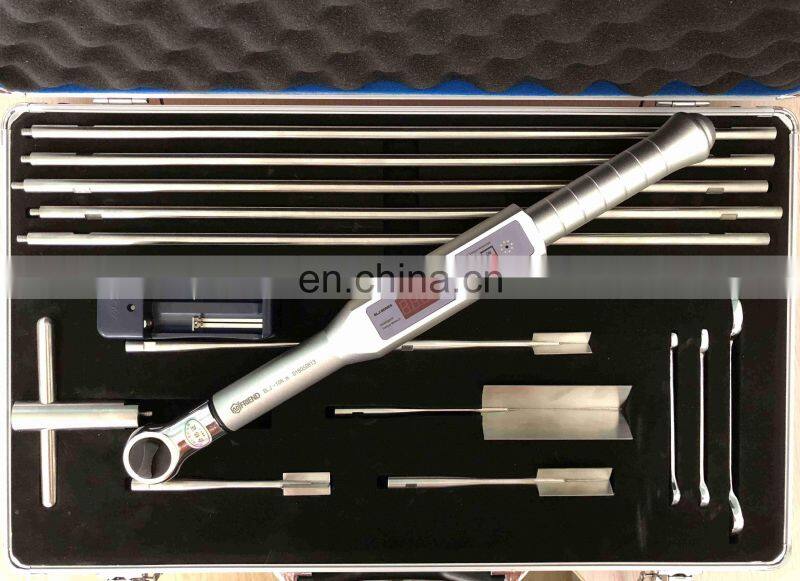

The complete instrument consists of a spring torsion gauge, 6 extension rods, 4 crossheads of different sizes, 1 wrench and 3 wrenches. The maximum test depth is 3m, the maximum test range is 0~260kPa, and the test accuracy is better than 10%.
Features
Portable instrument
Different cross head models for different ranges and test accuracy
Tests can be carried out in different depths by connecting extension rods
Precision welded cross head (patented technology), plate thickness 1mm, minimum area ratio 5%
Stainless steel construction for durability
Item | size(mm) | Range(kPa) | coefficient |
A | 20x40 | 0~130 | 10 |
B | 16x32 | 0~260 | 20 |
C | 25.4x50.8 | 0~65 | 5 |
D | 50.8x101.6 | 0~8.125 | 0.625 |
Warranty: 1 year
Perfect After Sales Service
Effective and strong support all the customers;
Before shipment, we will do final inspection, ensure everything going smoothly;
