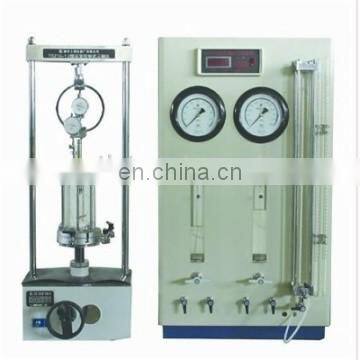

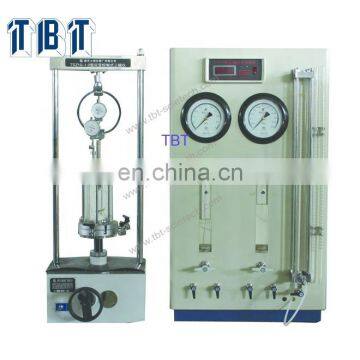

TSZ10 -1.0 Bench Light-duty Triaxial Test Apparatus
Application:
TSZ10-1.0 Bench Light-duty Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test. It is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1MPa and sample diameter of Ø39.1 x 80mm. It can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.
II.Specification:
Product Model |
TSZ10–1.0 |
Specimen |
Ø39.1 x 80mm |
Capacity |
10kN maximum |
Strain rate |
0.016 – 1.6mm/min. mechanical speed with 6 gears |
Platen travel |
50mm maximum |
Confining pressure |
0 – 1MPa |
Back pressure |
0 – 0.6MPa |
Pore pressure |
0 – 1MPa |
Volume deformation |
0 – 25cm, minimum division : 0.1cm |
Axial displacement |
0 – 30mm (micrometer) |
Power supply |
Main unit : 350 x 300 x 1100mm (L x W x H) |
Weight |
170kg |
Package
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
Delivery time
---within 2weeks after payment, we will act fast and before shipment, we will provide product photo, packing photo to customer’s checking
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, etc
---Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quantity order
---Normally, it will take around 3--5days from China to destination country via air.
Payment
---T/T, Western Union, Paypal, or negotiable, ect.
How to order products?
---Send inquiry to us or contact with us via skype or trademanager
---Confirming the model, specification, price, qty, delivery time and payment method
---Sending invoice to customer
---Customer makes payment and send us receipt
---Arranging production
---Sending products picture to customer after the production is ready
---Shipping products to customer
