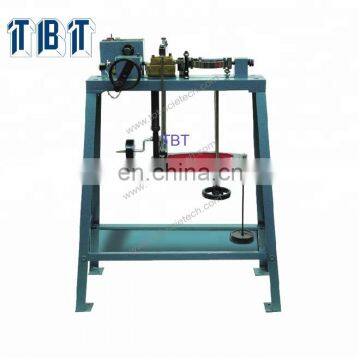

ZJ Quadruplex Strain controlled Direct Shear Apparatus
I. Application
ZJ Quadruplex Strain Controlled Direct Shear Apparatus is a kind of strain controlled direct shear apparatus used to test resisting shear strength of soil specimen, it usually adopts four specimens under the different vertical pressure and to exert horizontal force to the specimens so as to obtain shearing stress while the specimen is destroyed. According to Coulomb's law to confirm the resisting shear strength coefficient, angle of internal friction and coagulable force of the soil.
II. Product Specifications
Vertical load | Max. 400kPa |
Pressure grade | 100, 200, 300, 400kPa |
Lever ratio | 1:12 |
Shear cell | 4 |
Horizontal shear force | Max.1.2kN |
Specimen area | 30cm2 x 2cm(H) |
Speed | 2.4, 0.8, 0.1, 0.02mm/min |
Power | ‹100W |
Power supply | 220V±10% 50Hz |
Dimension | 680 x 740 x 1050mm (L x W x H) |
Weight | 200kg |
We can make and manufacture products according to customer specific needs.
provide best and professional service for you, pls contact with us freely;
Usage field: soil testing machine and accessories
Product name: ZJ Quadruplex Strain controlled Direct Shear Apparatus
We sincerely hope to establish long-term cooperation with clients by providing the best products, excellent service and the most reasonable prices.
For more information, please do not hesitate to contact us with your questions or inquiries.
Nanjing T-bota Scietech Instruments & Equipment Co., Ltd
Packaging & Shipping
Package
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
Delivery time
---within 2weeks after payment, we will act fast and before shipment, we will provide product photo, packing photo to customer’s checking
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, etc
---Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quantity order
---Normally, it will take around 3--5days from China to destination country via air.
