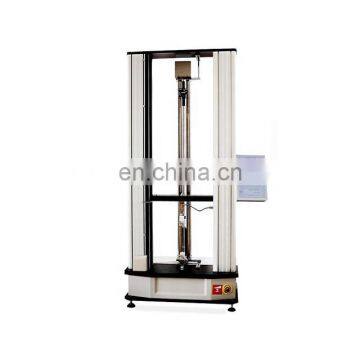

TBTWDW Micro-Computer Control Electro-Hydraulic Servo Tensile Universal Tester

Model

TBTWDW-10H

TBTWDW-10HE

TBTWDW-20H

TBTWDW-20HE

Max. Load(kN)

10

10

20

20

Structure

Four-column floor or desk model,

(upper is compression and lower is tensile)

Cover

All aluminum alloy

Control method

Computer control

Load accuracy

Class 1

Class 0.5

Class 1

Class 0.5

Load range

2%~100%F·S

0.2%~100%F·S

2%~100%F·S

0.2%~100%F·S

Load resolution

1/300000

Rang of deformation

4%-100%FS

Resolution of deformation

0.04um

Accuracy of displacement

Within±0.5%of indicating load

Resolution of displacement

0.01mm

Test speed(mm/min)

0.05-1000 stepless arbitrary setting

Tensile space(mm)

800(can be customized)

Compression space(mm)

800(can be customized)

Test width(mm)

400(can be customized)

Workbench thickness(mm)

30

Base height(mm)

210

Working environment

Room temperature 10℃~30℃,relative humidity≤80%

Power supply

AC220V±10%,50Hz/60Hz(can be customized)

Grips

Wedge type, plate type and other grips as consumer’s demand

Dimension(mm)

740*420*1720
