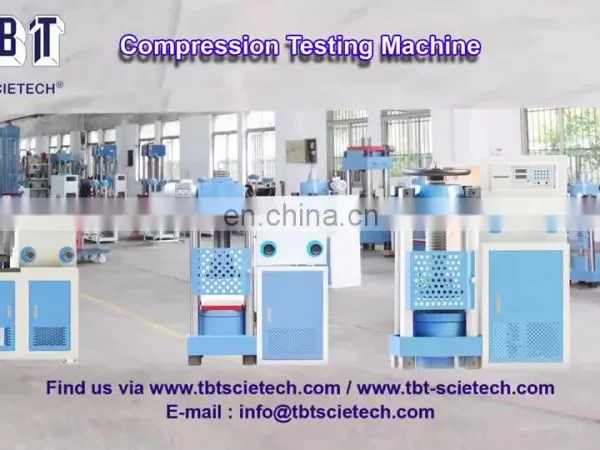

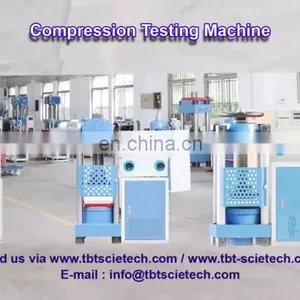

Compression Testing Machine With PC Control and constant load
Model: TBTCTM-300A
The tester is hydraulically loaded and uses a computer to control the compressive tests of cement, concrete and other materials under the rated test force.
The load rate can be set according to the corresponding standards and meet the standard load rate control indicators. , Time and test curve dynamic display and timely control function and maximum test force maintain function.
The testing machine is designed for testing the compressive strength and flexure strength of cement mortar. It is one of the necessary equipment in cement works, building material unit, quality inspection station and universities.
It is electro-hydraulically powered, electronic measuring, configured a dedicated hydraulic valve to achieve constant loading speed. The test is controlled with the computer functioned with the test process and date process automatically, color screen display, English menu, force values and loading curve tracing display, standard keyboard input, test data storage, test report print and overload protection
Technical specification
|
Maximum Capacity: |
300 kN |
|
Relative Error |
±1% |
|
Loading rate for compression test: |
0-10 kN/s |
|
Max vertical of clearance |
230-250mm |
|
Power supply |
220v 60hz, one phase |
