T-BOTA Brick Automatic Compression Testing Machine With PC Contro and Auto Loading
- Shanghai
- T/T Credit Card
You May Like
-
T- Bota 100 KN/ 300 kN Cement Compressive Strength and Flexural Strength Testing Machine With Digital Display
-
Compression Machine CTM 2000kN Electro Hydraulic Digital Display Building Materials Concrete Compression Testing Machine
-
T-BOTA TBTCTM-LCD2000S 2000kn Digital Automatic Compression Testers Machine for Cubes and Cylinders
-
T-BOTA TBTCTM-2000(S) 1000KN/2000kN/3000kN Concrete Cube Compression Testing Machine Electric Control Compression Tester
-
TBTCTM-2000N 220v 50 Hz Concrete Compression Strength Test Machine
-
TBTCTM-300B Automatic Compression and Flextural Testing Machine With PC Control
Product Details
| Brand Name | TBT | Place of Origin | China | |
| Model Number | TBTCTM-2000AG | Power | Hydraulic | |
Product Description

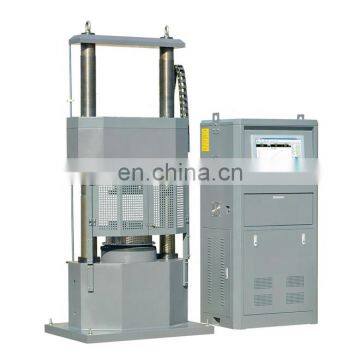

Compression testing machine w/PC & Servo Control
Model: TBTCTM-2000AG
1. Description
|
2000KN |
Size (mm) |
Q’ty |
|
Upper platen |
d250x33 |
1 |
|
Lower platen |
d250x40 |
1 |
|
Pad 1 |
d200x50 |
3 |
|
Pad 2 |
d200x77 |
1 |
It can adding trays for crushing bricks.
The testing machine is designed for testing the compression strength of brick, cement mortar and concrete specimen Also, it can used for testing the compression strength of some other building material if the proper compression jig is equipped.
It is elector-hydraulically powered and the pressure applied on the specimen can be displayed directly on the rated pace; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed.
II. Technical specification:
|
Model |
TBTCTM-2000AG |
|
Capacity |
2000KN max. |
|
Measuring range |
0~2000 |
|
Relative error |
±1% |
|
Pressure plate size |
D295*T32mm (round) upper plate D295*T45mm (round) lower plate |
|
Bearing plate size |
D200*T50mm *3pcs D200*T75mm *1pc |
|
Maximum distance between upper and lower plate |
3310mm |
|
Piston stroke |
100mm |
|
Loading speed |
Around 0.2~10KN/s |
|
Power supply |
220VAC 750W |
|
Dimensions |
Around 900×400×1000 (L*W*H) |
|
Net weight |
Around 780kg |
