Product Details
| Brand Name | TBT | Place of Origin | Jiangsu, China | |
| Model Number | TBTFWD | Power | Electronic | |
Product Description

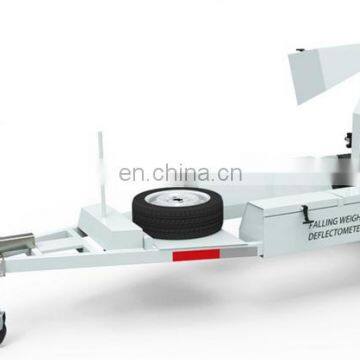

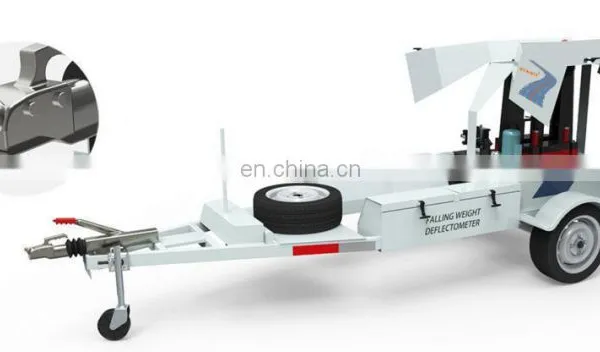

Automatic Falling Weight Deflectometer (FWD)
Trailer type & Single point / multi point
Feature
1. Easy to operate
2.“One-Key Operation” The whole testing task can be completed
by one single person with pressing just one key on laptop.
3.Full Automatic
4. Multi-functional and Professional
5. Strong and durable trailer base plate.
6. Equipped with laptop for wireless data transmission
7. GPS location and temperature measurement
8. Auto capture of deflection value and load value.
9. Continuous outdoor working.
10. Storage Battery Charging: charging by electric generator on the tractor
11. Double Locking System: Hydraulic/ Mechanical
12.Emergency System: Lift the load plate when system
breaks down.
13. Operation Options: Manual/ Automatic
14.Working status of load plate can be monitored on the
screen.
15. Inertia Braking
16.Synchronized turn/break/back light and head warning light with
the tractor
Main specifications
|
Hammer weight |
450Kg |
|
Moving speed |
0~120km/hour |
|
Testing speed per point |
25~30s |
|
Deflection type |
magnetoelectic speed sensor |
|
Deflection sensor q’ty |
1~7pcs selectable (standard packing list is 7pcs) |
|
Deflection range |
±2500um |
|
Deflection accuracy |
2% |
|
Deflection repeatability |
1% |
|
Loading force |
12~150KN (can extend to 250KN) |
|
Loading pulse shape |
essentially half-sine |
|
Loading repeatability |
2% |
|
Loading resolution |
0.1KN , 1Kpa |
|
Temp. Measuring range |
-50℃ ~ 100℃ |
|
Temp. Resolution |
0.1℃ |
|
Temp. Accuracy |
0.5% |
|
DMI sensor type |
pulse coder |
|
DMI sensor q’ty |
1pc |
|
GPS locating |
horizontal within ±2meter |
