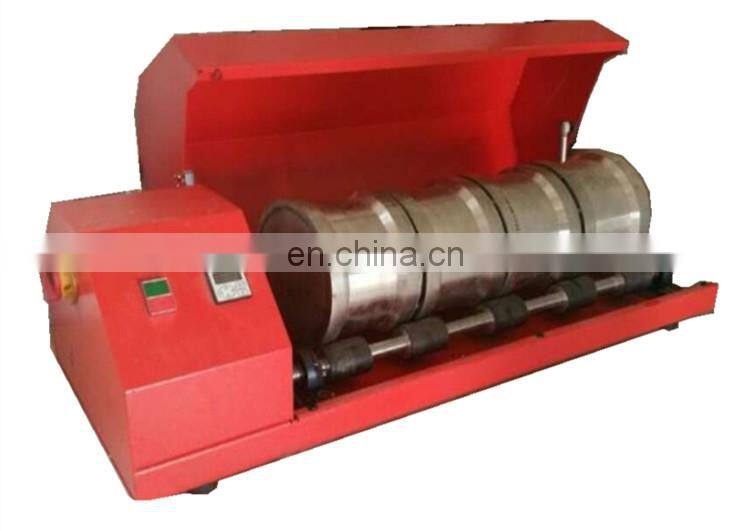

Deval Abrasion Testing Machine High Quality Diphar Abrasion Tester
Small MOQ:
we accept small quantity order to supports our cooperation.
Excellent quality with competitive price:
All our products are made in China and with competitive price.
OEM / ODM service:
We can offer OEM & ODM service.
Deval Abrasion Testing Machine High Quality Diphar Abrasion Tester
Standard: European/French standards
Deval Abrasion Testing Machine High Quality Diphar Abrasion Tester
Summary:
It consists of 4pieces hollow cylinder with end seals.
for particles 4 -14 mm , hollow cylinder inner diameter 200±1mm,lengh is 154±1mm
for particles 25 -50 mm,hollow cylinder inner diameter 400±2mm.
hollow cylinder material is stainless steel (Z 2 CN 18-10), thinkness >3mm.
They are mounted on two horizontal axes.Each cylinder can be tested one testing.
There cannot be any inconsistencies in the cylinder due to welding or fixation.
Close the cylinder with an 8 mm thick flat cover.Seal through the seam on the flat cover.
Abrasive is made of diameter 10±0.5mm stainless steel round ball bearing.
The steel ball passes through two parallel bars of spaced 9.5mm,
Or 10pcs used balls as a group, and balance the mass,,the mass must more than 34g.
Quickly check the ball diameter.Power is about 1KW. Cylinder speed 100±5 tr/min.
After testing,automatic interruption of engine operation.
Usage:
Diphar abrasion tester can measure the abrasion strength of stone.For some stones, this abrasion strength is different in dry and hydrated conditions.It is mainly used in the abrasion rate test of stone, namely, anti-friction and anti-impact, for the evaluation of aggregate quality
Technical parameters
1.1 Cylinder inner diameter:200mm±1mm/400±2mm.
1.2 Cylinder length:154±1mm
1.3 Counter:Five
1.4 Steel ball:12 pieces
1.5 Voltage:220V, power 1KW
1.6 Size:640×1200×350mm
1.7 Weight:150Kg
We can ship By EMS,TNT,DHL and others ( door to door)
We be 24 hours online,if you have any questions,kindly contact us freely.
