Product Details
Brand Name: | OBRK | Place of Origin: | Hebei, China | Model Number: | K-30 |
Usage: | Auto Testing Machine |
Product Description

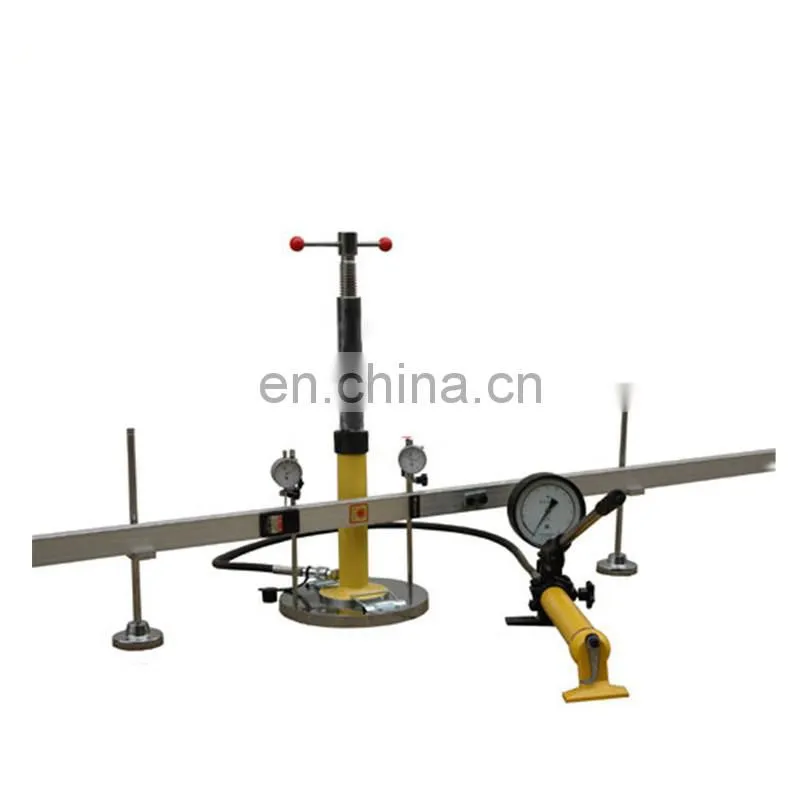

Plate Load Test/Soil field plate load plate bearing test apparatus
Product Name | Bearing Plate Test |
Load plate | 300mm |
Hydraulic jack max.load | 5T/10T/20T |
Hydraulic jack journey | 120mm |
Span | 3000mm |
Electric oil pump rated pressure | 70MPa |
Pressure range | 0-25MPa |
Displacement range | 0-10mm |
Use engine oil | number 15 engine oil |
Usetemperature environment | 5-45°C |
- The Bearing Plate Test is a field equipment for determining the ultimate bearing capacity of soil and the likely settlement under a given load. The Plate Load Tester applies a load on a steel plate placed at the foundation level and recording the settlements corresponding to each load increment.
- Packaging Details Deval Abrasion Testing Machine is standard export wooden case.
- Port any port in china/Deval Abrasion Testing Machine
- We can deliver by sea at any port in china, and Also can ship by air via express company (door to door),it is quick and safe.
- We can ship By EMS,TNT,DHL and others ( door to door)
1. Installation and training:
(1). If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
(2). Without visiting, we will send you user manual and video to teach you to install and operate.
(3). If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service:
(1).One year guarantee for whole machine.
(2).24 hours technical support by email or calling
(3).If there is any problem found of the machine, we will repair it for free in one year.
