XRF Fluorescence Spectrometer for RoHS and Alloy Testing

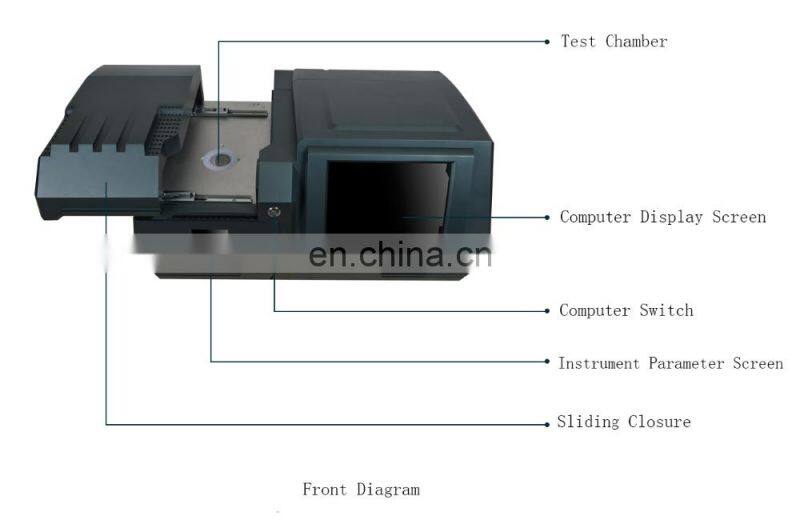

 Diagram & paramet of gold carat tester

 Description:

 The NEW advanced gold XRAY testing machine is the ultimate verification instrument for gold,silver,platinum and palladium testing. This state-of-the-art tester has exceptional precision and nondestructive .It is simple to use and in seconds provides accurate results showing both the digital karat value and percentages of all metals in the sample.

Function:

· Tests all colors of gold from 1% to 99.99% and silver,platinum and palladium

· Hand-tough display shows both karat value and all percentages do metals

· Three test modes: NAP8200/NAP9600/NAP9900

· Easy one-step calibration using pure silver

· Easy and safe to operate it(don’t need any professional person)

· All data could be stored in the computer

· Reports could be printed out with A4/A5 and label form

· Follow easy steps to identify non-gold, gold plate

· Powered by 100V-240V AC adaptor inside

 Competitive Advantages:

Radiation protection High Voltage protection X-ray Tube overheating protection Exactive tension wire and the auxiliary bracket                                                       Inbuilt industrial motherboard & multi-point hand touch High accuracy FCC,CE ,RoHS approved Spot results,fast and nondestructive Tests jewelry and metal samples of any size,shape or weight

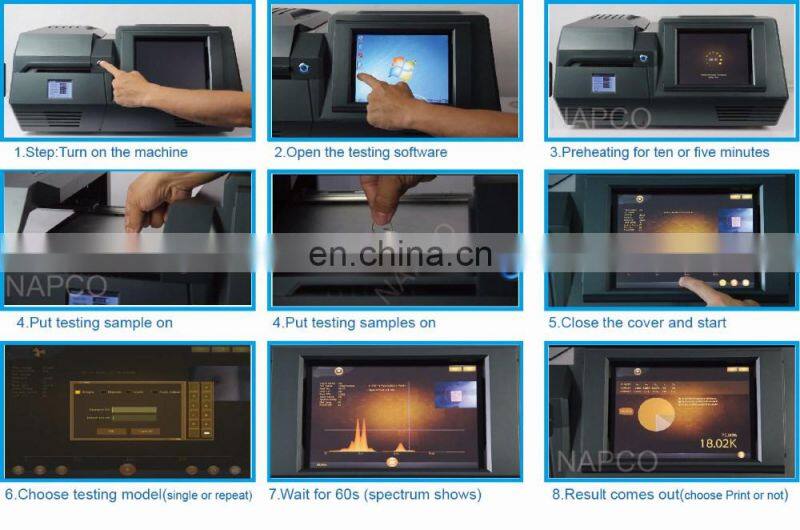

  How to set up the testing machine:

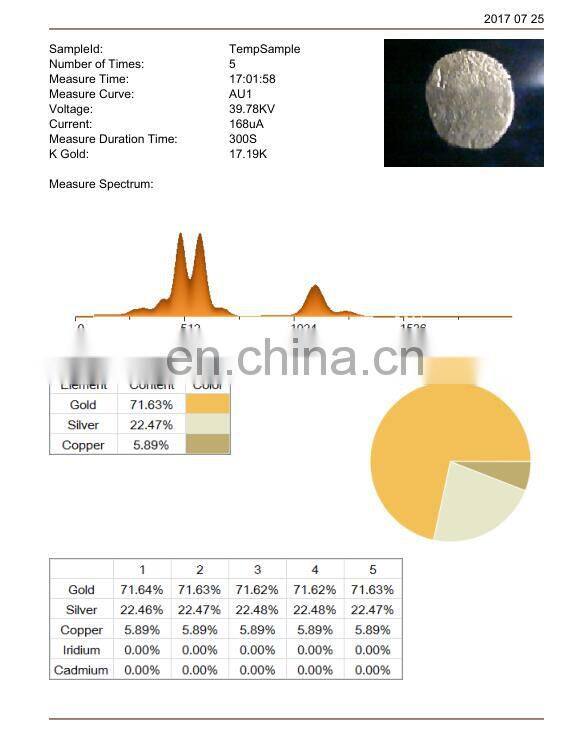

Report could be printed out with A4 ,A5 and label form .

♦ Company name,address and phone number could be edited by users.

            ♦ Pie analysis for quick understanding

                        ♦ Display result in Karat

                                  ♦ Multiple elements results in percentage

                                                                                 One Year Warranty :

 Details:

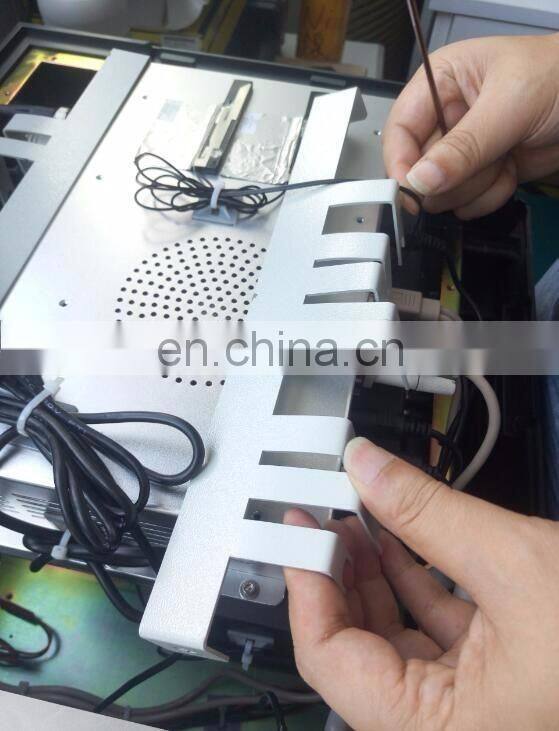

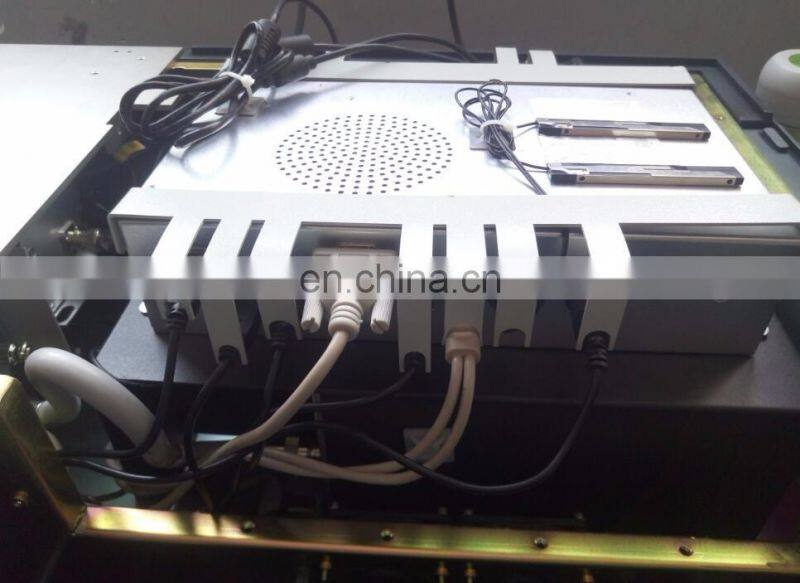

Even screw holders are used to make machine stable during shipping.

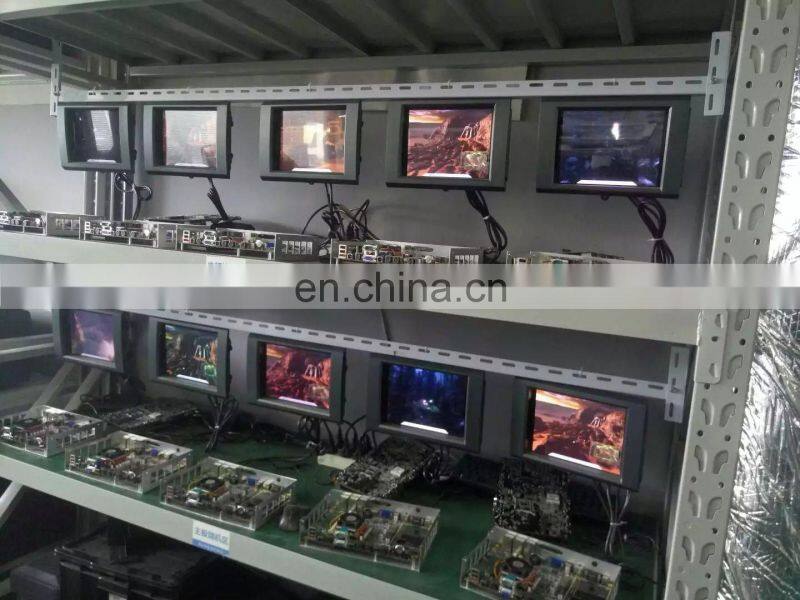

Here are the testing area of mainboard and screen.All parts should be tested for 72 hours before assemblied.
