Help CenterPrecious Metal Recycling Tools Used in Pawn Shop or Jewelery Manufacturers NAP (NAP9600)
Related Products
-
High Quality Goldsmith Machinery (NAP9600) Laboratory EquipmentUS$ 9,999 - 10,999MOQ: 1 Set -
2016 the Price for Hot Selling Xrf Metal Analyzer Xrf Gold AnalyzerUS$ 5,500 - 13,500MOQ: 1 Set
-
Hot Selling Industrial Xrf Metal AnalyzerUS$ 9,999 - 9,999MOQ: 1 Set
-
Precious Metals Analysis Price: Made Easy With XRF AnalyzersUS$ 4,999 - 4,999MOQ: 1 Set
-
Gold Assay Equipment - Accurate Gold Test,gold Content TesterUS$ 4,999 - 4,999MOQ: 1 Set

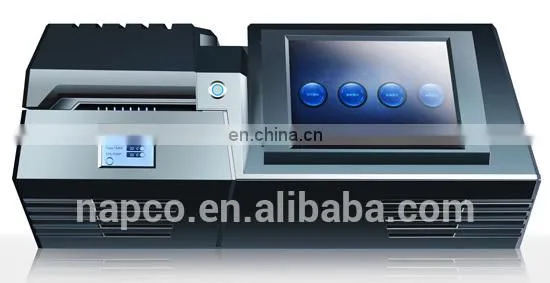

NAP9600 diagram¶met
Working priciple | Energy dipersive X-ray fluorescence |
|---|---|

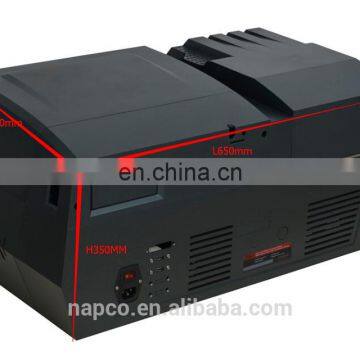

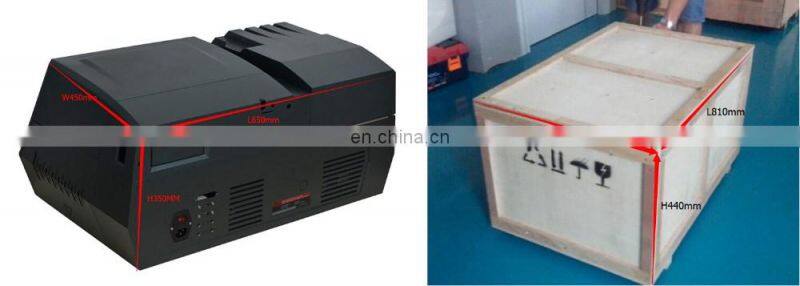

| Size/weight | 650*450*350mm/29±0.5Kg |
| Voltage | 110v-220v |
| Power | 144W |
| Detector | Si-pin 145Kev±5. (made in USA) |
| Elements | Fe, Co, Ni, Cu, Zn, Se, Pd, Rh, Ru, Ag,Au, Pt, Ir, Pb and etc(18 elements) |
| Detection limit | 100ppm |
| Precise | 0.01%-0.1% |
| Testing time | 30-60S(could be set) |

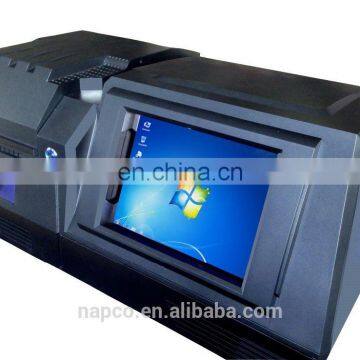

Operation system | CPU | Memory(RAM) | Hard disk | System type | Pen and Touch |
|---|---|---|---|---|---|
Win 7 | 1.60GHz | 2.00GB | 60 GB | 32-bit Operating System | Touch Input Available |

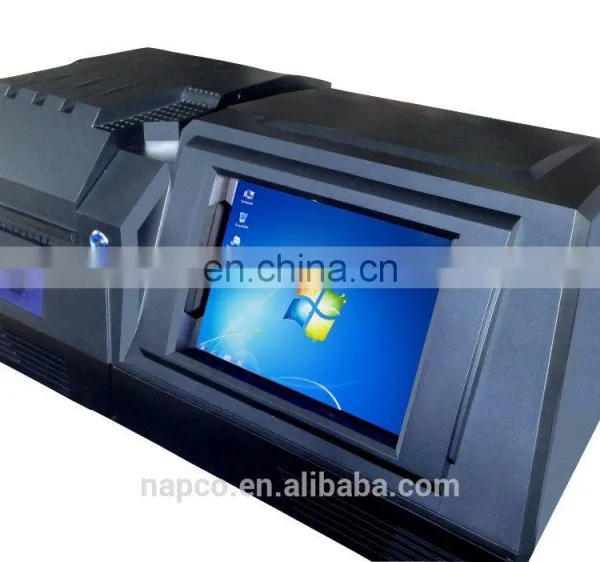

NAP9600 Sides
Description
| This gold tester is integrated an industrial computer with industrial motherboard & multi-point hand touch. Providing best operation experience. It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection.Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability. Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely. |
Competitive Advantage
| |
Carry with 1 year warranty
How to set up the NAP9600
. Ⅰ .
. Ⅱ .
| . Test mode: Single test, Repeat test, Multi-point test, Peak adjustment. . Curve Name: The name of template which is automatically selected fotesting and calculating. . Spectrum name: The name of spectrum which is testing or opening. . Test Voltage: Real-time voltage output to X-ray tube from HV. . Test current: Real-time current output to X-ray tube from HV. . Test CPS: The effective pulse count of the detector output per second. . Tube Temperature: Current temperature of X-ray tube. . System Temperature: Current temperature of instrument. . Test Time: Test duration of each test. |
Our guarantee
Certificate
We attended
Applications
Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.
Hot name: Gold Tester / gold scanner detector / best metal detector / gold tester / gold karat tester / spectrometer / metal spectrometer / xrf metal analyzer / precious metal analyzer / metal analyzer spectrometer / gold purity testing machine |
