Cheap Intelligent Carbon Silicon Analyzer
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinyibo | Place of Origin | Jiangsu, China |
Product Description

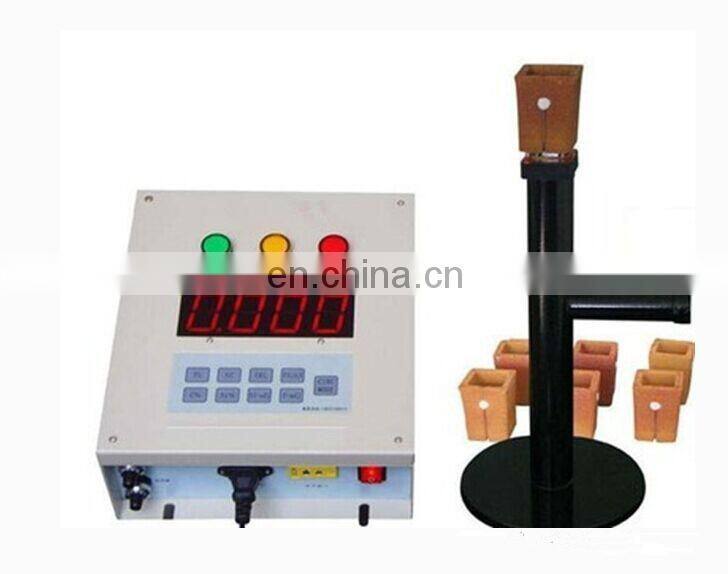

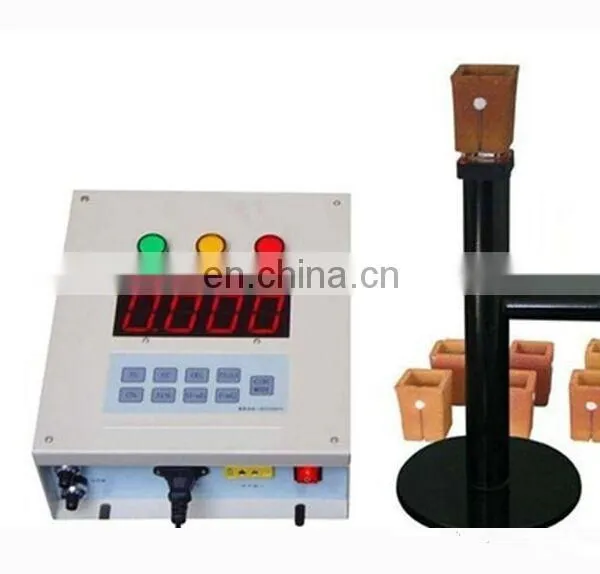

CSI3000 Casting Furnace Front Carbon&Silicon Analyzer
Application:
It is used to quickly determine the CE% (carbon equivalent), C% (carbon amount), Si% (silicon amount), Mn% (manganese amount) and other technical parameters of cast iron raw iron. The instrument is easy to operate, automatically calculates the excess shortage, and stores the input amount data and 17-inch large screen display. The screen automatically displays the analysis data; the external operation mouse; USB data interface, data storage, database query and output functions.
Features:
1. It can measure data and store it automatically. It can be called whenever needed.
2. It can browse the curve trend graph of CE, C%, Si%, Mn% stored beforehand for easy analysis.
3. It can automatically calculate the material shortage according to the measured component content, the set amount of molten iron, the target component and the retention rate of the material, so that it can be quickly adjusted in front of the furnace.
4. It has input/output and communication functions to communicate with a computer.
5. It can set up 8 different test lines to suit different kinds of applications and has the characteristics of accurate, reliable and wide measurement range.
6. It can quickly determine the carbon equivalent of cast iron raw iron CE%, carbon content C%, silicon content Si%, manganese content Mn%.
7. It has high measurement accuracy, good stability and C% accuracy within 0.05%, and Si% accuracy within 0.1%.
8. It has the functions of spheroidization rate, creep rate determination, tensile strength and hardness determination.
9. It has a fast measuring speed and no more than 3 minutes of measurement time, which is convenient for pre-furnace component adjustment.
10. Its cooling curve and measurement data CE, C%, Si%, TL, TE can be displayed simultaneously.
Parameter
Instrument specifications | ||
Host computer | Brand industrial computer | |
Operating temperature | 0~40℃ | |
Monitor | 15 inch TFT color display | |
Working relative humidity | <80% | |
Suitable power supply | AC220V 50Hz | |
Power consumption | 40W | |
Dimensions | 410×450×280mm | |
The main function | ||
Measurement function | Carbon equivalent, carbon content, silicon content, niobium content, spheroidization rate, ensile strength , Brinell hardness
| |
Calculation function | It can adjust the component addition amount automatically / manually | |
Data saving function | It can record data according to the measured time, and can record more than 1000 measurements. | |
Data output function | It is available with a USB or RJ45 connector. And can be other computer transfer output data | |
History reproduction function | Historical measurement data, cooling curve reproduction | |
Measuring range and accuracy | ||
Name | Measurement range | Measurement accuracy |
CEL | 2.50%~4.80% | ±0.08% |
C% | 2.30%~4.20% | ±0.05% |
Si% | 0.60%~3.80% | ±0.10% |
Mn% | 010%~1.40% | ±0.15% |
Spheroidization rate | 60%~99% | ±5% |
